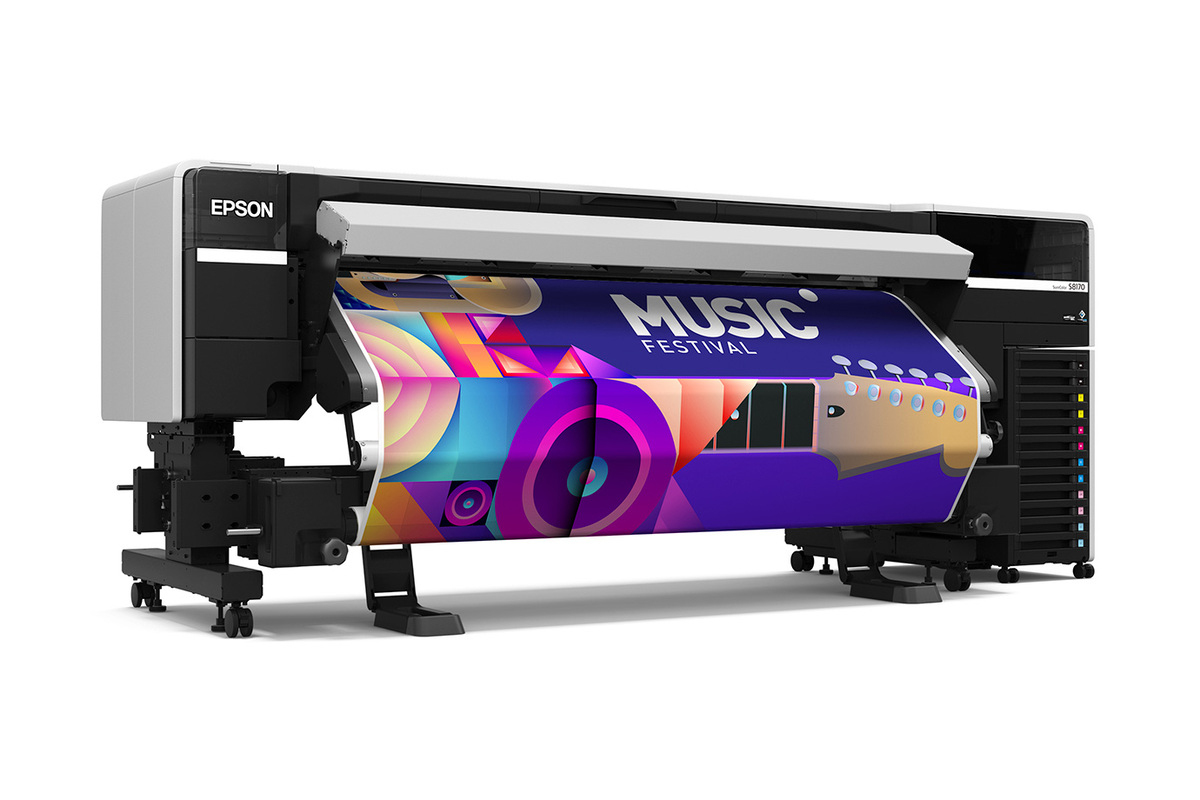

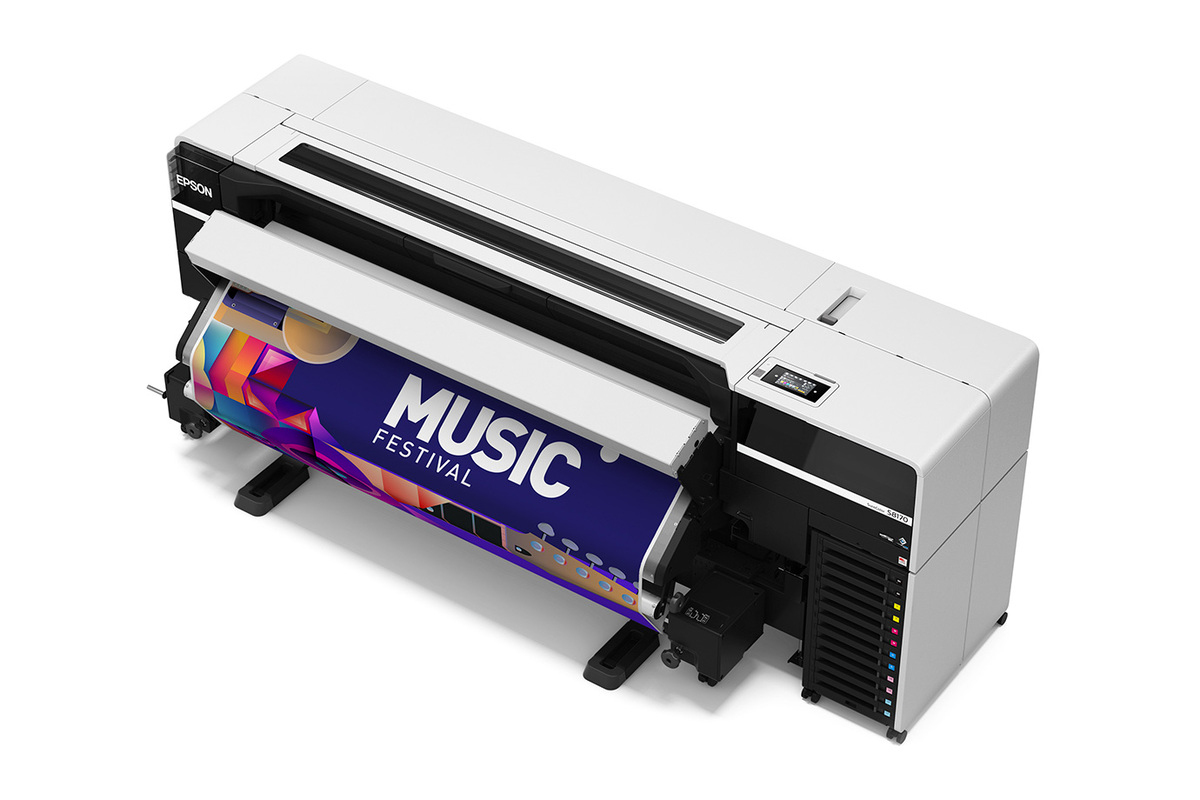

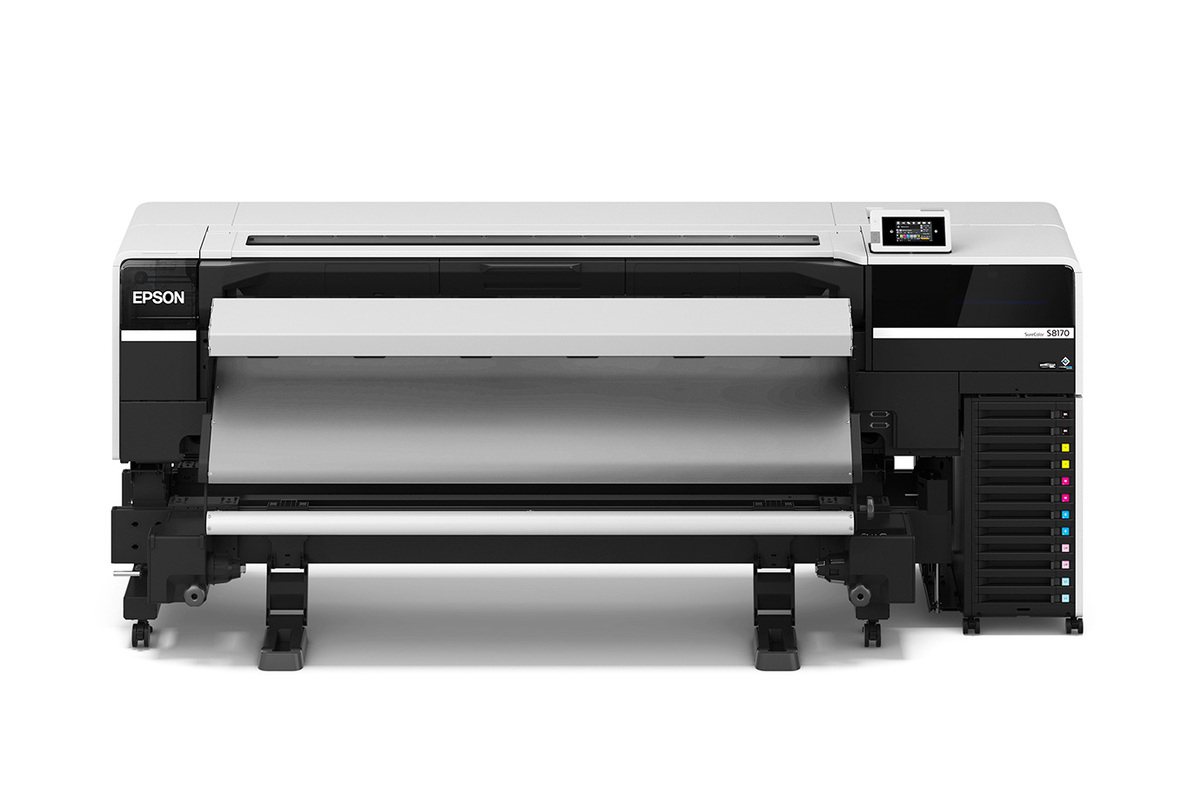

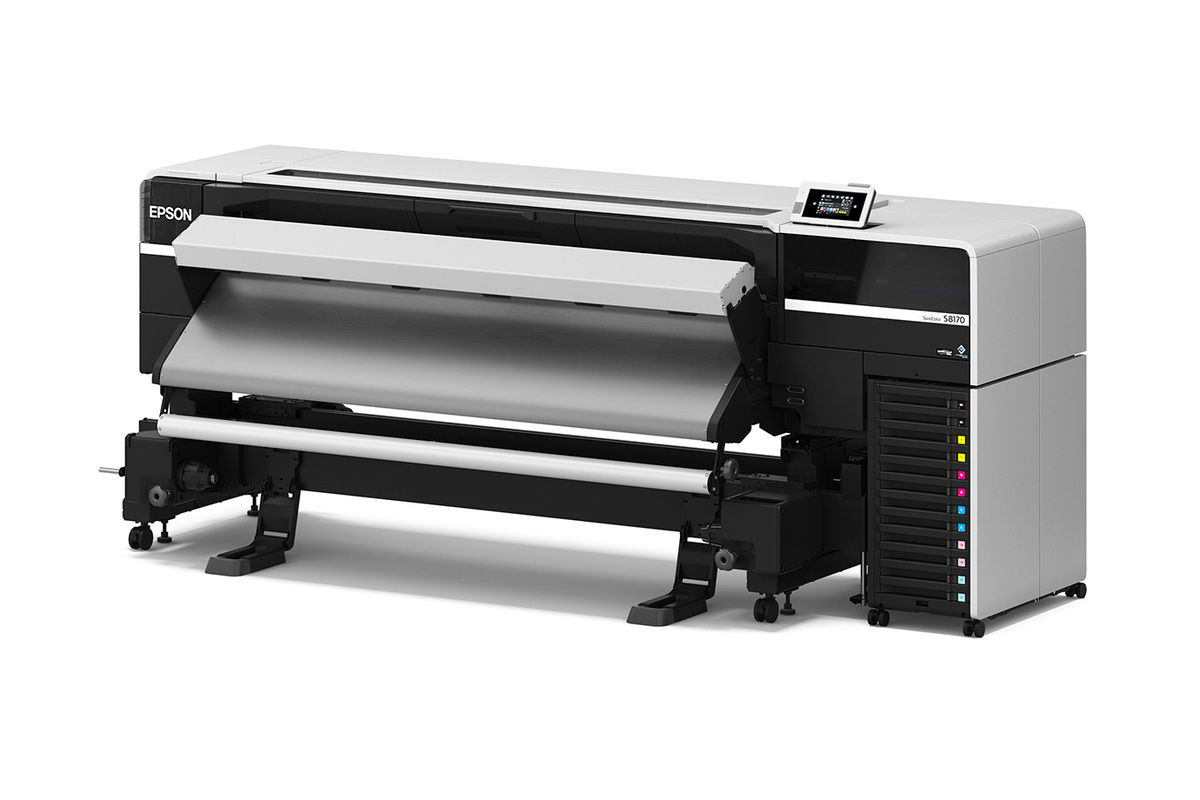

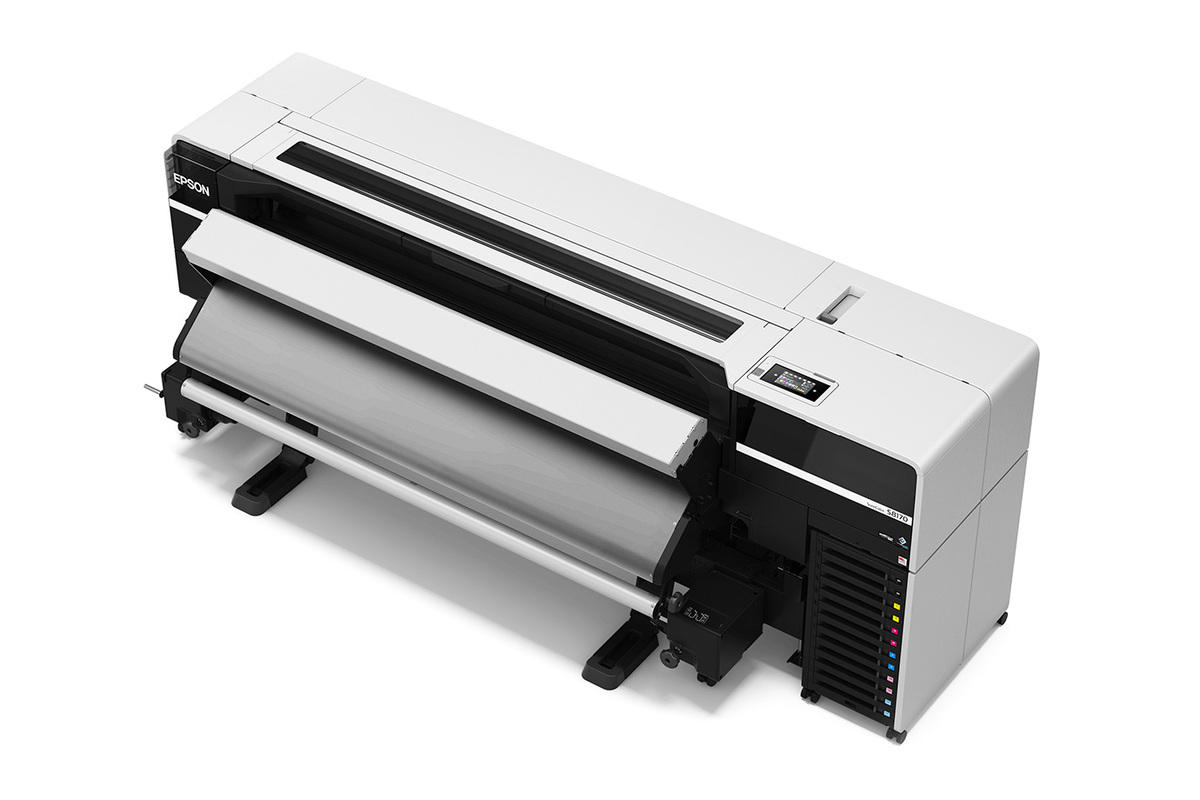

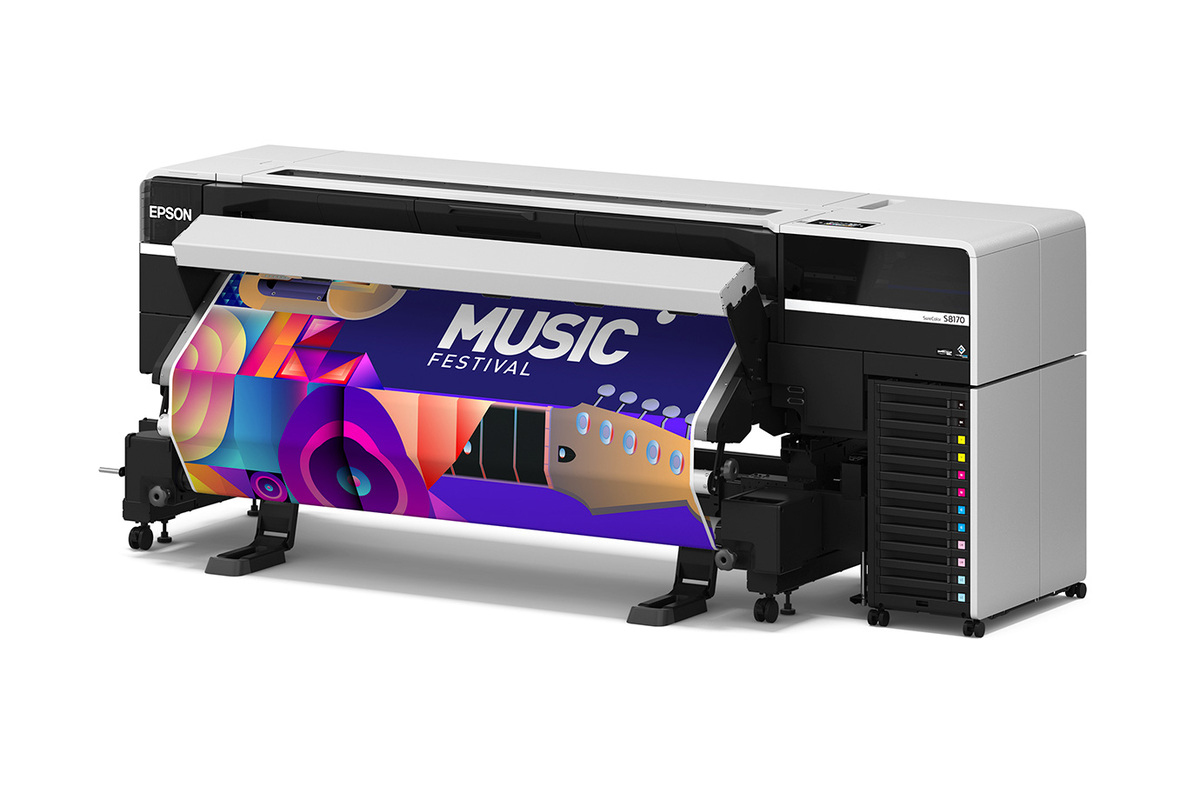

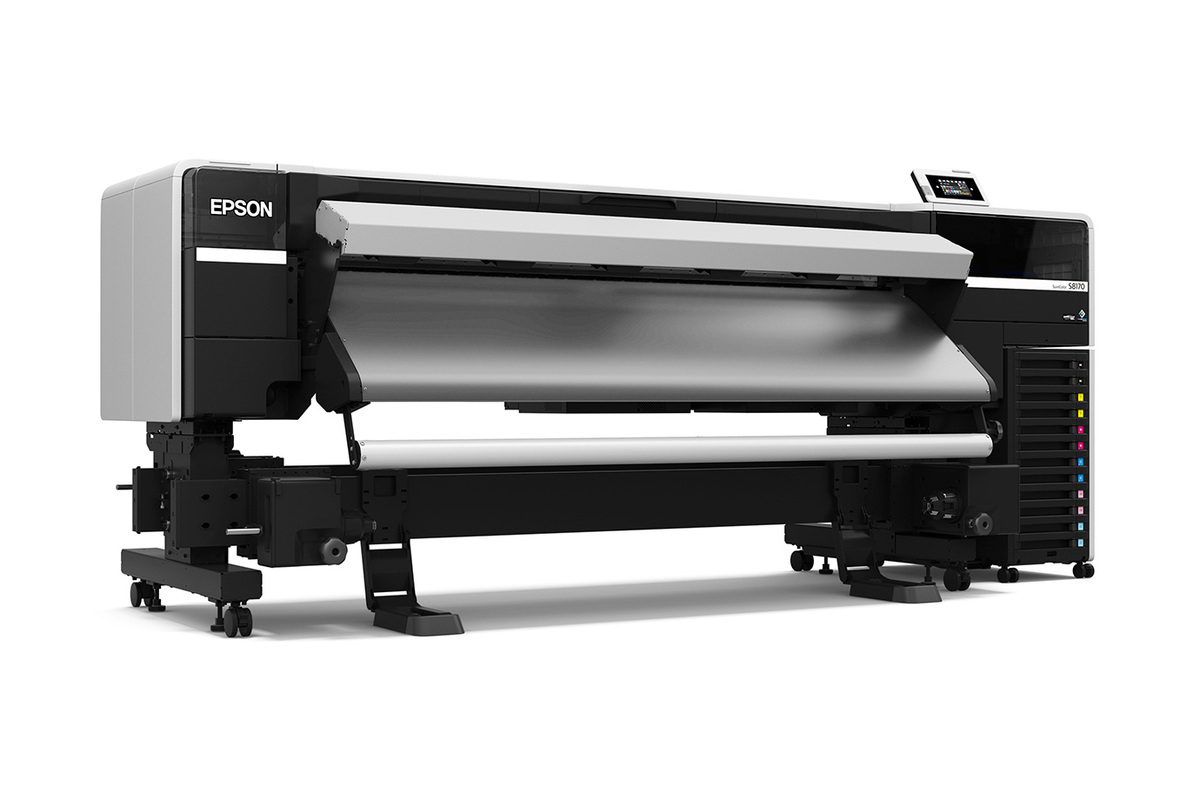

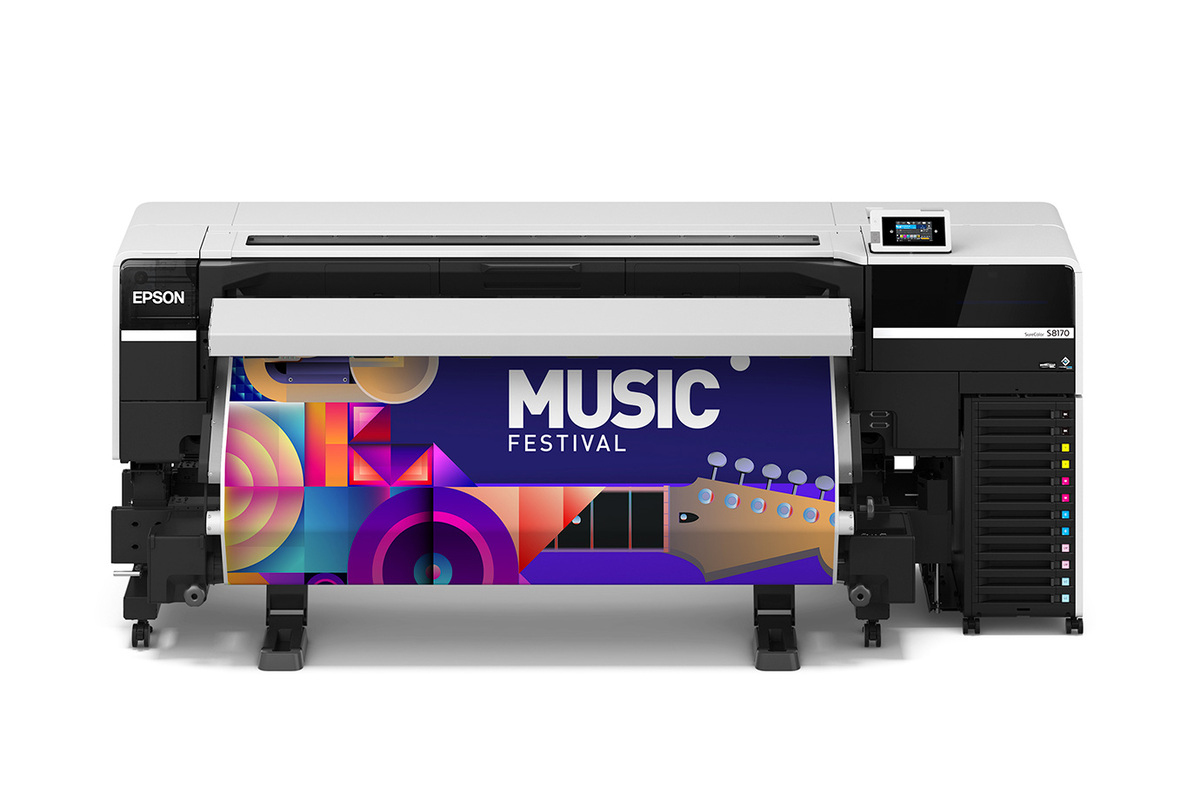

S8170 large format printer Inkjet Colour
1200 x 1200 DPI Ethernet LAN
Model S8170Part no. SCS8170PEEAN 198390009304
42 specifications
- Display10.9 cm (4.3")
- Memory4000 MB
- Weight34 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 4000 MB
- Weight
- 34 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Epson
- Category
- Large Format Printer
- Model
- S8170
- Part number
- SCS8170PE
- EAN / UPC
- 198390009304
- Also known as
- Epson S8170 large format printer Inkjet Colour 1200 x 1200 DPI Ethernet LAN
Specifications
42 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | ESC P |
| Printing colours | Cyan, Magenta, Yellow, Black, Light Cyan, Light magenta |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Roll, Banner |
| Cut sheets | Yes |
| Maximum roll width | 16.3 cm |
| Maximum roll diameter | 25 cm |
| Roll weight (rear roll) | 45 kg |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | White, Black |

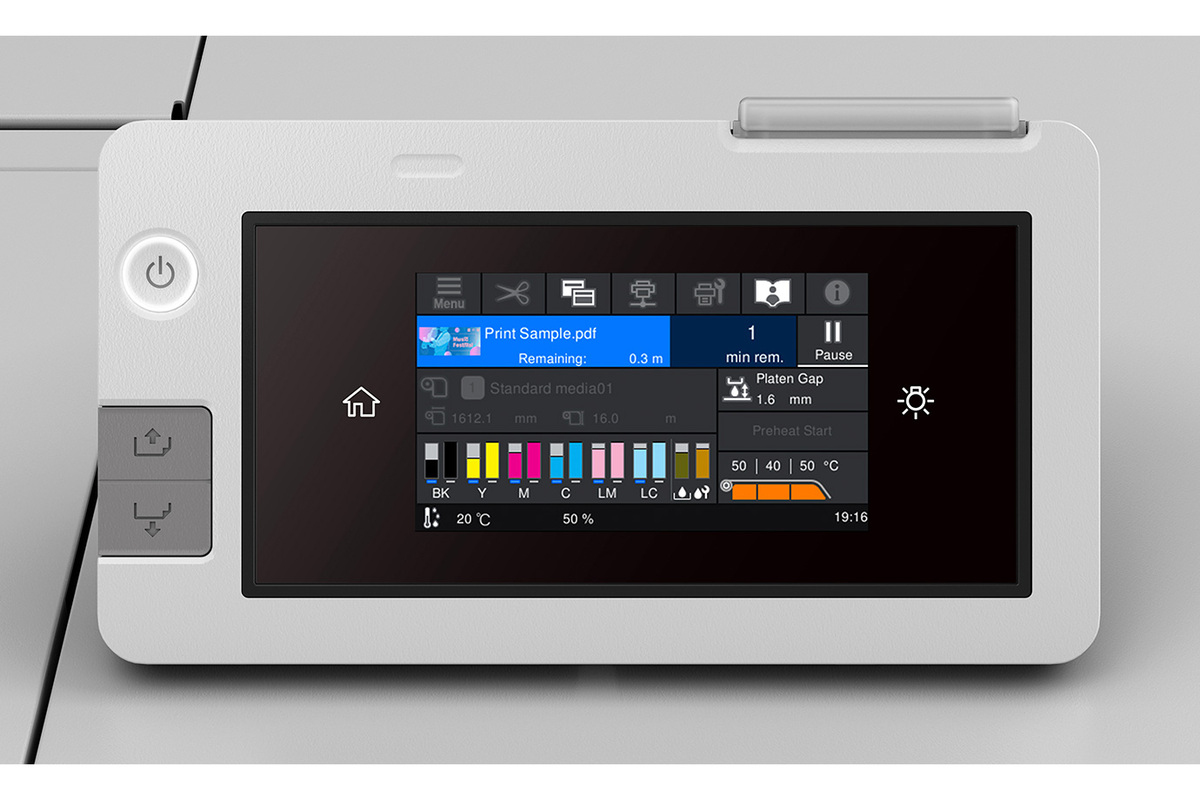

| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal memory | 4000 MB |
| Built-in processor | Yes |
| Sound pressure level (printing) | 60.5 dB |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 3.4 W |
| Power consumption (typical) | 1350 W |
| AC input voltage | 100 - 120/200 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 20 - 32 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Windows operating systems supported | Windows 8.1 Enterprise x64, Windows 10, Windows 11 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 2620 mm |
| Depth | 1000 mm |
| Height | 1020 mm |
| Weight | 34 kg |
