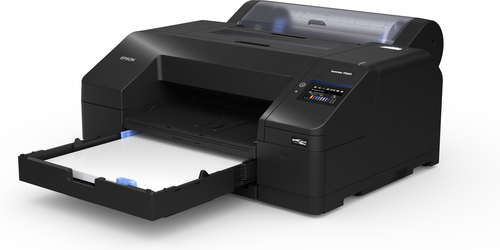

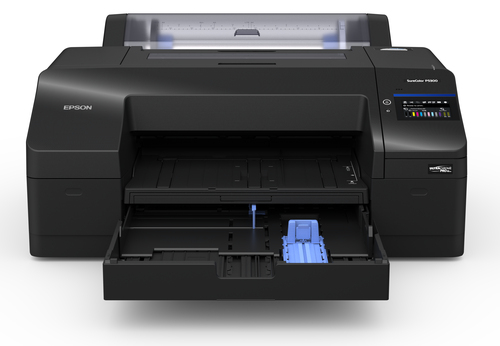

SureColor P5300
Model P5300Part no. C11CL14301A1EAN 8715946717647
66 specifications
- Display10.9 cm (4.29")
- Memory256 MB
- Weight52 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Display
- 10.9 cm (4.29")
- Memory
- 256 MB
- Weight
- 52 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Epson
- Category
- Large Format Printer
- Model
- P5300
- Part number
- C11CL14301A1
- EAN / UPC
- 8715946717647
- Also known as
- Epson SureColor P5300
Specifications
66 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 5760 x 1440 DPI |

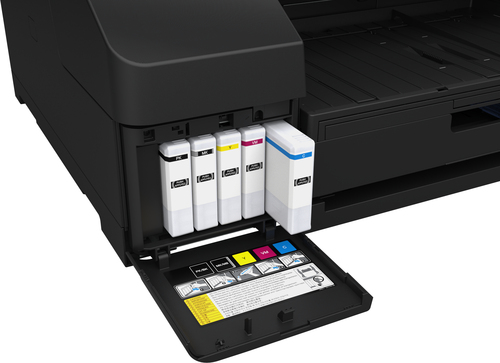

| Number of print cartridges | 10 |
| Printing colours | Photo black, Matte black, Light Cyan, Light grey, Vivid light magenta, Vivid magenta, Violet, Grey, Yellow, Cyan |
| Borderless printing | Yes |
| Print head | Epson Micro PiezoTM print head |
| Print head nozzles | 180 Nozzles Black, 180 Nozzles per Color |
| Colour printing technology | Ultrachrome® Pro10 |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 250 sheets |
| Maximum input capacity | 250 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A2 (420 x 594 mm) |
| Paper tray media types | Roll |
| ISO A-series sizes (A0...A9) | A2, A3+, A3, A4 |
| Borderless printing media sizes | Letter |
| Cut sheets | Yes |
| Media thickness | 1.5 mm |
| Roll top margin | 3 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi Direct | Yes |
| Mobile printing technologies | Epson Cloud Solution PORT |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Colour display | Yes |
| Display diagonal | 10.9 cm (4.29") |
| Control type | Touch |
| Internal memory | 256 MB |
| Sound pressure level (printing) | 47 dB |
| Country of origin | Indonesia |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power supply | 52 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS X 10.9.5 or later, Windows 10 (32/64 bit), Windows 11, Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2 |
| Mac operating systems supported | Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 863 mm |
| Depth | 766 mm |
| Height | 406 mm |
| Weight | 52 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 910 mm |
| Package depth | 1010 mm |
| Package height | 590 mm |
| Package weight | 65.1 kg |
Other features
| Specification | Value |
|---|---|
| Ink drop | 1.5 pl, With Variable-Sized Droplet Technology |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 192 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 192 cm |
| Pallet length (UK) | 120 cm |
| Products per pallet | 1 pc(s) |
| Products per pallet (UK) | 3 pc(s) |
| Products per pallet layer | 1 pc(s) |
| Products per pallet layer (UK) | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | AC cable, Cleaning Sheets, Document Pack, Individual Ink Cartridges, Ink Maintenance Tank (installed), Instructions, Printer, Quick Setup Guide, Spindle Unit(s) |
| Ink tank capacity | 200 ml |
| Power consumption | 52 Watt, 5 Watt (economy), 0.5 Watt (standby) |
