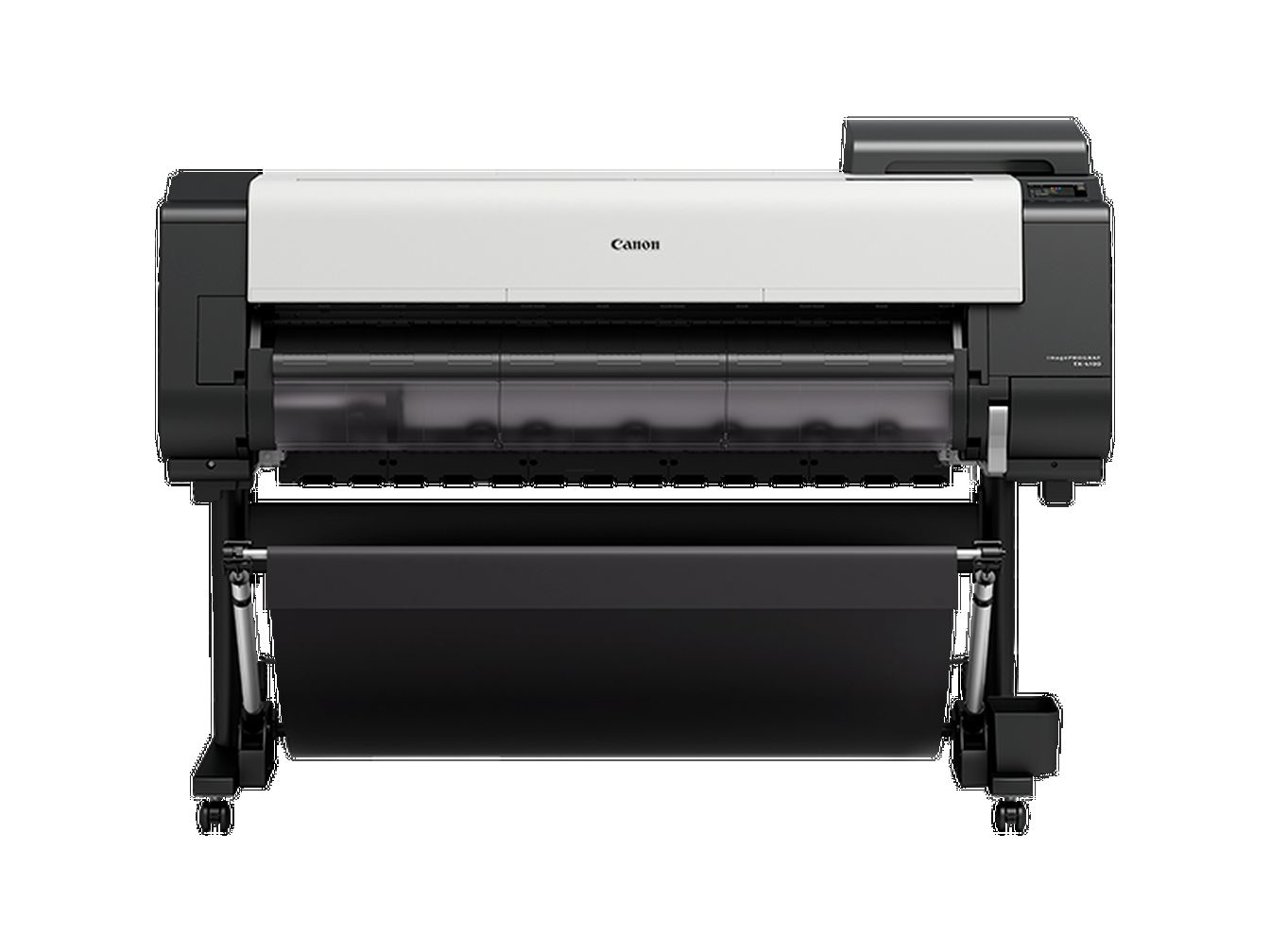

imagePROGRAF TX-4100 large format printer Wi-Fi Inkjet Colour
2400 x 1200 DPI B0 (1000 x 1414 mm) Ethernet LAN
Model TX-4100Part no. 4602C003EAN 4549292184136
48 specifications
- Storage500 GB
- Weight114 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
- Maximum print sizeB0 (1000 x 1414 mm)
Overview
- Storage
- 500 GB
- Weight
- 114 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Maximum print size
- B0 (1000 x 1414 mm)
- Brand
- Canon
- Category
- Large Format Printer
- Model
- TX-4100
- Part number
- 4602C003
- EAN / UPC
- 4549292184136
- Also known as
- Canon imagePROGRAF TX-4100 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI B0 (1000 x 1414 mm) Ethernet LAN
Specifications
48 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 5 |
| Page description languages | HP-GL/2, HP-RTL, JPEG, PDF 1.7 |
| Printing colours | Black, Cyan, Magenta, Matte black, Yellow |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | B0 (1000 x 1414 mm) |
| Paper tray media types | Cut sheet, Roll |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll width | 111.8 cm |
| Maximum roll diameter | 17 cm |
| Print margin cut-sheet | 203.2 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | No |
| Control type | Buttons |
| Internal storage capacity | 500 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 51 dB |
| Certification | TUV, CB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 116 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1593 mm |
| Depth | 984 mm |
| Height | 1168 mm |
| Weight | 114 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1820 mm |
| Package depth | 915 mm |
| Package height | 1061 mm |
| Package weight | 191 kg |
| Cartridge(s) included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
