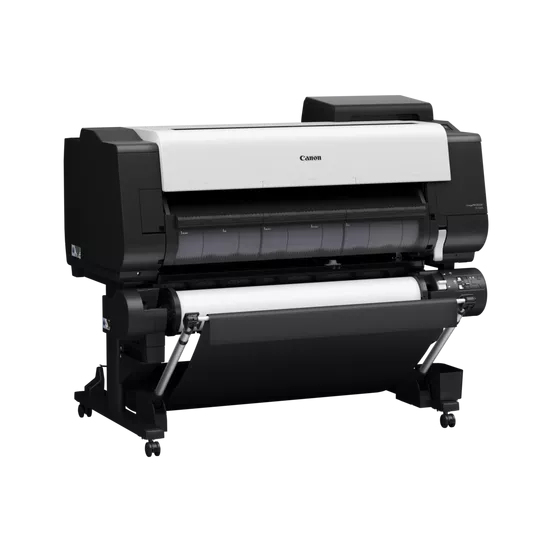

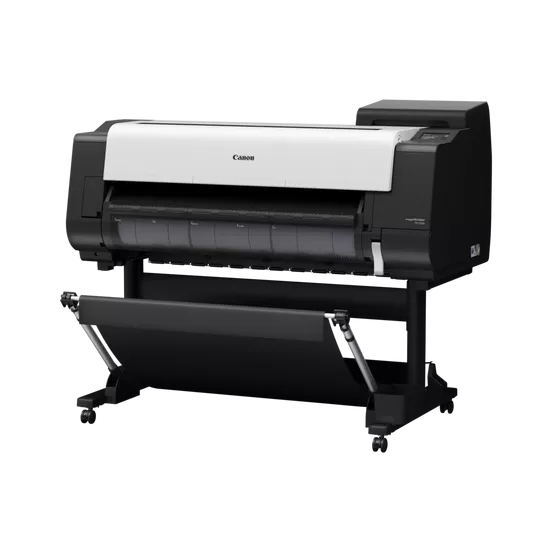

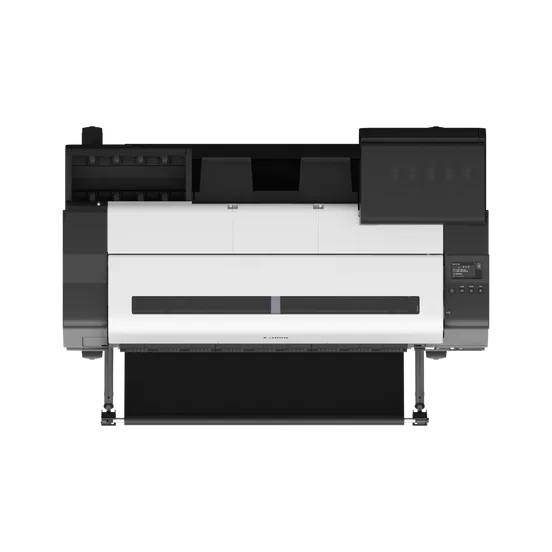

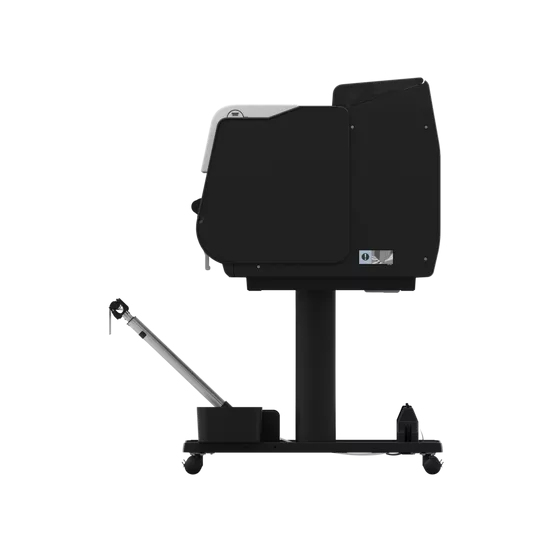

imagePROGRAF TX-3200 large format printer Bubblejet Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model TX-3200Part no. 6854C003EAN 4549292241051
44 specifications
- Memory2000 MB
- Storage128 GB
- Weight103 kg
- ColourYes
- Print technologyBubblejet
- Maximum print sizeA0 (841 x 1189 mm)
Overview
- Memory
- 2000 MB
- Storage
- 128 GB
- Weight
- 103 kg
- Colour
- Yes
- Print technology
- Bubblejet
- Maximum print size
- A0 (841 x 1189 mm)
- Brand
- Canon
- Category
- Large Format Printer
- Model
- TX-3200
- Part number
- 6854C003
- EAN / UPC
- 4549292241051
- Also known as
- Canon imagePROGRAF TX-3200 large format printer Bubblejet Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
44 specifications in 8 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Bubblejet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 5 |
| Page description languages | CALS G4, HP-GL/2, HP-RTL, JPEG, PDF 1.7 |
| Printing colours | Black, Cyan, Magenta, Matte black, Yellow |
| Borderless printing | Yes |
| Print head | PF-06 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Plain paper, Roll |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A3+ |
| ISO B-series sizes (B0...B9) | B1 |
| Borderless printing media sizes | A0, A1, A2, A3, A3+, B4 |
| Cut sheets | Yes |
| Stacker | Yes |
| Media thickness | 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll width | 91.7 cm |
| Maximum roll diameter | 17 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Direct printing | Yes |
| Supported network protocols | IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T), IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP) |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Internal memory | 2000 MB |
| Internal storage capacity | 128 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 51 dB |
| Certification | CB certfication, EPEAT GOLD |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.1 W |
| Power consumption (sleep) | 2.2 W |
| Power consumption (typical) | 86 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1390 mm |
| Depth | 984 mm |
| Height | 1168 mm |
| Weight | 103 kg |
