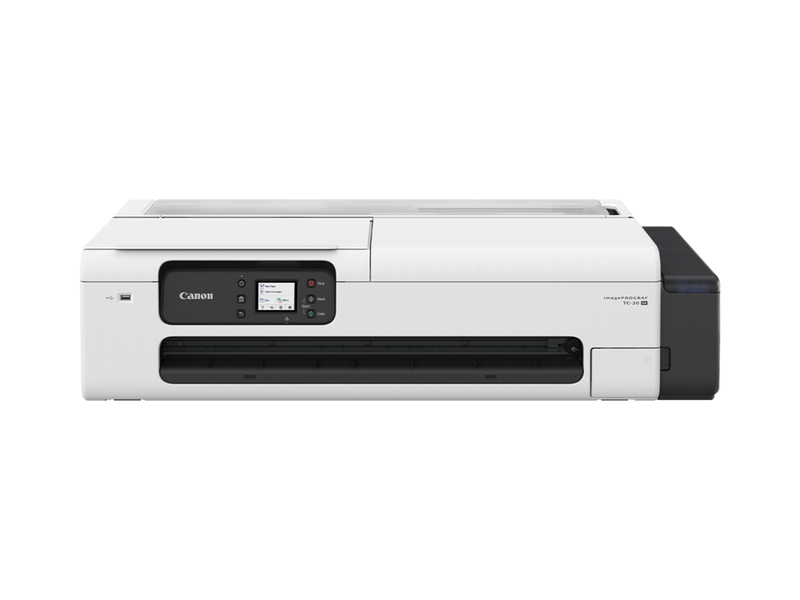

imagePROGRAF TC-20M large format printer Inkjet Colour
2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Model TC-20MPart no. 5816C003EAN 013803351774
30 specifications
- Storage1 GB
- Weight33 kg
- ColourYes
- Print technologyInkjet
- ScanningColour scanning
- Maximum print sizeA1 (594 x 841 mm)
Overview
- Storage
- 1 GB
- Weight
- 33 kg
- Colour
- Yes
- Print technology
- Inkjet
- Scanning
- Colour scanning
- Maximum print size
- A1 (594 x 841 mm)
- Brand
- Canon
- Category
- Large Format Printer
- Model
- TC-20M
- Part numbers
- 5816C003, TC-20M, 5816C002
- EAN / UPC
- 013803351774, 4549292207194, 4549292207200
- Also known as
- Canon imagePROGRAF TC-20M large format printer Inkjet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
30 specifications in 8 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | JPEG, PDF |
| Printing colours | Black, Cyan, Magenta, Yellow |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Maximum scan resolution | 1200 x 2400 DPI |
| Scan technology | CIS |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Coated paper, Plain paper, Roll |
| Cut sheets | Yes |
| Media thickness | 0.08 - 0.28 mm |
| Maximum roll diameter | 11 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Direct printing | Yes |
| Mobile printing technologies | Apple AirPrint, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Internal storage capacity | 1 GB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 2.4 W |
| Power consumption (typical) | 28 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 968 mm |
| Depth | 545 mm |
| Height | 395 mm |
| Weight | 33 kg |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model K10560 · certified Nov 2, 2022 · United States, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.63 W |
| Standby power | 0.25 W |
