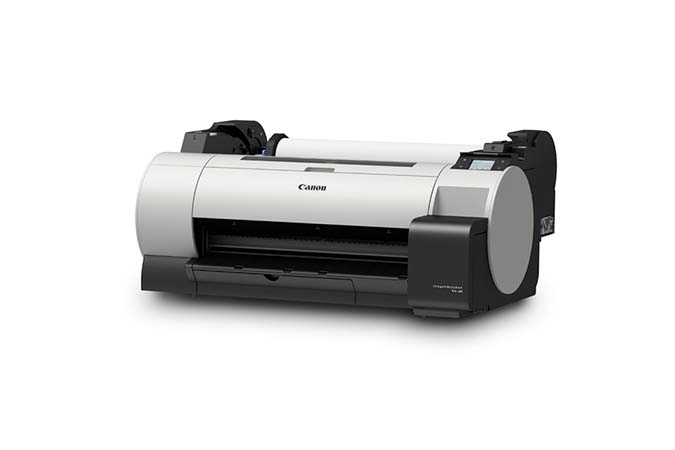

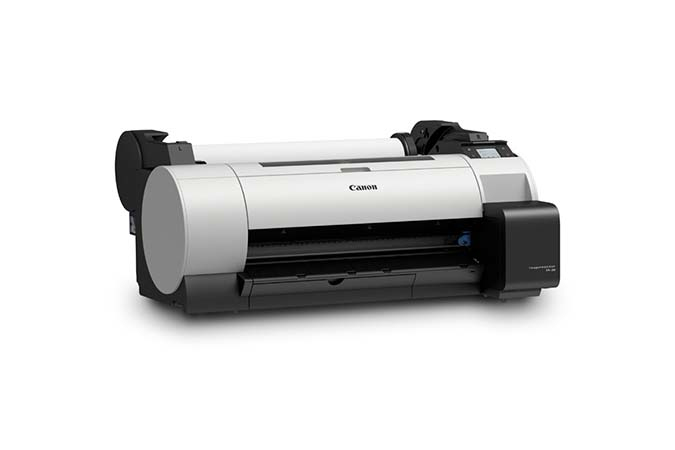

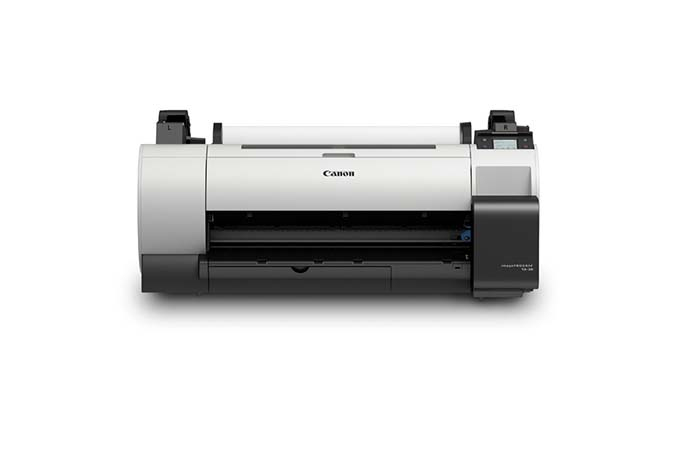

imagePROGRAF TA-20 large format printer Wi-Fi Inkjet Colour
2400 x 1200 DPI Ethernet LAN
Model TA-20Part no. BDL_TA20_DSTEAN 013803318166
50 specifications
- Memory2048 MB
- Weight37 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
- Paper tray media typesRoll
Overview
- Memory
- 2048 MB
- Weight
- 37 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Paper tray media types
- Roll
- Brand
- Canon
- Category
- Large Format Printer
- Model
- TA-20
- Part numbers
- BDL_TA20_DST, 3689V166, 3659C002, 3659C003
- EAN / UPC
- 013803318166, 4549292141962, 4549292141979
- Also known as
- Canon imagePROGRAF TA-20 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI Ethernet LAN
Specifications
50 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 5 |
| Page description languages | HP-GL/2, HP-RTL, JPEG |
| Printing colours | Black, Cyan, Magenta, Pigment matte black, Yellow |
| Borderless printing | Yes |
| Print head | PF-06 |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Roll |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll width | 61 cm |
| Print margin cut-sheet | 210 - 431.8 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Built-in display | No |
| Internal memory | 2048 MB |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 42 dB |
| Certification | C TUVus, FCC Part 15B, FCC Part 15C |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 3.6 W |
| Power consumption (typical) | 52 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 982 mm |
| Depth | 748 mm |
| Height | 438 mm |
| Weight | 37 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1147 mm |
| Package depth | 874 mm |
| Package height | 542 mm |
| Package weight | 49 kg |
| Cartridge(s) included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
