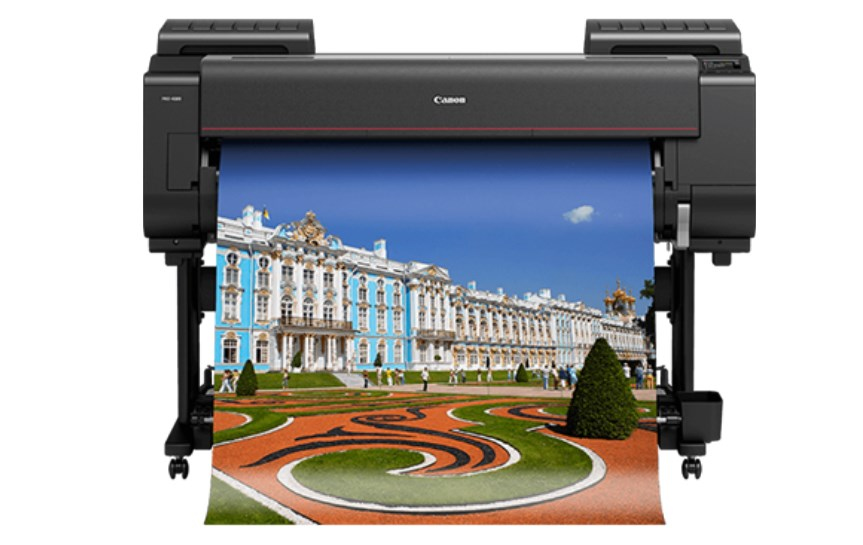

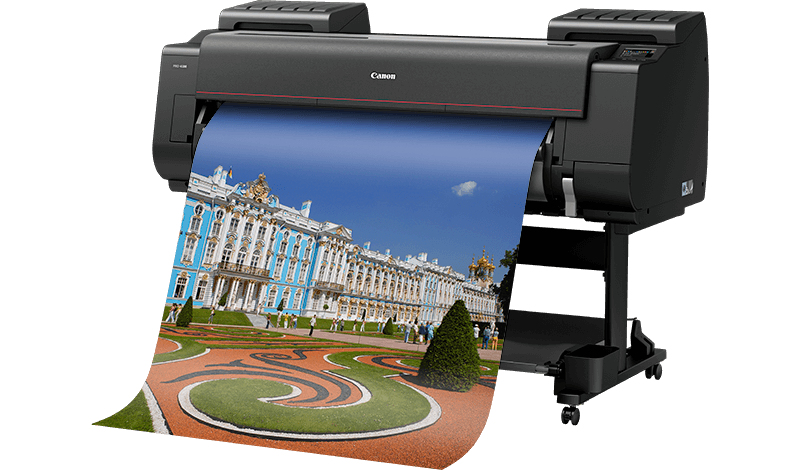

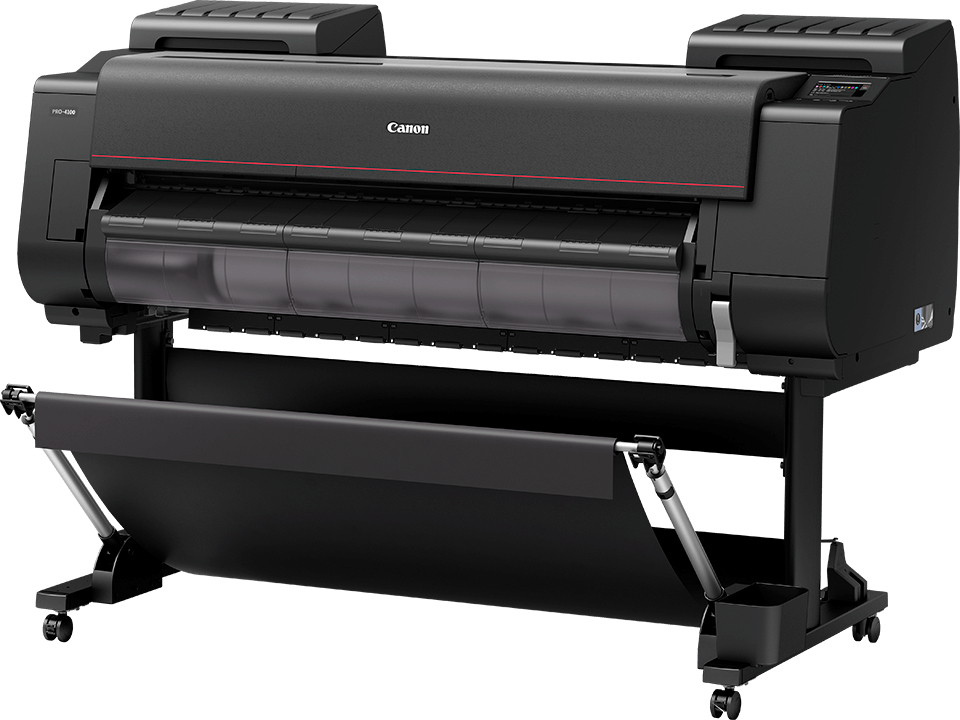

imagePROGRAF PRO-4100 large format printer Wi-Fi Inkjet Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model PRO-4100Part no. 3869C003EAN 4549292147339
50 specifications
- Memory3 GB
- Storage500 GB
- Weight177 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Memory
- 3 GB
- Storage
- 500 GB
- Weight
- 177 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Canon
- Category
- Large Format Printer
- Model
- PRO-4100
- Part numbers
- 3869C003, 3869C002
- EAN / UPC
- 4549292147339, 013803320909
- Also known as
- Canon imagePROGRAF PRO-4100 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
50 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 1 |
| Borderless printing | Yes |
| Print head | PF-10 |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A3+ |
| ISO B-series sizes (B0...B9) | B0, B1, B2, B4 |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll diameter | 17 cm |
| Media width (rolls) | 152,4 - 1118 mm |
| Media width (sheets) | 152,4 - 1118 mm |
| Roll top margin | 3 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal storage capacity | 500 GB |
| Storage media | HDD |
| Sound pressure level (quiet mode) | 35 dB |
| Sound pressure level (printing) | 48 dB |
| RAM capacity | 3 GB |
| Certification | TUV, CB, CE, EAC |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 107 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1820 mm |
| Depth | 915 mm |
| Height | 1042 mm |
| Weight | 177 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1593 mm |
| Package depth | 984 mm |
| Package height | 1168 mm |
| Package weight | 145 kg |
| Drivers included | Yes |
| Bundled software | imagePROGRAF Printer Driver, Professional Print & Layout,† Free Layout Plus, PosterArtist Lite |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
