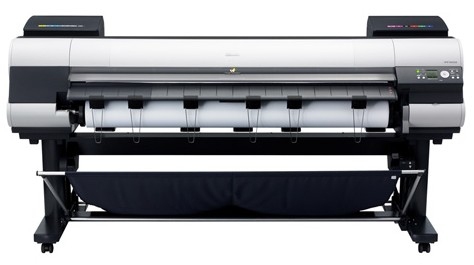

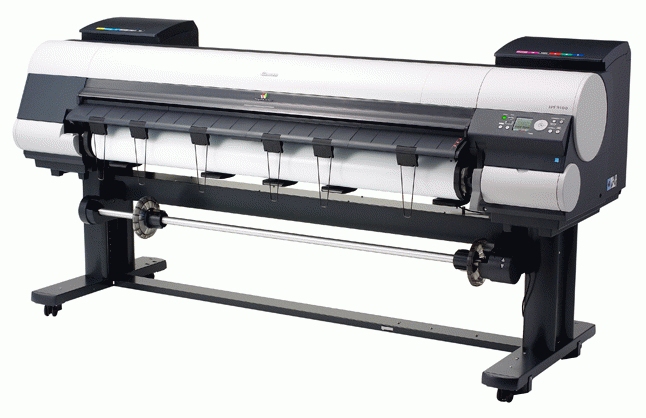

iPF9100 large format printer Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model iPF9100Part no. 2164B002EAN 4960999488455
32 specifications
- Storage80 GB
- Weight164.3 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power requirementsAC 100 - 240V, 50 - 60Hz
- Operating temperature (T-T)59 - 86 °C
Overview
- Storage
- 80 GB
- Weight
- 164.3 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power requirements
- AC 100 - 240V, 50 - 60Hz
- Operating temperature (T-T)
- 59 - 86 °C
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF9100
- Part numbers
- 2164B002, 1120V586, 2164B003
- EAN / UPC
- 4960999488455, 013803086058, 138030860582
- Also known as
- Canon iPF9100 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
32 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | GARO |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll diameter | 15 cm |
| Maximum media width | 60 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 51 dB |
| Drive device, buffer size | 640 MB |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100 - 240V, 50 - 60Hz |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 59 - 86 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/XP/Vista 32/64bit MAC OS9,OSX |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 2298.7 x 767 x 1143 mm |
| Weight | 164.3 kg |
| Size (imperial) | 152.4 cm (60") |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Digital Photo Front-Access |
Other features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Ink drop | 4 |
