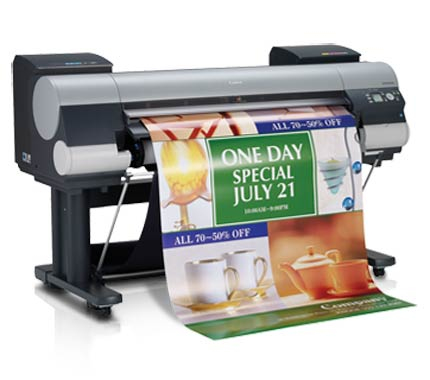

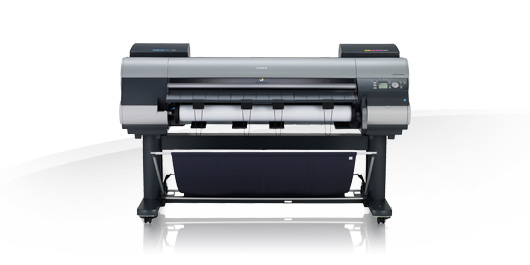

imagePROGRAF iPF8300S large format printer Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model iPF8300SPart no. 4919B003EAN 4960999685601
52 specifications
- Memory384 MB
- Storage160 GB
- Weight143 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power consumption (PowerSave)6 W
Overview
- Memory
- 384 MB
- Storage
- 160 GB
- Weight
- 143 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power consumption (PowerSave)
- 6 W
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF8300S
- Part numbers
- 4919B003, 1228V585
- EAN / UPC
- 4960999685601
- Also known as
- Canon imagePROGRAF iPF8300S large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
52 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 8 |
| Page description languages | GARO |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | PF-05 |
| Print speed (normal quality) | 2400 x 1200 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Art paper, Banner, Coated paper, Photo paper, Plain paper |
| ISO A-series sizes (A0...A9) | A0, A1 |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| JIS B-series sizes (B0...B9) | B0, B2 |
| Media width (rolls) | 254 - 1118 mm |
| Media width (sheets) | 203.2 - 1118 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100/1000-T(X) |
| Supported network protocols | IPX/SPX SNMP HTTP, TCP/IP, AppleTalk |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal memory | 384 MB |
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 50 dB |
| Certification | TUV, GOST-R, CB, RoHS, IT ECO, WEEE, ErP |
Power
| Specification | Value |
|---|---|
| Power consumption (PowerSave) | 6 W |
| Power consumption (off) | 1 W |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | 15 - 30 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1893 mm |
| Depth | 975 mm |
| Height | 1144 mm |
| Weight | 143 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2080 mm |
| Package depth | 1060 mm |
| Package height | 867 mm |
| Package weight | 170 kg |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | 802.3, 802.3u, 802.3ab |
| Number of power supply units | 1 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Russian |
| Proofing paper | Yes |
