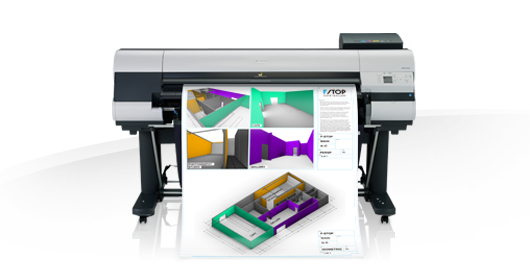

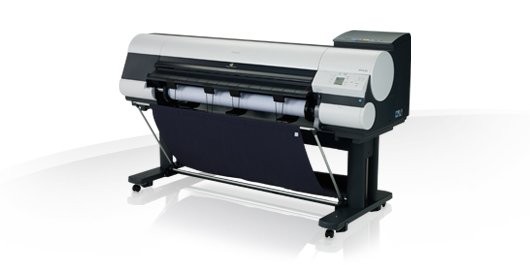

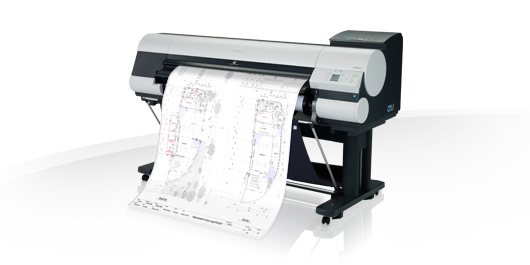

Canon imagePROGRAF iPF830 large format printer Inkjet Colour
2400 x 1200 DPI A0 (841 x 1189 mm)
Model iPF830Part no. 0005C003EAN 4549292022650
45 specifications
- Memory32768 MB
- Storage320 GB
- Weight138 g
- ColourYes
- Print technologyInkjet
- Maximum print sizeA0 (841 x 1189 mm)
Overview
- Memory
- 32768 MB
- Storage
- 320 GB
- Weight
- 138 g
- Colour
- Yes
- Print technology
- Inkjet
- Maximum print size
- A0 (841 x 1189 mm)
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF830
- Part number
- 0005C003
- EAN / UPC
- 4549292022650
- Also known as
- Canon imagePROGRAF iPF830 large format printer Inkjet Colour 2400 x 1200 DPI A0 (841 x 1189 mm)
Specifications
45 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 5 |
| Page description languages | GARO, HP-GL/2, HP-RTL |
| Printing colours | Black, Cyan, Magenta, Matte black, Yellow |
| Print head | PF-04 |
| Print speed (best quality) | 121 sqf/h |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0...A9) | A0, A1 |
| Borderless printing media sizes | A0, A1 |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll diameter | 15 cm |
| JIS B-series sizes (B0...B9) | B0, B2 |
| Media width (rolls) | 1117.6 mm |
| Media width (sheets) | 1117.6 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Internal memory | 32768 MB |
| Internal storage capacity | 320 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 52 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 5 W |
| Power supply | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1893 mm |
| Depth | 975 mm |
| Height | 1144 mm |
| Weight | 138 g |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Number of power supply units | 1 |
| Minimum line width | 0.02 mm |
What people say
Reviews & ratings
Canon imagePROGRAF iPF830 large format printer Inkjet Colour
No reviews yet
Be the first to tell others how Canon imagePROGRAF iPF830 large format printer Inkjet Colour works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Canon imagePROGRAF iPF830 large format printer Inkjet Colour
All large format printer comparisons- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsCanon imagePROGRAF iPF850 large format printer Inkjet ColourCompare specs

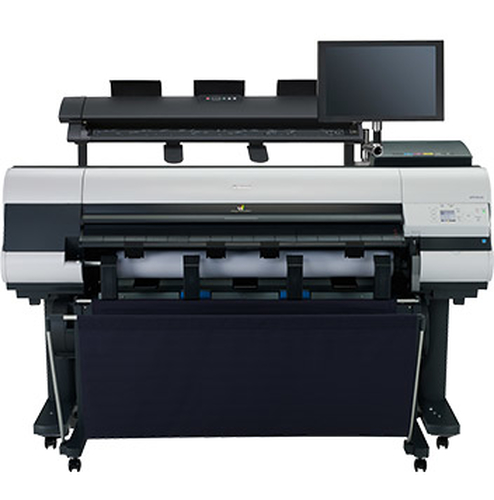

- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsCanon iPF840 MFP M40Compare specs
- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsCanon imagePROGRAF iPF670 large format printer Inkjet ColourCompare specs

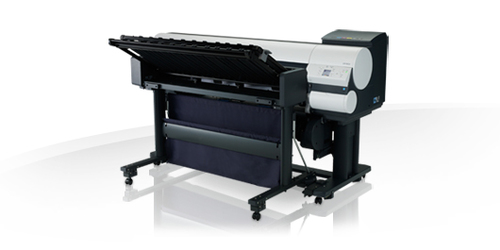

- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsCanon imagePROGRAF iPF770 large format printer Dye-sublimation ColourCompare specs

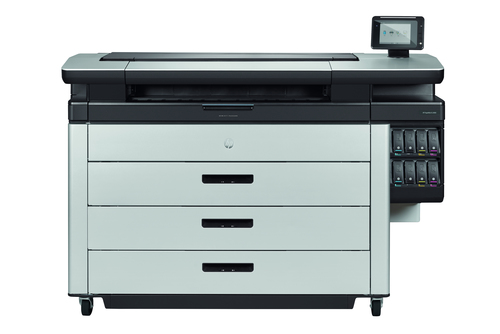

- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsHP PageWide XL 8000 large format printer Inkjet ColourCompare specs

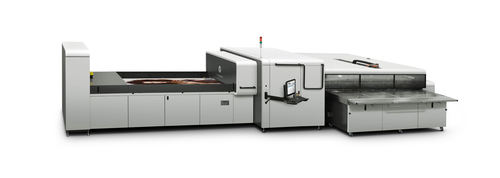

- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsHP Scitex 11000 Industrial PressCompare specs

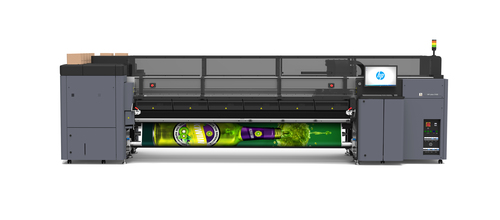

- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsHP Latex 3100 large format printer Latex printing ColourCompare specs

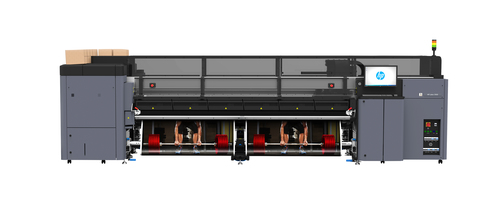

- Canon imagePROGRAF iPF830 large format printer Inkjet Colour vsHP Latex 3500 large format printer Latex printing ColourCompare specs
