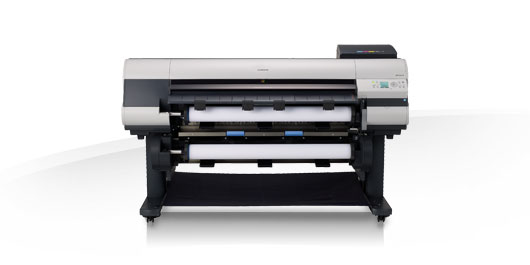

imagePROGRAF iPF825 large format printer Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model iPF825Part no. 1708B097EAN 660685028227
46 specifications
- Memory32768 MB
- Storage160 GB
- Weight189 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power requirementsAC 100 - 240V, 50/60Hz
Overview
- Memory
- 32768 MB
- Storage
- 160 GB
- Weight
- 189 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power requirements
- AC 100 - 240V, 50/60Hz
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF825
- Part numbers
- 1708B097, 4837B003, 4837B002, 1951V400, 1228V584, 1708B096
- EAN / UPC
- 660685028227, 4960999684444, 013803131208, 031112374871 +3 more
- Also known as
- Canon imagePROGRAF iPF825 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
46 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Printing colours | Black, Cyan, Magenta, Pigment matte black, Yellow |
| Print cartridge volume (metric) | 330ml; 700ml |
| Print head | PF-03 |
| Print speed (best quality) | 3.38 |
| Print speed (normal quality) | 2.29 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3 |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll diameter | 15 cm |
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 ｘ 40", 34 ｘ 44" |
| Architectural sizes | 9 x 12", 12 x 18", 18 x 24", 24 x 36", 26 ｘ 38", 27 x 39", 30 x 42", 36 x 48" |
| ISO C-series sizes (C0...C9) | C0, C1, C2, C3, C4 |
| JIS B-series sizes (B0...B9) | B0, B1, B2, B3 |
| Maximum media width | Roll paper: 254 - 1118 mm; Cut sheet: 203 - 1118 mm |
| Roll top margin | 2 cm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100Base-T/TX |
| Supported network protocols | IPX/SPX Netware 4.2 (J), 5.1 (J), 6.0 (J)） SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal memory | 32768 MB |
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 52 dB |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100 - 240V, 50/60Hz |
| Power consumption (off) | 1 W |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1893 x 1291 x 1114 mm |
| Weight | 189 kg |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.1% |
