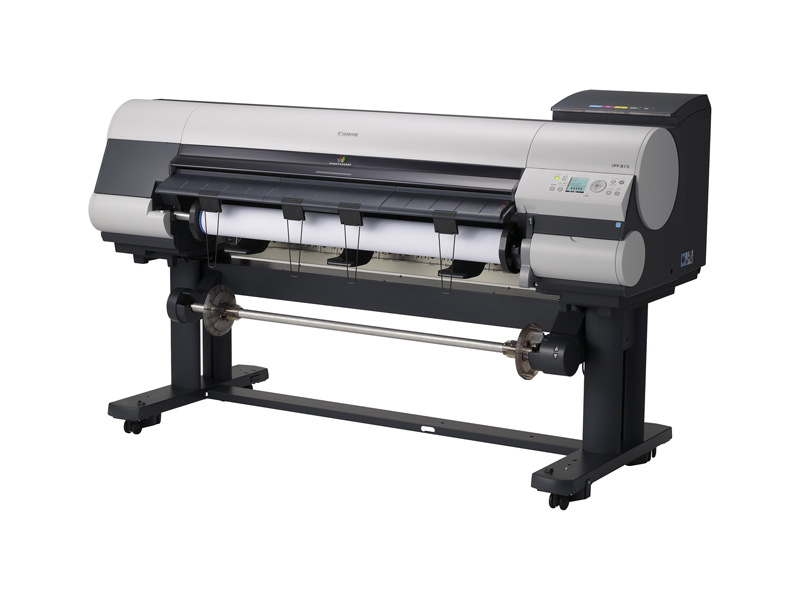

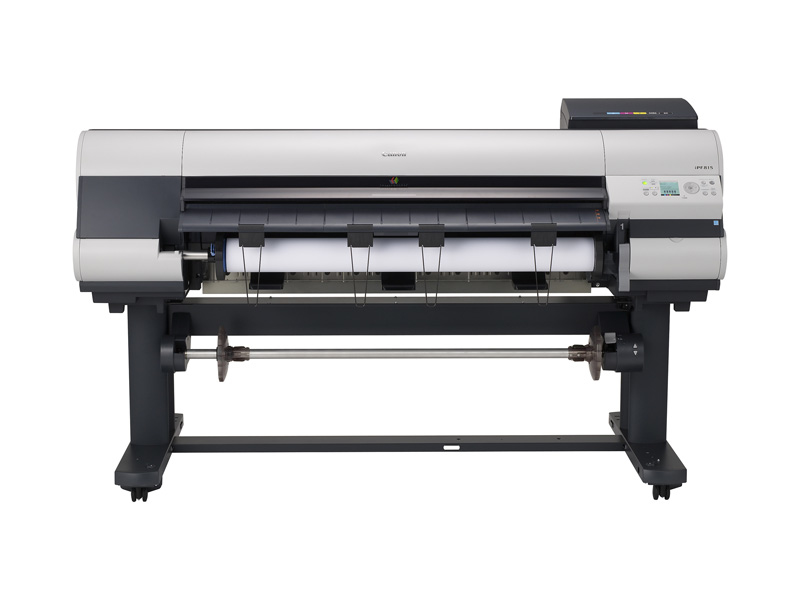

imagePROGRAF iPF815 large format printer Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model iPF815Part no. 1951V399EAN 138031311922
52 specifications
- Storage80 GB
- Weight143 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power requirementsAC 100-240V (50/60 Hz)
- Operating relative humidity (H-H)10 - 80%
Overview
- Storage
- 80 GB
- Weight
- 143 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power requirements
- AC 100-240V (50/60 Hz)
- Operating relative humidity (H-H)
- 10 - 80%
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF815
- Part numbers
- 1951V399, 1225V907, 4836B003, 4836B002
- EAN / UPC
- 138031311922, 4960999684390, 013803131192, 031113292020
- Also known as
- Canon imagePROGRAF iPF815 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
52 specifications in 8 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print head | PF-05 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Matte paper, Plain paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) | B0, B1, B2, B3, B4 |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 x 40", 34 x 44" |
| Architectural sizes | 24", 30", 36", 10", 14", 16", 17", 42", 44" |
| ISO C-series sizes (C0...C9) | C0, C1, C2, C3, C4 |
| JIS B-series sizes (B0...B9) | B0, B1, B2, B3, B4 |
| Maximum media width | 254 - 1117.6mm |
| Media width (rolls) | 254 - 1117.6 mm |
| Photo paper sizes (imperial) | 10x12,10x15,12x16,14x17,16x20,18x22,20x24 |
| Roll top margin | 2 cm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10Base-T, 100base-TX |
| Supported network protocols | IPX/SPX, HTTP, TCP/IP, AppleTalk |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 50 dB |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100-240V (50/60 Hz) |
| Power consumption (off) | 1 W |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | 15 - 30 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1893 x 975 x 1144 mm |
| Weight | 143 kg |
| Size (imperial) | 111.8 cm (44") |
Other features
| Specification | Value |
|---|---|
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, 802.3u |
| Glossy paper | Yes |
| High resolution paper | Yes |
| Opaque film | Yes |
| Opaque paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
| Roll-up film | Yes |
| Vinyl media | Yes |
