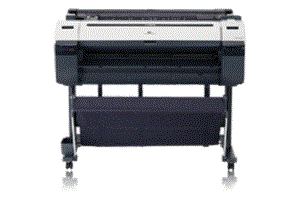

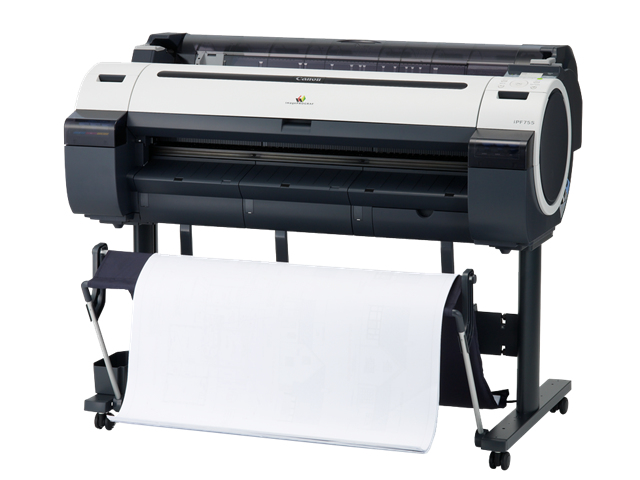

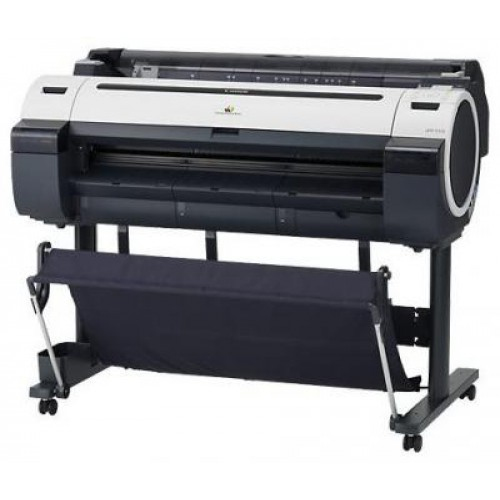

imagePROGRAF IPF755 large format printer Inkjet Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model IPF755Part no. 1282V335
57 specifications
- Memory256 MB
- Weight63.1 kg
- ColourYes
- Print technologyInkjet
- Maximum print sizeA0 (841 x 1189 mm)
- Product colourBlack, White
Overview
- Memory
- 256 MB
- Weight
- 63.1 kg
- Colour
- Yes
- Print technology
- Inkjet
- Maximum print size
- A0 (841 x 1189 mm)
- Product colour
- Black, White
- Brand
- Canon
- Category
- Large Format Printer
- Model
- IPF755
- Part number
- 1282V335
- Also known as
- Canon imagePROGRAF IPF755 large format printer Inkjet Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
57 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | GARO, HP-GL/2, HP-RTL |
| Printing colours | Black, Cyan, Magenta, Matte black, Yellow |
| Print head | PF-04 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Banner, Glossy paper, Matte paper, Photo paper, Plain paper, Semi-glossy paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3 |
| ISO B-series sizes (B0...B9) | B1, B2, B4 |
| Borderless printing media sizes | A0, A1 |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll width | 91.4 cm |
| Maximum roll diameter | 15 cm |
| Print margin cut-sheet | 1600 mm |
| ANSI paper sizes | 8.5 x 11, 8.5 x 14, 11 x 17, 13 x 19, 17 x 22, 22 x 34, 28 x 40, 34 x 44 |
| Architectural sizes | 9 x 12, 12 x 18, 18 x 24, 24 x 36, 26 x 38, 27 x 39, 30 x 42, 36 x 48 |
| ISO C-series sizes (C0...C9) | C0, C1, C2, C3, C4 |
| JIS B-series sizes (B0...B9) | B0, B1, B2, B3, B4 |
| Media width (rolls) | 254 - 914 mm |
| Photo paper sizes (imperial) | 10x12,10x15,12x16,14x17,18x22,20x24 |
| Roll widths supported | 254 - 914.4 |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10Base-T, 100base-TX |
| Supported network protocols | IPX/SPX, SNMP, HTTP, TCP/IP, AppleTalk |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
| Internal memory | 256 MB |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 50 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 1 W |
| Power consumption (standby) | 5 W |
| Power consumption (typical) | 140 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | 15 - 30 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1304 mm |
| Depth | 870 mm |
| Height | 1062 mm |
| Weight | 63.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Touchscreen | No |
| Compliance industry standards | IEEE 802.3, 802.3u, 802.3ab |
| High resolution paper | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, English, Spanish, Italian |
| Opaque paper | Yes |
| Proofing paper | Yes |
| Roll-up film | Yes |
