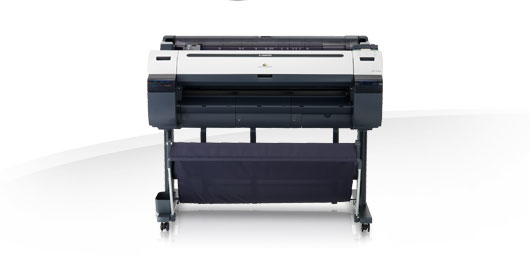

imagePROGRAF iPF750 large format printer Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model iPF750Part no. 1951V397EAN 6606850155002
44 specifications
- Weight62.9 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power requirementsAC 100-240V (50/60Hz)
- Operating temperature (T-T)15 - 30 °C
- Dimensions (WxDxH)1304 x 870 x 1062 mm
Overview
- Weight
- 62.9 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power requirements
- AC 100-240V (50/60Hz)
- Operating temperature (T-T)
- 15 - 30 °C
- Dimensions (WxDxH)
- 1304 x 870 x 1062 mm
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF750
- Part numbers
- 1951V397, 2983B003, 2983B007, 1282V334, 2983B013
- EAN / UPC
- 6606850155002, 3609740065699, 4054318669318, 4960999637419 +5 more
- Also known as
- Canon imagePROGRAF iPF750 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
44 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | GARO, HP-GL/2 |
| Print cartridge volume (metric) | 130ml |
| Print head | PF-04 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) | B1, B2, B3, B4 |
| Cut sheets | Yes |
| Media thickness | 0.08 mm |
| Maximum roll length | 18 m |
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 x 40", 34 x 44" |
| Architectural sizes | 9 x 12", 12 x 18", 18 x 24", 24 x 36", 26 x 38", 27 x 39", 30 x 42", 36 x 48" |
| JIS B-series sizes (B0...B9) | B1, B2, B3, B4 |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Supported network protocols | IPX/SPX (Netware 4.2 9J), 5.1 (J), 6.0 (J)), SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 50 dB |
| Drive device, buffer size | 256 MB |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100-240V (50/60Hz) |
| Power consumption (standby) | 5 W |
| Power consumption (typical) | 140 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows: 2000 (32)/XP (32 & 64)/ Server 2003 (32 & 64)/ Server 2008 (32 & 64)/ Vista (32 & 64) Macintosh: OS X (32 & 64) |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1304 x 870 x 1062 mm |
| Weight | 62.9 kg |
Other features
| Specification | Value |
|---|---|
| Line accuracy | ± 0.1% |
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Auto-Negotiation |
| Glossy paper | Yes |
| High resolution paper | Yes |
| Opaque paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
