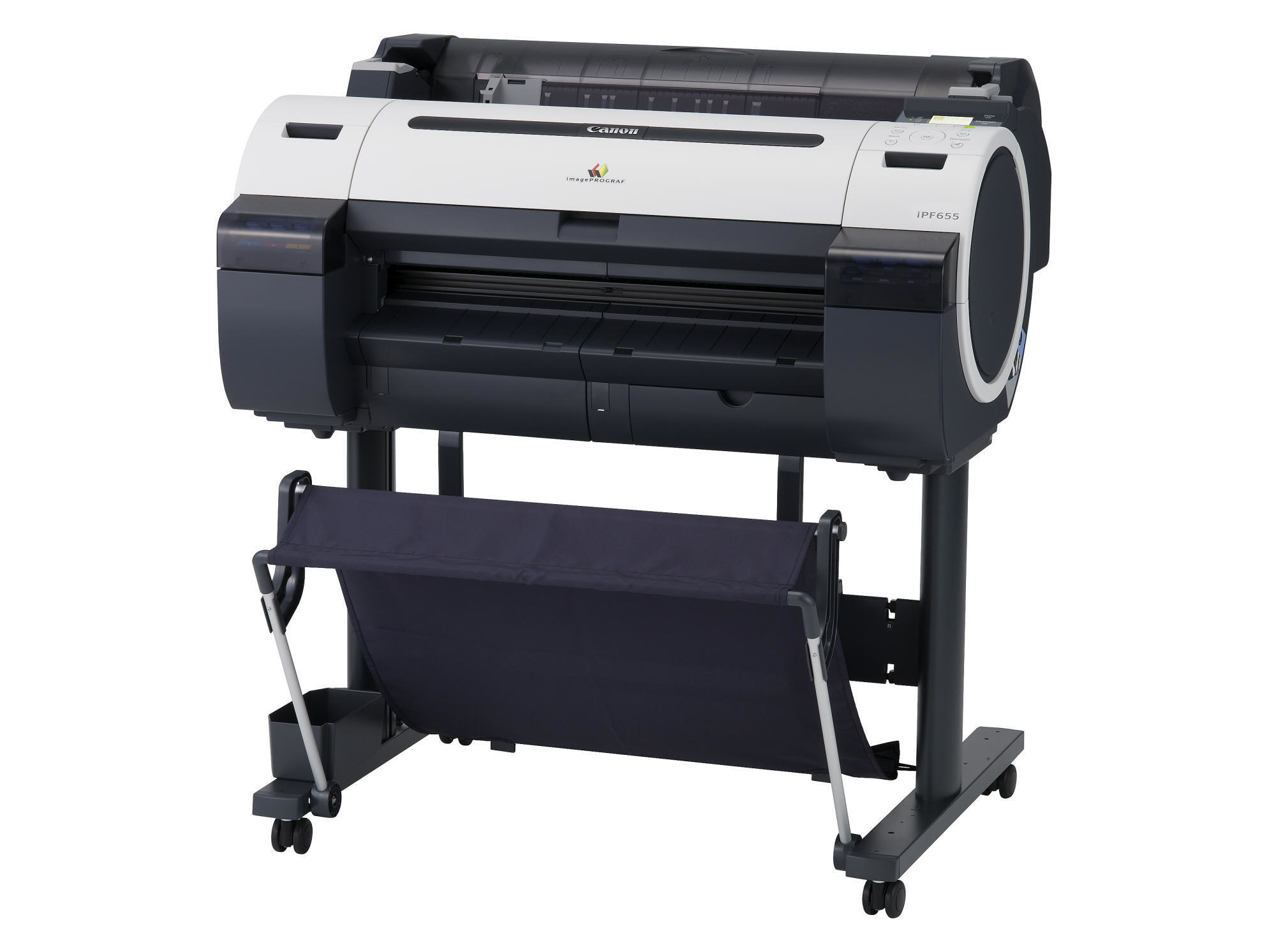

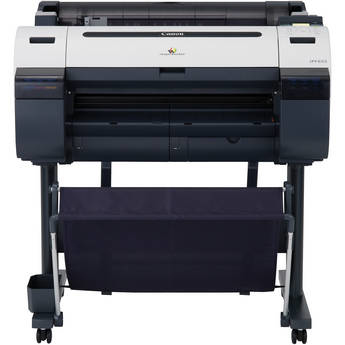

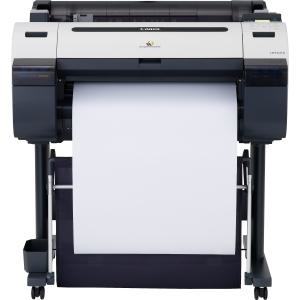

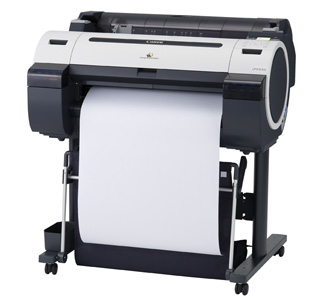

imagePROGRAF IPF655 large format printer Colour
2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Model IPF655Part no. 1282V337EAN 4960999639635
55 specifications
- Memory256 MB
- Storage80 GB
- Weight43.6 kg
- ColourYes
- Maximum print sizeA1 (594 x 841 mm)
- Power requirementsAC 100-240V (50/60 Hz)
Overview
- Memory
- 256 MB
- Storage
- 80 GB
- Weight
- 43.6 kg
- Colour
- Yes
- Maximum print size
- A1 (594 x 841 mm)
- Power requirements
- AC 100-240V (50/60 Hz)
- Brand
- Canon
- Category
- Large Format Printer
- Model
- IPF655
- Part numbers
- 1282V337, 3433B003, 3443B003, 3433B016
- EAN / UPC
- 4960999639635
- Also known as
- Canon imagePROGRAF IPF655 large format printer Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
55 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | GARO, HP-RTL |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | PF-04 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Banner, Matte paper, Plain paper |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) | B2, B3, B4 |
| Borderless printing media sizes | A3, B4 |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34" |
| Architectural sizes | 24"; 10", 14", 16", 17 |
| ISO C-series sizes (C0...C9) | C2, C3, C4 |
| JIS B-series sizes (B0...B9) | B4 |
| Maximum media width | 254 - 609.6mm |
| Media width (rolls) | 254 - 609.6 mm |
| Photo paper sizes (imperial) | 10x12,10x15,12x16,14x17,16x20,18x22,20x24 |
| Roll top margin | 2 cm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10Base-T, 100base-TX |
| Supported network protocols | IPX/SPX, HTTP, TCP/IP, AppleTalk |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal memory | 256 MB |
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 47 dB |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100-240V (50/60 Hz) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | 15 - 30 °C |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows: 2000 (32)/XP (32, 64)/ Server 2003 (32, 64)/ Server 2008 (32, 64)/ Vista (32, 64) Macintosh: OS X (32, 64) |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 997 x 698 x 507 mm |
| Weight | 43.6 kg |
| Size (imperial) | 61 cm (24") |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 63.2 kg |
| Package dimensions (WxDxH) | 1127 x 830 x 762 mm |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/-0.1% |
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, 802.3u |
| Glossy paper | Yes |
| High resolution paper | Yes |
| Opaque paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
