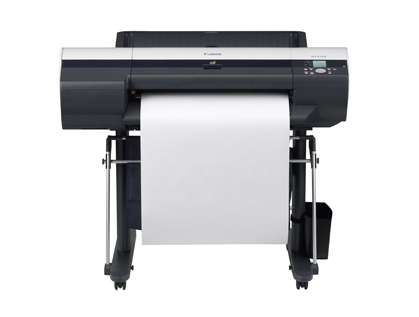

iPF6100 large format printer Colour
2400 x 1200 DPI 610 x 1897 mm Ethernet LAN
Model iPF6100Part no. 1016B002EAN 013803059731
45 specifications
- Weight51 kg
- ColourYes
- Maximum print size610 x 1897 mm
- Power requirements100 - 120 VAC (50/60 Hz)
- Dimensions (WxDxH)1177 x 670 x 348 mm
Overview
- Weight
- 51 kg
- Colour
- Yes
- Maximum print size
- 610 x 1897 mm
- Power requirements
- 100 - 120 VAC (50/60 Hz)
- Dimensions (WxDxH)
- 1177 x 670 x 348 mm
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF6100
- Part number
- 1016B002
- EAN / UPC
- 013803059731
- Also known as
- Canon iPF6100 large format printer Colour 2400 x 1200 DPI 610 x 1897 mm Ethernet LAN
Specifications
45 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print head | PF-03 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 610 x 1897 mm |
| ISO A-series sizes (A0...A9) | A1, A2, A3 |
| ISO B-series sizes (B0...B9) | B2, B4 |
| Cut sheets | Yes |
| Media thickness | 1.5 mm |
| Maximum roll length | 18 m |
| Maximum roll diameter | 15 cm |
| Maximum media width | 610 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10base-T; 100base-TX |
| Supported network protocols | IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 49 dB |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 120 VAC (50/60 Hz) |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 100 W |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1177 x 670 x 348 mm |
| Weight | 51 kg |
| Size (imperial) | 61 cm (24") |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 77 kg |
| Package dimensions (WxDxH) | 1320 x 914 x 645 mm |
| Bundled software | imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access |
Other features
| Specification | Value |
|---|---|
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Glossy paper | Yes |
| High resolution paper | Yes |
| Opaque film | Yes |
| Opaque paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
| Roll-up film | Yes |
| Vinyl media | Yes |
| Compatible ink types, supplies | PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY) |
| Ink drop | 4 pl |
