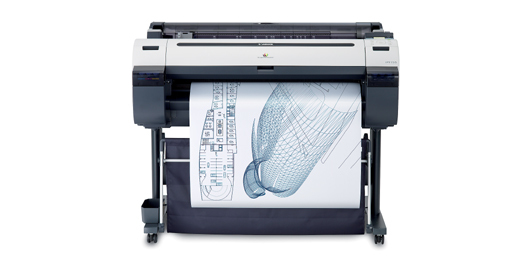

iPF 755
Model iPF 755Part no. 3432B003EAN 4960999637464
51 specifications
- Storage80 GB
- Weight63.1 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power requirementsAC 100 - 120V, 50 - 60Hz
- Operating temperature (T-T)15 - 30 °C
Overview
- Storage
- 80 GB
- Weight
- 63.1 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power requirements
- AC 100 - 120V, 50 - 60Hz
- Operating temperature (T-T)
- 15 - 30 °C
- Brand
- Canon
- Category
- Large Format Printer
- Model
- iPF 755
- Part numbers
- 3432B003, IPF755
- EAN / UPC
- 4960999637464
- Also known as
- Canon iPF 755 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
51 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | GARO |
| Print head | PF-03 |
| Print speed (best quality) | 79 sqf/h |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Coated paper, Glossy paper, High resolution paper, Matte paper, Photo paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) | B1, B2, B3, B4 |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll width | 91.4 cm |
| Maximum roll diameter | 15 cm |
| ISO C-series sizes (C0...C9) | C0, C1, C2, C3, C4 |
| JIS B-series sizes (B0...B9) | B1, B2, B3, B4 |
| Maximum media width | 36" |
| Photo paper sizes (imperial) | 10x12,10x15,12x16,14x17,16x20,18x22,20x24 |
| Media thickness (by paper path) | 0.07-0.08mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Supported network protocols | IPX/SPX, SNMP, HTTP, TCP/IP |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 50 dB |
| Drive device, buffer size | 256 MB |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100 - 120V, 50 - 60Hz |
| Power consumption (standby) | 5 W |
| Power consumption (typical) | 140 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/XP/Vista 32/64bit Mac OS10 |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1303 x 871.22 x 1061.72 mm |
| Weight | 63.1 kg |
| Size (imperial) | 91.4 cm (36") |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Digital Photo Front-Access |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/-0.1% |
| Coated paper | Yes |
| Glossy paper | Yes |
| High resolution paper | Yes |
| Opaque paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
| Minimum line width | 0.02 mm |
| Ink drop | 4pl |
