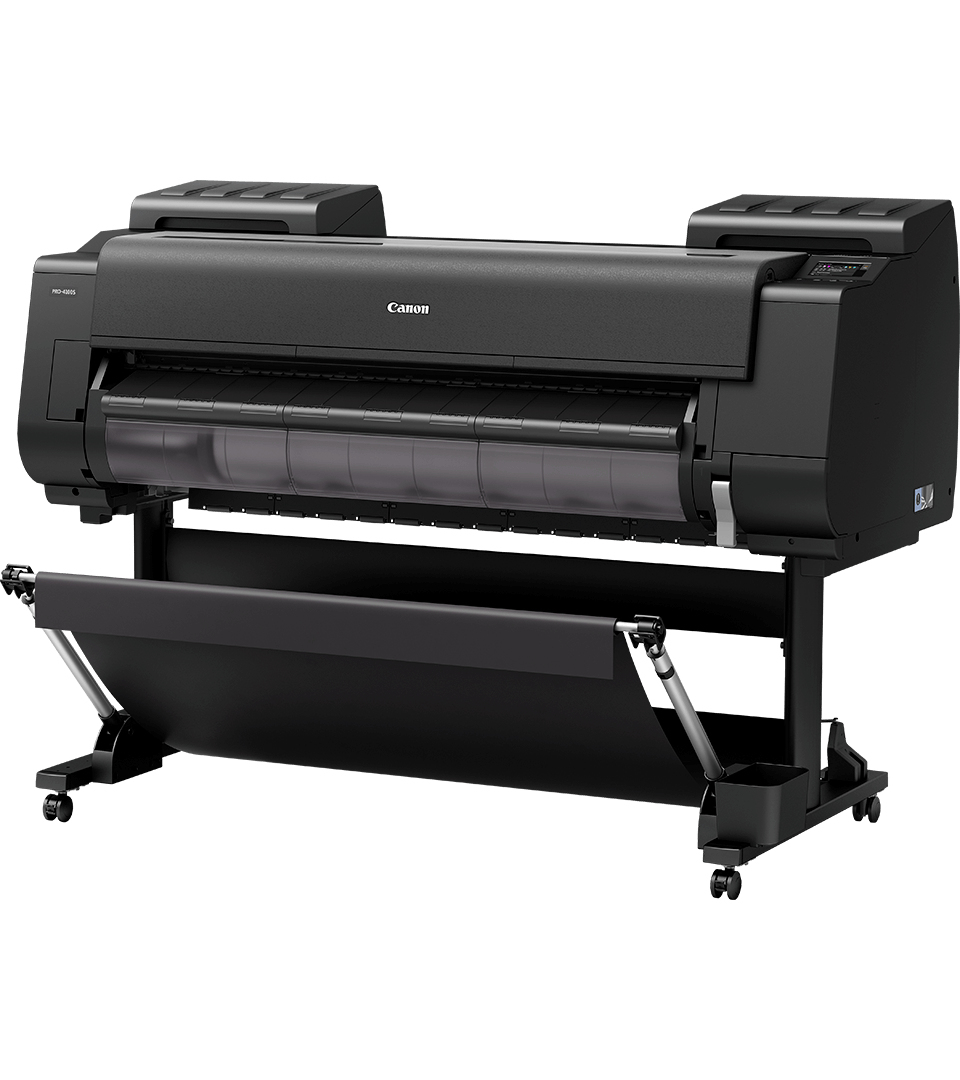

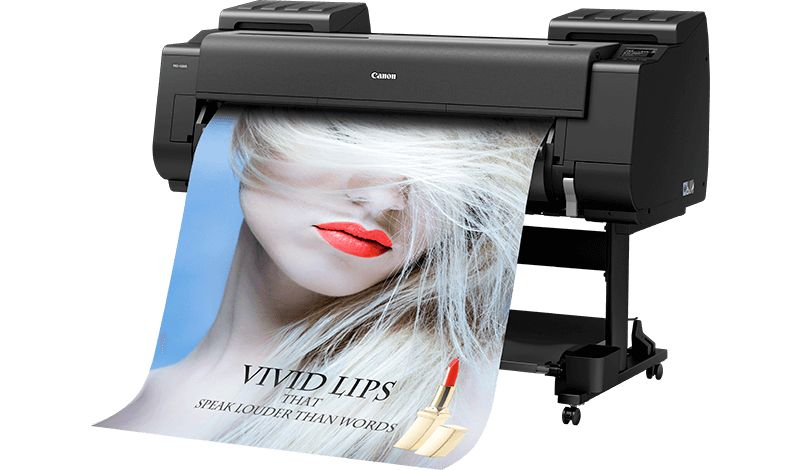

imagePROGRAF PRO-4100S
Model imagePROGRAF PRO-4100SPart no. BDL_PRO4100SMF_IND
42 specifications
- Display10.9 cm (4.3")
- Memory3096 MB
- Storage512 TB
- Weight122 kg
- ColourYes
- Print technologyInkjet
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 3096 MB
- Storage
- 512 TB
- Weight
- 122 kg
- Colour
- Yes
- Print technology
- Inkjet
- Brand
- Canon
- Category
- Large Format Printer
- Model
- imagePROGRAF PRO-4100S
- Part number
- BDL_PRO4100SMF_IND
- Also known as
- Canon imagePROGRAF PRO-4100S large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI 1118 x 18000 mm Ethernet LAN
Specifications
42 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Printing colours | Black, Cyan, Grey, Magenta, Matte black, Photo cyan, Photo magenta, Yellow |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 1118 x 18000 mm |
| Paper tray media types | Roll |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 18 m |
| Maximum roll width | 111.8 cm |
| Maximum roll diameter | 17 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| USB 2.0 ports quantity | 2 |
| Direct printing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal memory | 3096 MB |
| Internal storage capacity | 512 TB |
| Storage media | HDD |
| Sound pressure level (standby) | 35 dB |
| Sound pressure level (printing) | 49 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 116 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1593 mm |
| Depth | 984 mm |
| Height | 1168 mm |
| Weight | 122 kg |
