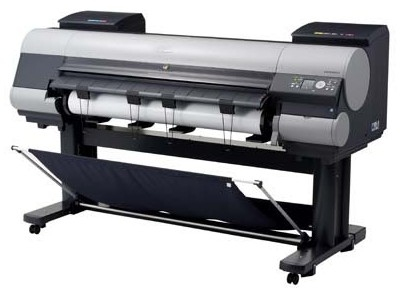

ImagePROGRAF IPF8000S
Model ImagePROGRAF IPF8000SPart no. 2161B003EAN 4960999488165
38 specifications
- Weight140 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power requirements100 - 240 V (50/60 Hz)
- Operating temperature (T-T)15 - 30 °C
- Dimensions (WxDxH)1893 x 975 x 1144 mm
Overview
- Weight
- 140 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power requirements
- 100 - 240 V (50/60 Hz)
- Operating temperature (T-T)
- 15 - 30 °C
- Dimensions (WxDxH)
- 1893 x 975 x 1144 mm
- Brand
- Canon
- Category
- Large Format Printer
- Model
- ImagePROGRAF IPF8000S
- Part number
- 2161B003
- EAN / UPC
- 4960999488165
- Also known as
- Canon imagePROGRAF IPF8000S large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
38 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | GARO |
| Print head | PF-03 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3 |
| ISO B-series sizes (B0...B9) | B0, B2 |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 19 m |
| Maximum roll width | 111.8 cm |
| Maximum roll diameter | 15 cm |
| Architectural sizes | 24", 30", 36" |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Supported network protocols | IPX/SPX, SNMP, HTTP, TCP/IP, AppleTalk |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 50 dB |
| Drive device, buffer size | 384 MB |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 V (50/60 Hz) |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 190 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1893 x 975 x 1144 mm |
| Weight | 140 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 217 kg |
| Package dimensions (WxDxH) | 2080 x 1060 x 1242 mm |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Glossy paper | Yes |
| Maximum internal memory | 80 GB |
