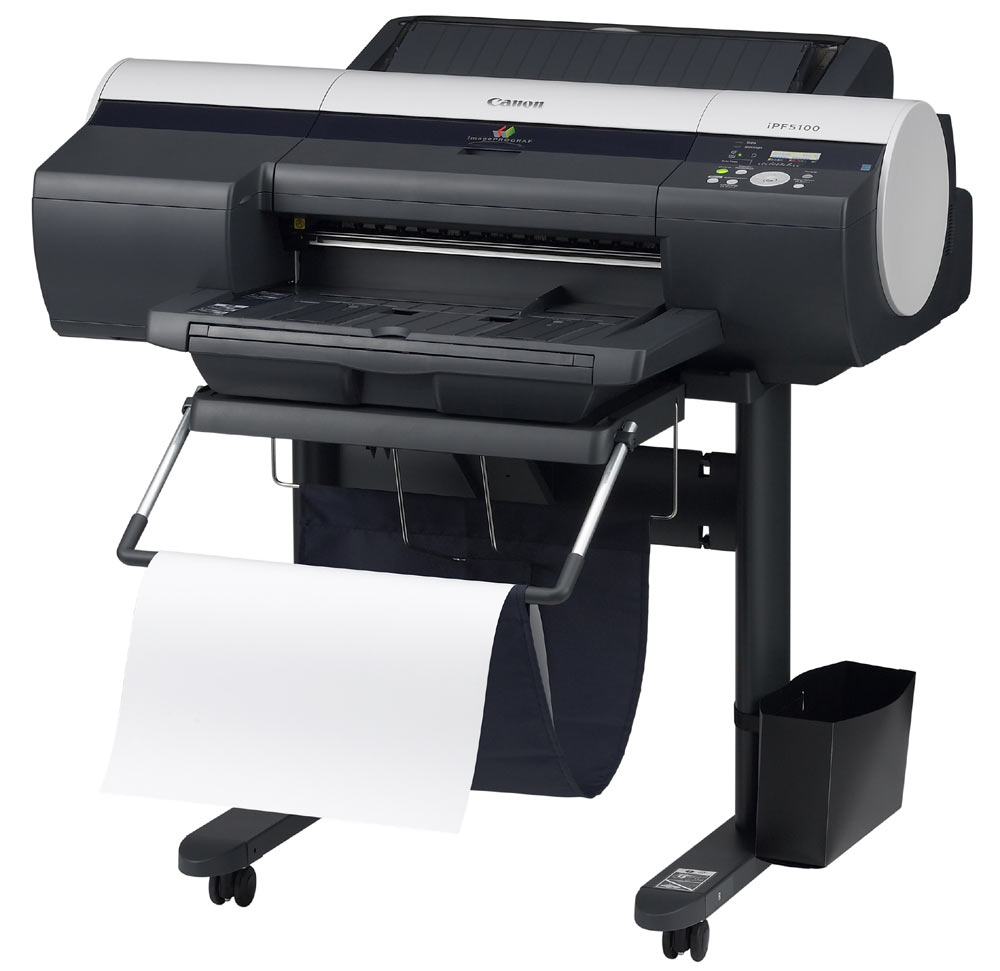

imagePROGRAF iPF5100
Model imagePROGRAF iPF5100Part no. 2157B002EAN 013803085501
32 specifications
- Weight49 kg
- ColourYes
- Maximum print sizeA2 (420 x 594 mm)
- Power consumption (standby)6 W
- Dimensions (WxDxH)999 x 810 x 344 mm
Overview
- Weight
- 49 kg
- Colour
- Yes
- Maximum print size
- A2 (420 x 594 mm)
- Power consumption (standby)
- 6 W
- Dimensions (WxDxH)
- 999 x 810 x 344 mm
- Brand
- Canon
- Category
- Large Format Printer
- Model
- imagePROGRAF iPF5100
- Part number
- 2157B002
- EAN / UPC
- 013803085501, 080850262612, 138030855014, 778888506685
- Also known as
- Canon imagePROGRAF iPF5100 large format printer Colour 2400 x 1200 DPI A2 (420 x 594 mm) Ethernet LAN
Specifications
32 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A2 (420 x 594 mm) |
| Cut sheets | Yes |
| Media thickness | 0.08 - 0.8/0.8 - 1.5 mm |
| Maximum media width | 203 - 432/203.2 - 432 mm |
| Roll paper | Yes |
| Maximum print length | 18 m |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Supported network protocols | IPX/SPX, SNMP, HTTP, TCP/IP, AppleTalk |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 220 - 240 V (50/60 Hz), AC 100 - 120 V (50/60 Hz) |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 100 W |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows 2000, XP, Vista 32 bit/64 bit, Macintosh OS 9, OS 10, Leopard |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 999 x 810 x 344 mm |
| Weight | 49 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 1140 x 914 x 675 mm |
Other features
| Specification | Value |
|---|---|
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Glossy paper | Yes |
| High resolution paper | Yes |
| Opaque paper | Yes |
| Photo paper | Yes |
| Acoustic pressure emissions | 51 dB |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 75 kg |
