MSI Z17 A12UGST-021BE

Z17 A12UGST-021BE

Model Z17 A12UGST-021BEPart no. CREATOR Z17 A12UGST-021BEEAN 4719072916978

91 specifications Checked today

Display43.2 cm (17")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 3070 Ti

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 3070 Ti

Brand: MSI
Category: Laptop
Model: Z17 A12UGST-021BE
Part number: CREATOR Z17 A12UGST-021BE
EAN / UPC: 4719072916978
Also known as: MSI Creator Z17 A12UGST-021BE Intel® Core™ i7 i7-12700H Laptop 43.2 cm (17") Touchscreen Quad HD+ 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6E

Specifications

91 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	Quad HD+
Native aspect ratio	16:10
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	165 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700H
Processor cores	14
Processor boost frequency	4.7 GHz
Processor cache	24 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	NVMe, PCI Express 4.0
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Number of built-in speakers	4
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Killer
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.2

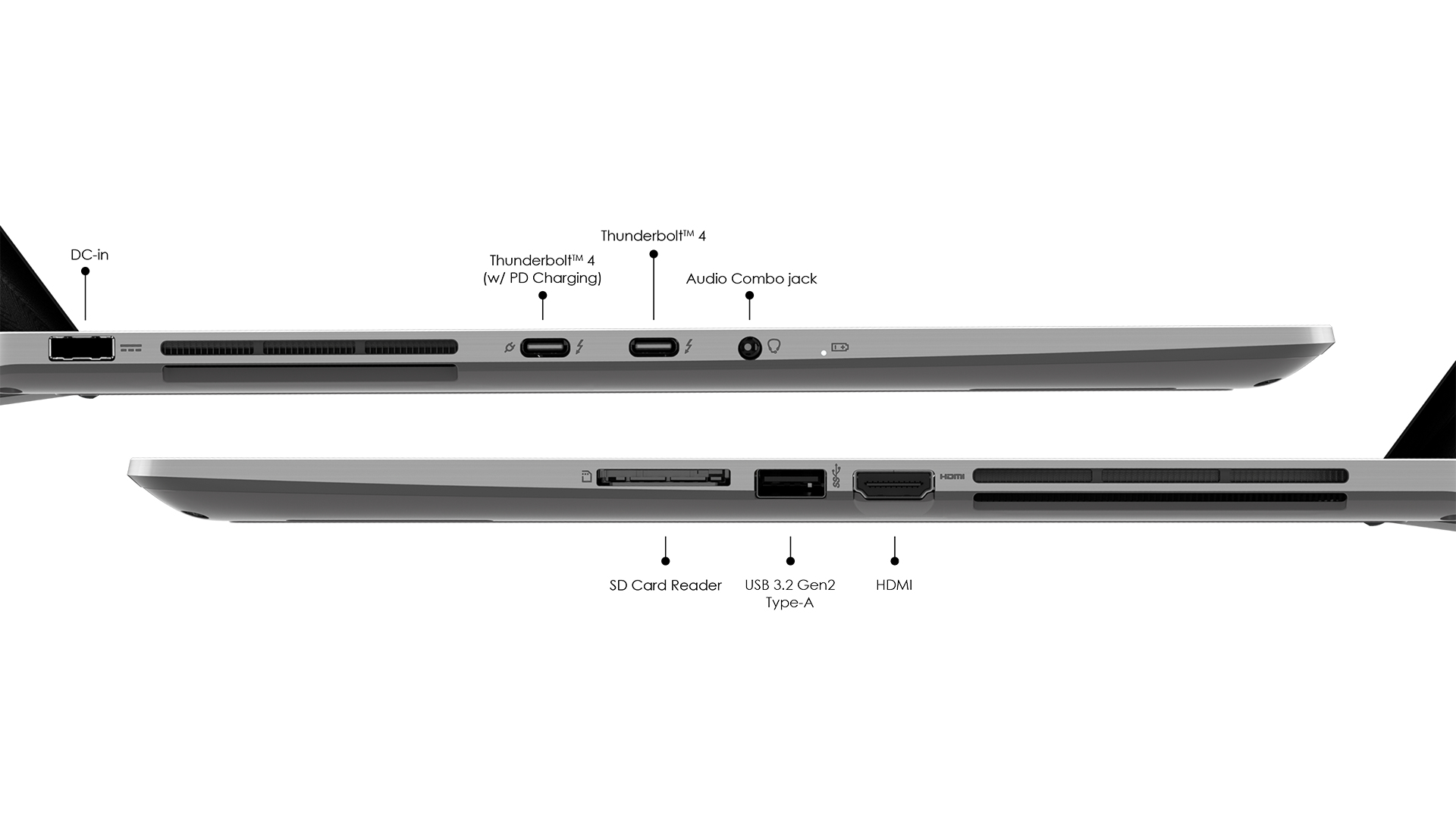

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC
Ambient light sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	Windows 11 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	240 W

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	2.49 kg
Width	382 mm
Depth	260 mm
Height	19 mm

Logistics data

Specification	Value
Harmonized System (HS) code	84713000
