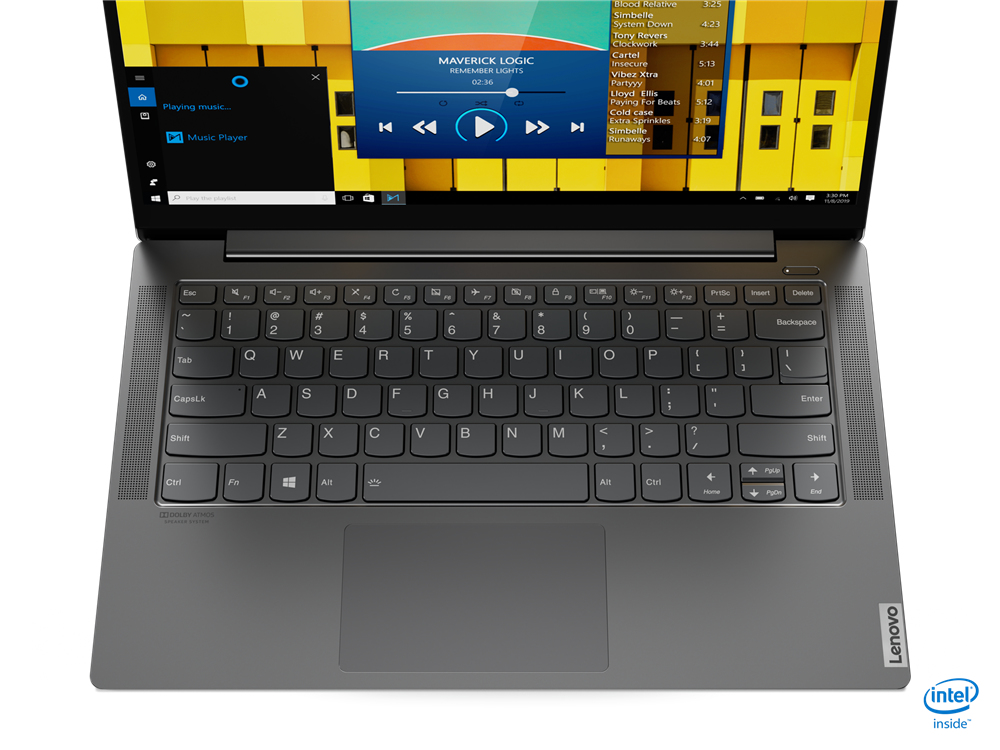

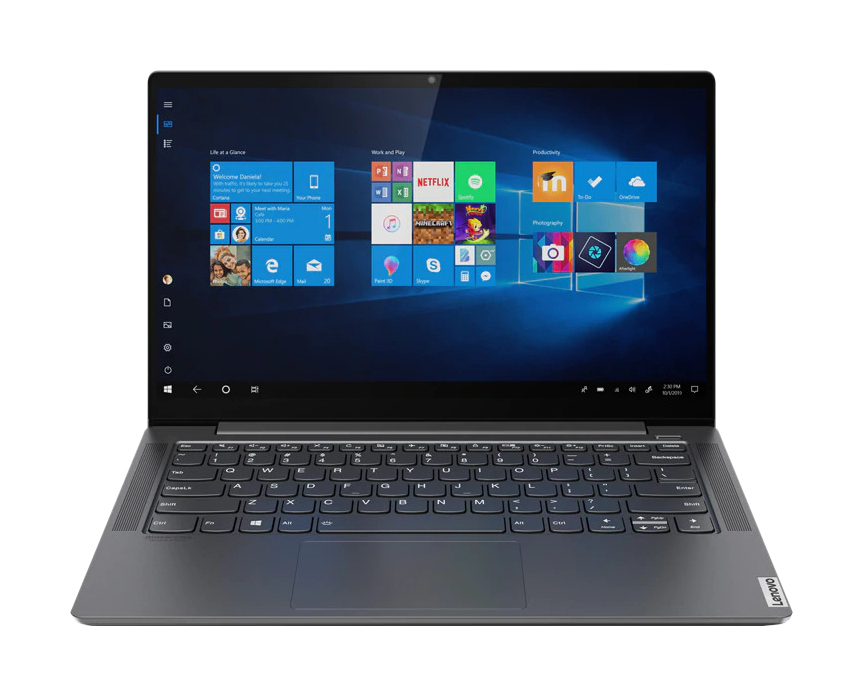

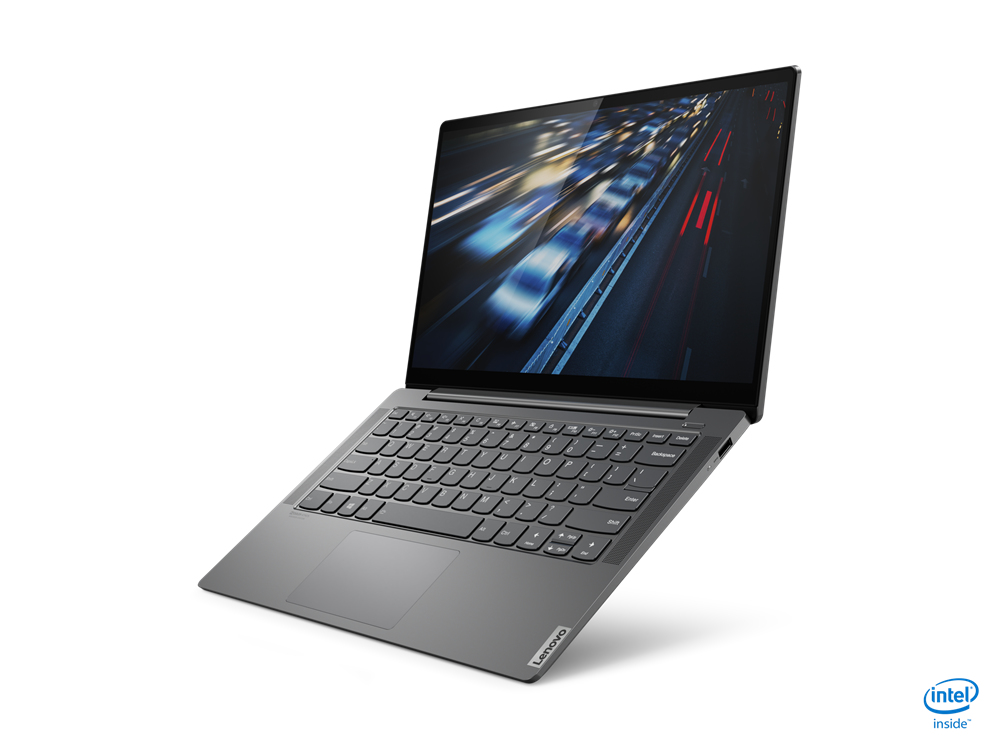

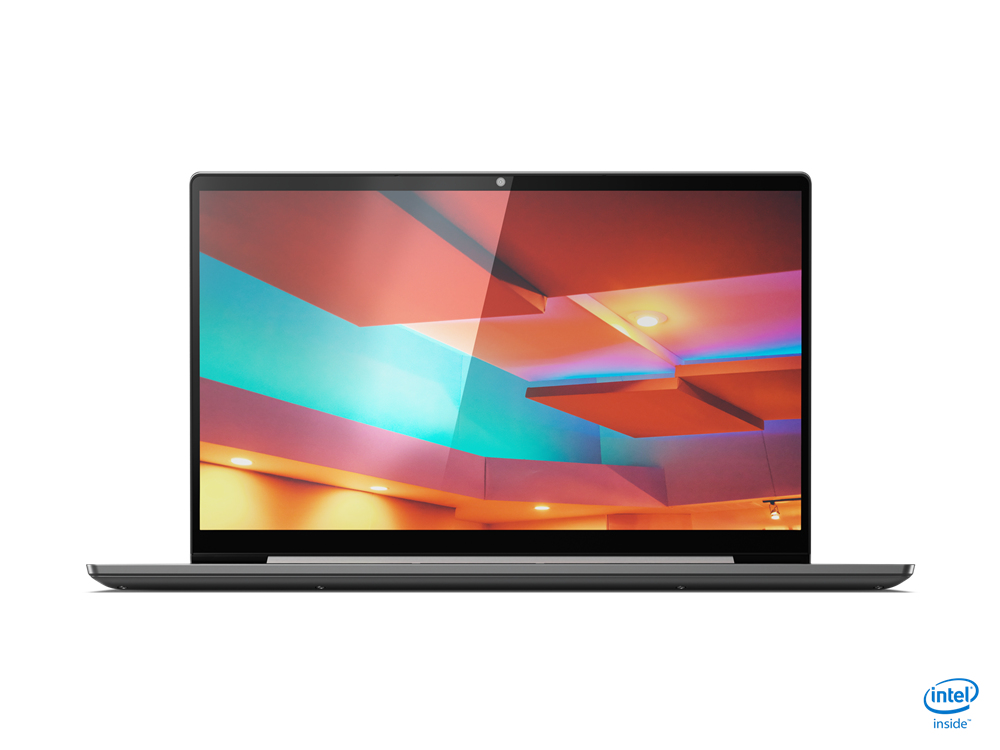

Lenovo Yoga S740 Intel® Core™ i5 i5-1035G1 Laptop
Lenovo

Yoga S740 Intel® Core™ i5 i5-1035G1 Laptop

35.6 cm (14") Full HD 8 GB LPDDR4x-SDRAM 512 GB SSD NVIDIA® GeForce® MX250 Wi-Fi 6 (802.11ax) Windows 10 Home

Model S740Part no. MP1T81YW

151 specifications Checked today
  • Display35.6 cm (14")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage512 GB
  • GraphicsNVIDIA® GeForce® MX250
See all specifications

Overview

Display
35.6 cm (14")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
512 GB
Graphics
NVIDIA® GeForce® MX250
Brand
Lenovo
Category
Laptop
Model
S740
Part numbers
MP1T81YW, 81RS002QCD, 81RS00A7CD, 81RS00A6CD, 81RS002MCD, 81RS002NCD +3 more
Also known as
Lenovo Yoga S740 Intel® Core™ i5 i5-1035G1 Laptop 35.6 cm (14") Full HD 8 GB LPDDR4x-SDRAM 512 GB SSD NVIDIA® GeForce® MX250 Wi-Fi 6 (802.11ax) Windows 10 Home

Specifications

151 specifications in 23 groups

Design

Product typeLaptop
Product colourGrey
Colour nameIron Grey
Form factorClamshell
Housing materialAluminium

Display

Display diagonal35.6 cm (14")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
Panel typeIPS
LED backlightYes
Native aspect ratio16:9
Display brightness400 cd/m²
Dual-screenNo
NTSC coverage (typical)72%

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation10th gen Intel® Core™ i5
Processor modeli5-1035G1
Processor cores4
Processor threads8
Processor boost frequency3.6 GHz
Processor frequency1 GHz
System bus rate4 GT/s
Processor cache6 MB
Processor cache typeSmart Cache
Processor socketBGA 1526
Processor lithography10 nm
Processor operating modes64-bit
Thermal Design Power (TDP)15 W
Configurable TDP-up frequency1.2 GHz
Configurable TDP-up25 W
Configurable TDP-down13 W
Configurable TDP-down frequency0.7 GHz
Tjunction100 °C
PCI Express slots version3.0

Memory

Internal memory8 GB
Internal memory typeLPDDR4x-SDRAM
Memory clock speed3733 MHz
Memory form factorOn-board
Maximum internal memory8 GB
Maximum internal memory (64-bit)8 GB

Storage

Total storage capacity512 GB
Storage mediaSSD
Total SSDs capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
NVMeYes
SSD interfaceNVMe, PCI Express
SSD form factorM.2
Optical drive typeNo
Card reader integratedNo

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA® GeForce® MX250
Discrete graphics card memory2 GB
On-board graphics card modelIntel® UHD Graphics
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)1050 MHz
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.5
On-board graphics card ID0x8A56
Number of discrete graphics cards installed1

Audio

Audio systemDolby Atmos
Number of built-in speakers2
Speaker power2 W
Built-in microphoneYes
Number of microphones2

Camera

Front cameraYes
Front camera HD typeHD
Front camera signal format720p
Infrared (IR) cameraYes
Auto focusNo

Optical drive

LightScribeNo

Network

Mobile network connectionNo
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type2x2
Ethernet LANNo
BluetoothYes
Bluetooth version5.0
WWANNot installed

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Ethernet LAN (RJ-45) ports0
HDMI ports quantity0
DisplayPorts quantity0
Thunderbolt 3 ports quantity0
Combo headphone/mic portYes
USB Type-C DisplayPort Alternate ModeYes
USB Sleep-and-ChargeYes
USB Sleep-and-Charge ports1

Performance

Ambient light sensorNo
Electronic compassNo
GyroscopeNo

Keyboard

Pointing deviceTouchpad
Keyboard backlitYes
Numeric keypadNo
Windows keysYes
Keyboard languageUK English

Software

Operating system installedWindows 10 Home
Operating system architecture64-bit
Operating system languageEnglish

Processor special features

CPU configuration (max)1
Embedded options availableNo
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID196603
Processor package size50 x 25 mm
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0, AVX-512
Thermal Monitoring TechnologiesYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery capacity62 Wh
Battery life (max)15 h

Power

AC adapter power65 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
DC-in jackYes
USB Power Delivery (USB PD)Yes

Security

Fingerprint readerNo
Trusted Platform Module (TPM)Yes
Password protectionYes
Password protection typePower on, Supervisor, User

Certificates

Compliance certificatesRoHS

Sustainability

Sustainability certificatesENERGY STAR

Weight & dimensions

Weight1.4 kg
Width322.4 mm
Depth212 mm
Height (front)1.5 cm
Height (rear)1.81 cm

Packaging content

AC adapter includedYes
ManualYes
Warranty cardYes

Other features

3DNo
TV tuner integratedNo
