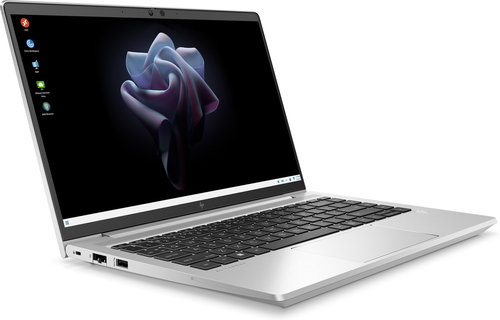

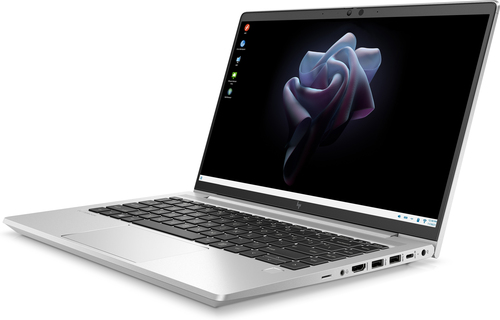

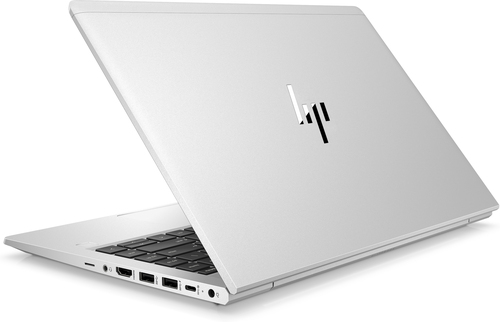

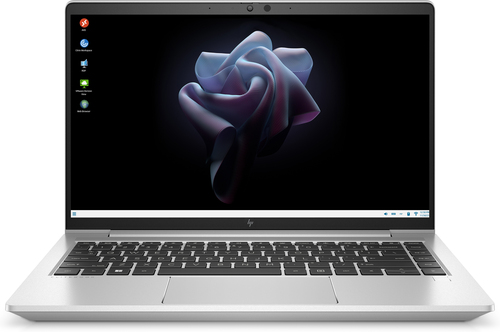

HP Elite mt645 G7

Elite mt645 G7

Model Elite mt645 G7Part no. 74R74AA#ABHEAN 197029257543

99 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: Elite mt645 G7
Part numbers: 74R74AA#ABH, 74R69AA, 74S15AA#ABH, 74S16AA#ABH, 11D36EA, 11D36EA#ABB +34 more
EAN / UPC: 197029257543, 197029257260, 197029257277, 197029257512 +56 more
Also known as: HP Elite mt645 G7 AMD Ryzen™ 5 5625U Mobile thin client 35.6 cm (14") Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 10 IoT Enterprise Silver

Specifications

99 specifications in 20 groups

Design

Specification	Value
Product type	Mobile thin client
Product colour	Silver
Form factor	Clamshell
Market positioning	Cloud computing
Introduction year	2022

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Anti-glare screen	Yes
Display bezel technology	Micro-Edge
Display brightness	250 cd/m²
Colour gamut	45%
Display diagonal (metric)	35.6 cm
RGB colour space	NTSC
Contrast ratio (typical)	600:1

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 5000 Series
Processor model	5625U
Processor cores	6
Processor threads	12
Processor boost frequency	4.3 GHz
Processor frequency	2.3 GHz
Processor cache	16 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
ECC	No
Number of free internal memory expansion slots	2

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera signal format	720p

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Realtek
WLAN controller model	Realtek RTL8852BE
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Near Field Communication (NFC)	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
Charging port type	DC-in jack
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	AMD SoC

Keyboard

Specification	Value
Pointing device	Clickpad
Keyboard backlit	Yes
Numeric keypad	No
Spill-resistant keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10 IoT Enterprise

Brand-specific features

Specification	Value
HP GTIN (EAN/UPC)	197029257420

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh
Battery voltage	11.4 V

Power

Specification	Value
AC adapter power	65 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Sustainable technologies and materials	Low Halogen

Weight & dimensions

Specification	Value
Weight	1.38 kg
Width	321.9 mm
Depth	213.9 mm
Height	19.9 mm

Technical details

Specification	Value
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
