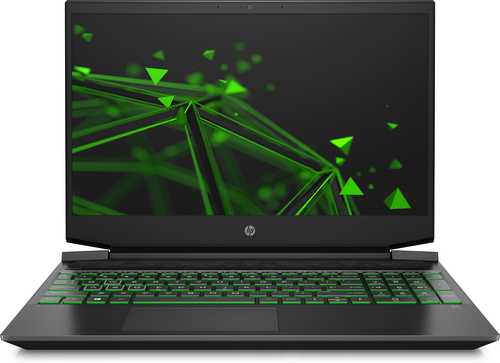

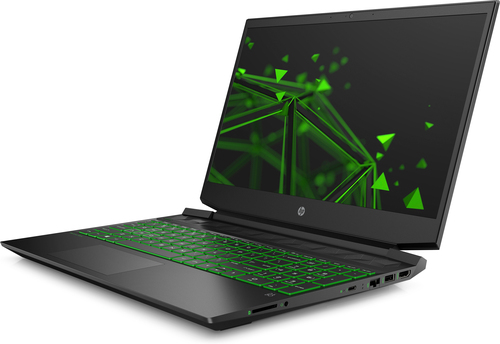

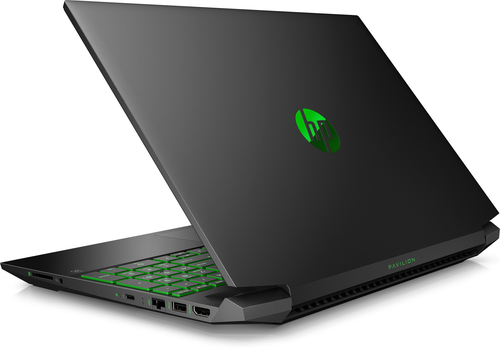

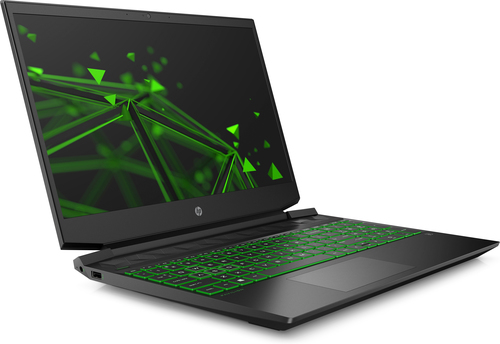

HP Pavilion Gaming 15-ec1169ng AMD Ryzen™ 7 4800H Laptop

Pavilion Gaming 15-ec1169ng AMD Ryzen™ 7 4800H Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce GTX 1660 Ti Max-Q Wi-Fi 5 (802.11ac)

Model 15-ec1169ngPart no. 2F2D9EA

106 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce GTX 1660 Ti Max-Q

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce GTX 1660 Ti Max-Q

Brand: HP
Category: Laptop
Model: 15-ec1169ng
Part number: 2F2D9EA
Also known as: HP Pavilion Gaming 15-ec1169ng AMD Ryzen™ 7 4800H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce GTX 1660 Ti Max-Q Wi-Fi 5 (802.11ac)

Specifications

106 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	250 cd/m²
Colour gamut	45%
Display diagonal (metric)	39.6 cm
RGB colour space	NTSC
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 4000 Series
Processor model	4800H
Processor cores	8
Processor boost frequency	4.2 GHz
Processor frequency	2.9 GHz
Processor cache	8 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce GTX 1660 Ti Max-Q
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	AMD Radeon Graphics
NVIDIA Max-Q	Yes

Audio

Specification	Value
Audio system	Bang & Olufsen
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller model	Realtec RTL8822CE
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Miracast	Yes
MIMO	Yes
MIMO type	Multi User MIMO

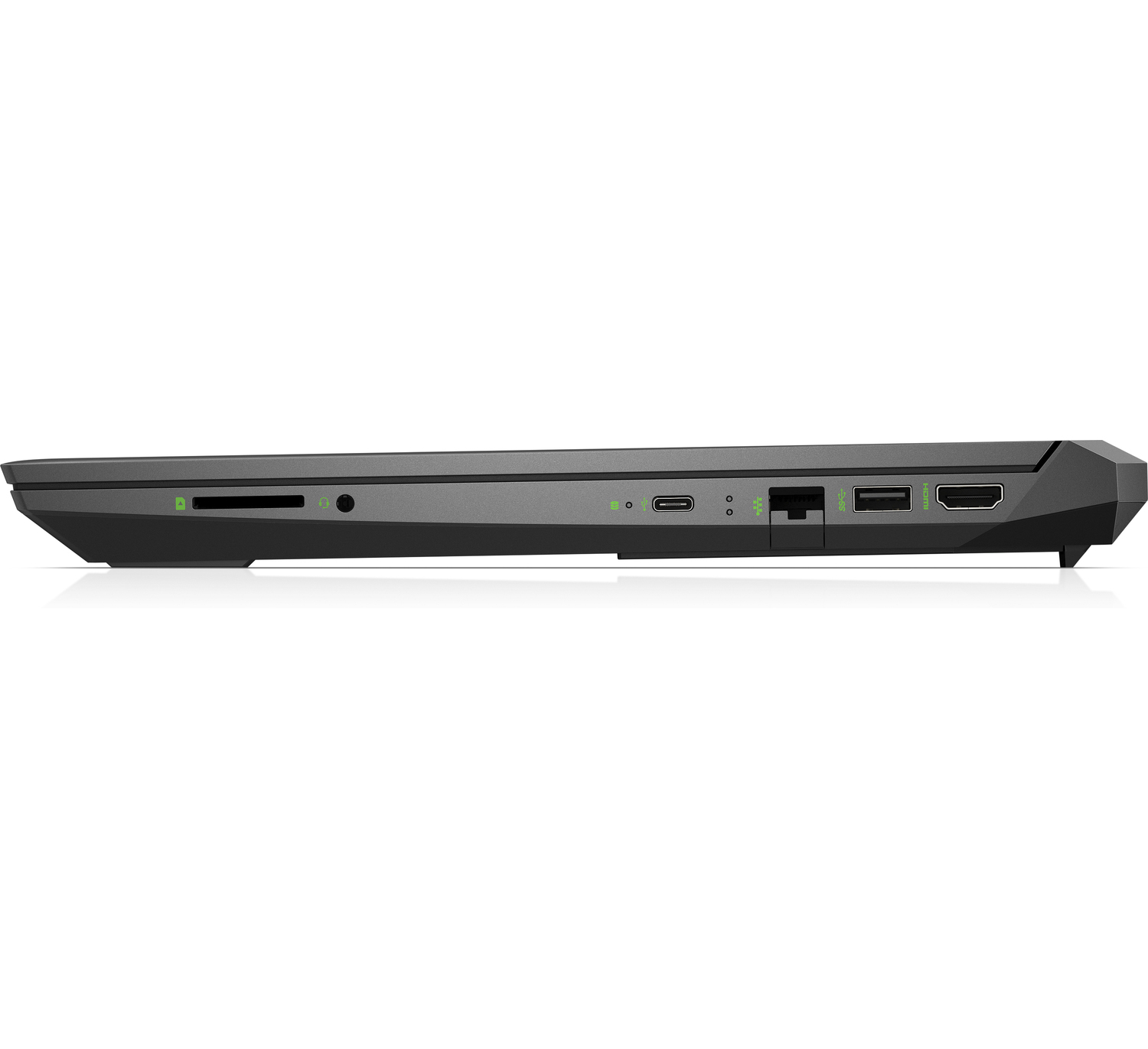

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	AMD SoC
Accelerometer	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	FreeDOS

Brand-specific features

Specification	Value
HP Audio Boost	Yes
HP speaker type	HP Dual Speakers
HP Smart AC Adapter	Yes
HP Imagepad	Yes
HP front camera	HP TrueVision HD
HP segment	Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery capacity	52.5 Wh
Fast charging	Yes
Fast charging time (50%)	45 min
Battery weight	210 g

Power

Specification	Value
AC adapter power	200 W
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.98 kg
Width	360 mm
Depth	257 mm
Height	23.5 mm

Packaging data

Specification	Value
Package width	69 mm
Package depth	520 mm
Package height	305 mm
Package weight	2.93 kg
