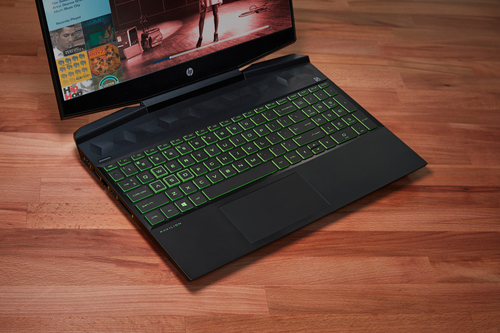

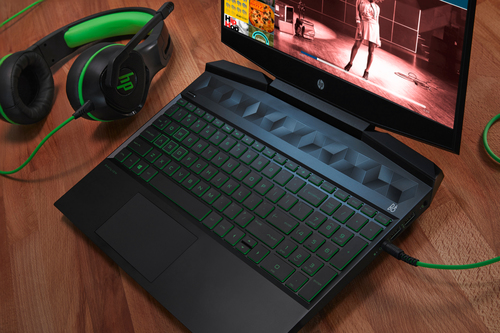

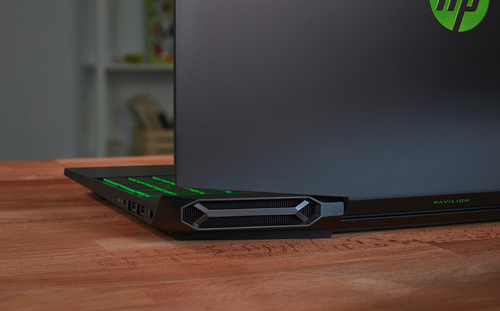

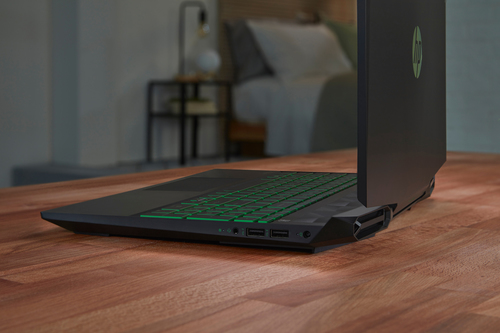

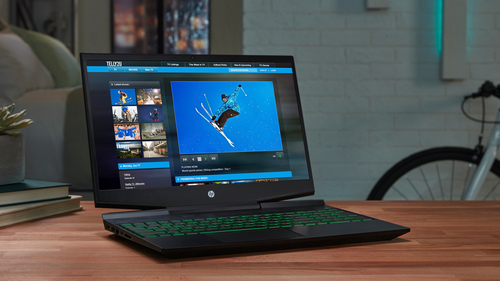

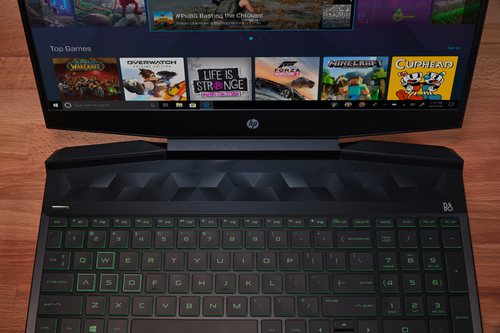

Pavilion Gaming 15-dk0010na Intel® Core™ i5 i5-9300H Laptop

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) W

Model 15-dk0010naPart no. 7DZ22EAEAN 193905344772

168 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNVIDIA® GeForce® GTX 1650

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: NVIDIA® GeForce® GTX 1650

Brand: HP
Category: Laptop
Model: 15-dk0010na
Part number: 7DZ22EA
EAN / UPC: 193905344772
Also known as: HP Pavilion Gaming 15-dk0010na Intel® Core™ i5 i5-9300H Laptop 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) W

Specifications

168 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Intel® vPro™ Platform Eligibility	No
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display bezel technology	Micro-Edge
Display brightness	300 cd/m²
Colour gamut	72%
Display diagonal (metric)	39.6 cm
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	9th gen Intel® Core™ i5
Processor model	i5-9300H
Processor cores	4
Processor threads	8
Processor boost frequency	4.1 GHz
Processor frequency	2.4 GHz
System bus rate	8 GT/s
Processor cache	8 MB
Processor cache type	L3
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Memory slots (available)	2
ECC	No

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	NVMe
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce® GTX 1650
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E9B

Audio

Specification	Value
Audio system	Bang & Olufsen
Number of built-in speakers	2
Speakers manufacturer	Bang & Olufsen
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	2

Performance

Specification	Value
Motherboard chipset	Intel® HM370
Accelerometer	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	191075
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes

Brand-specific features

Specification	Value
HP OMEN Command Center	Yes
HP JumpStart	Yes
HP 3D DriveGuard	Yes
HP CoolSense	Yes
HP Audio Boost	Yes
HP speaker type	HP Dual Speakers
HP Audio Switch	Yes
HP Support Assistant	Yes
HP Imagepad	Yes
HP front camera	HP Wide Vision HD
HP segment	Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery capacity	52.5 Wh
Fast charging	Yes
Fast charging time (50%)	45 min

Power

Specification	Value
AC adapter power	150 W

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.25 kg
Width	360 mm
Depth	256 mm
Height	23.4 mm

Packaging data

Specification	Value
Package width	520 mm
Package depth	69 mm
Package height	305 mm

Packaging content

Specification	Value
AC adapter included	Yes
Power cord included	Yes
