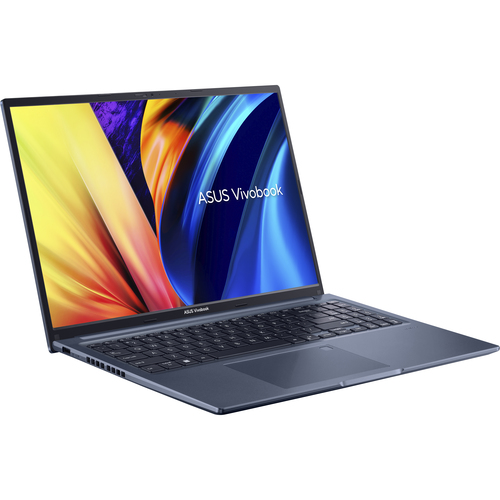

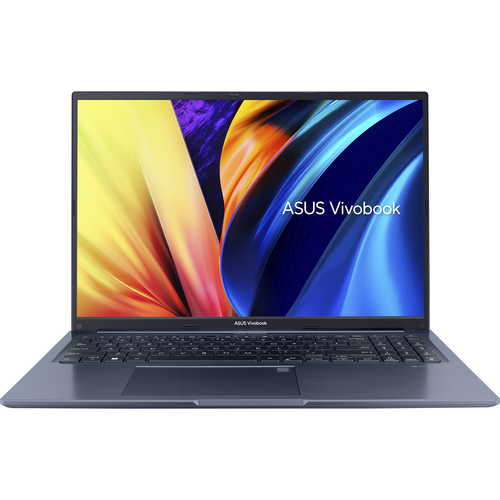

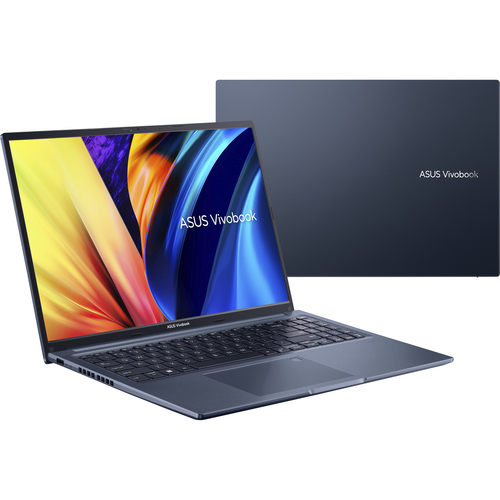

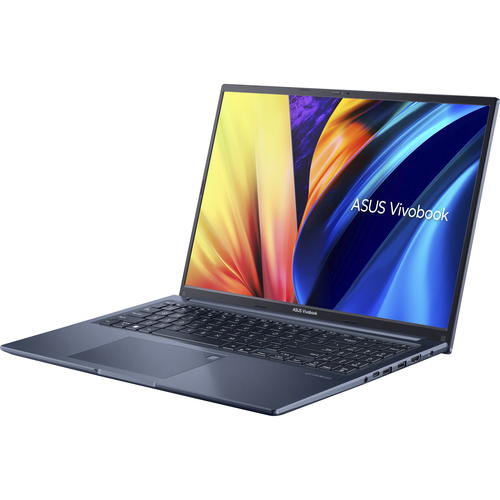

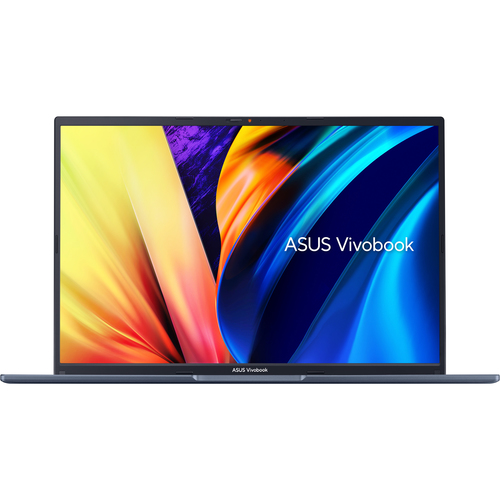

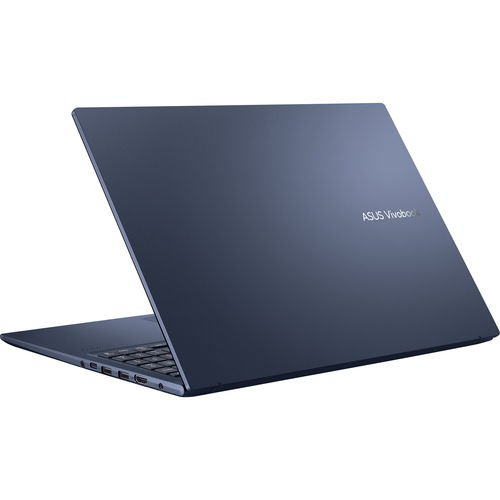

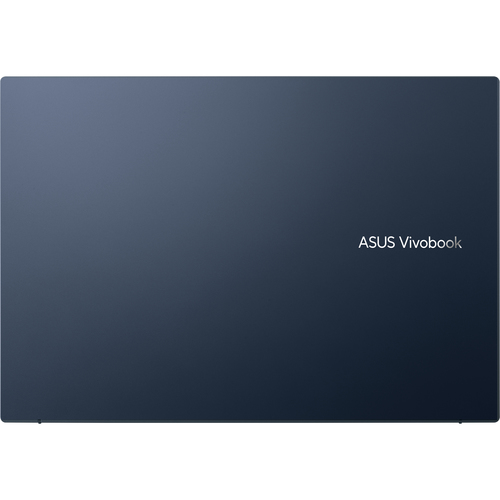

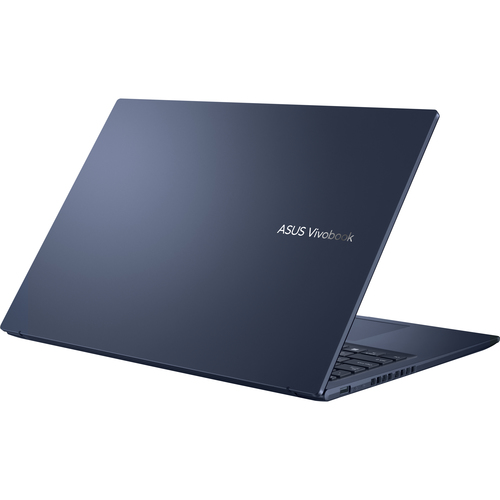

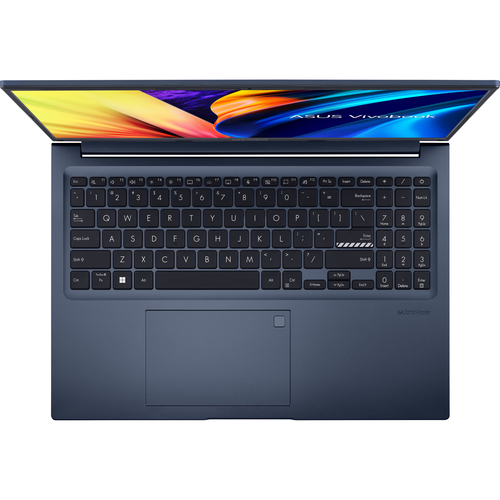

ASUS Vivobook 16X X1603ZA-MB110 Intel® Core™ i5 i5-12500H Laptop

Vivobook 16X X1603ZA-MB110 Intel® Core™ i5 i5-12500H Laptop

40.6 cm (16") WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Blue

Model X1603ZA-MB110Part no. 90NB0WB1-M00550EAN 4711081780557

94 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: X1603ZA-MB110
Part number: 90NB0WB1-M00550
EAN / UPC: 4711081780557
Also known as: ASUS Vivobook 16X X1603ZA-MB110 Intel® Core™ i5 i5-12500H Laptop 40.6 cm (16") WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Blue

Specifications

94 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Quiet Blue
Form factor	Clamshell
Market positioning	Home

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-12500H
Processor cores	12
Processor boost frequency	4.5 GHz
Processor cache	18 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes
Power adapter barrel connector	4.5 mm

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.88 kg
Width	358.6 mm
Depth	249.5 mm
Height	19.9 mm
