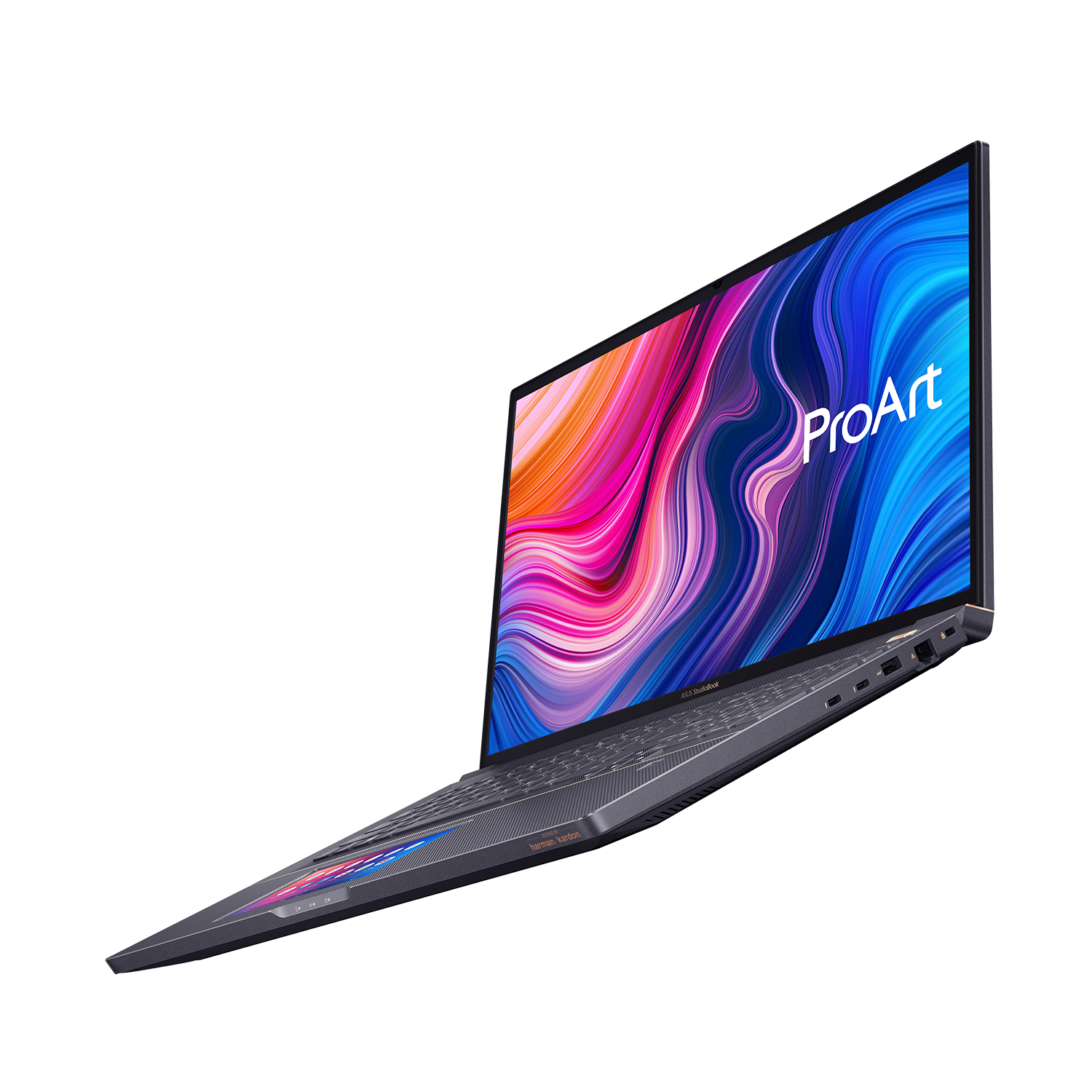

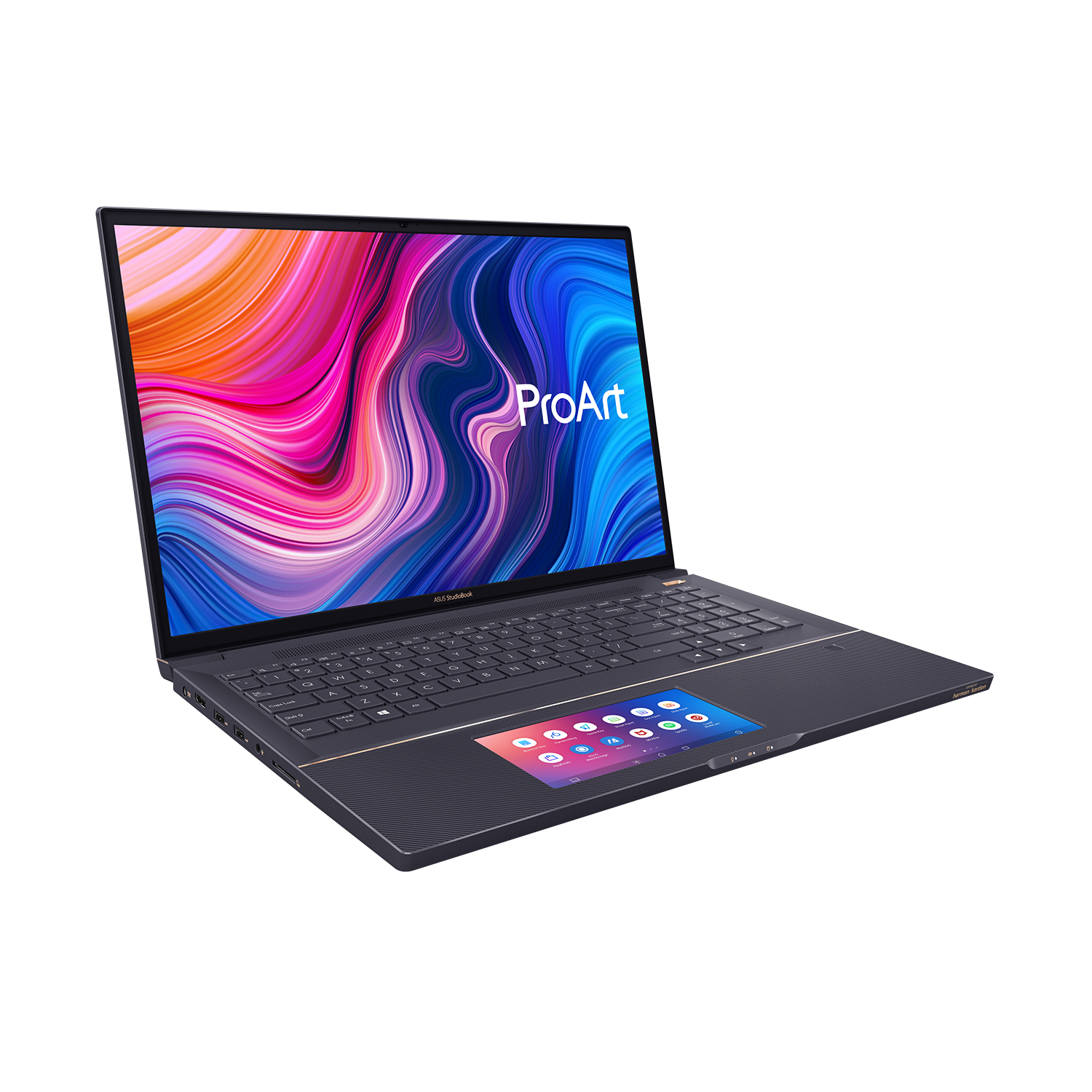

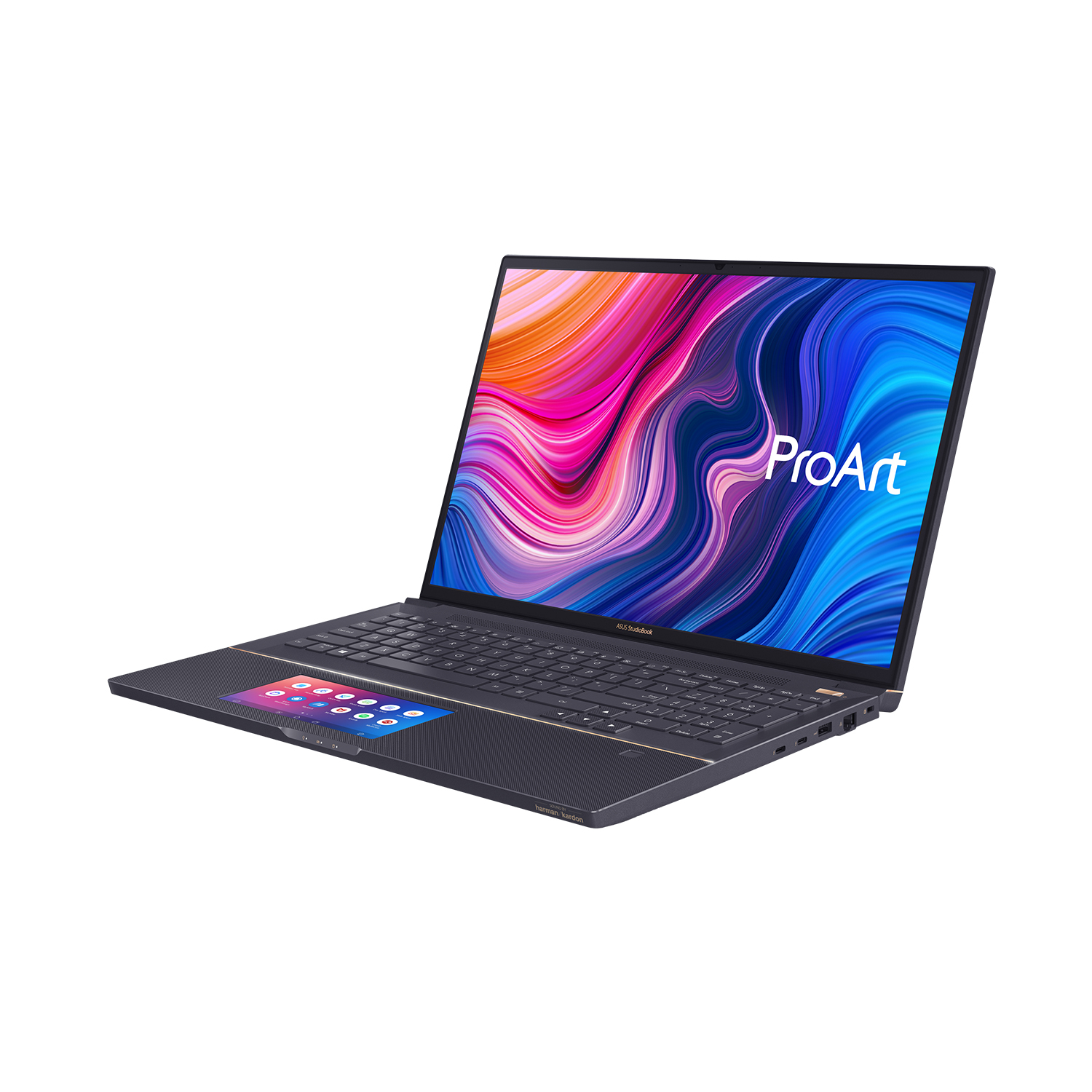

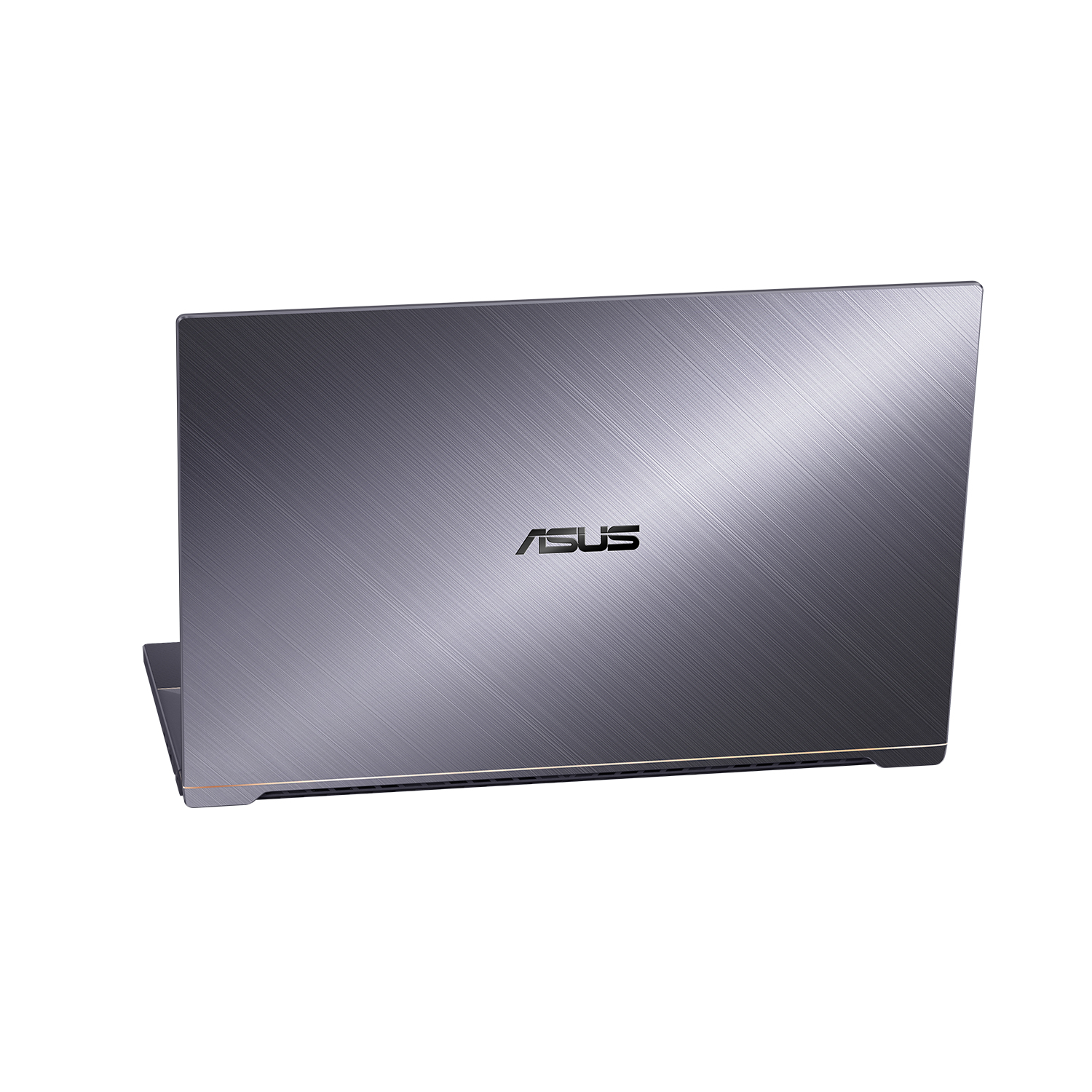

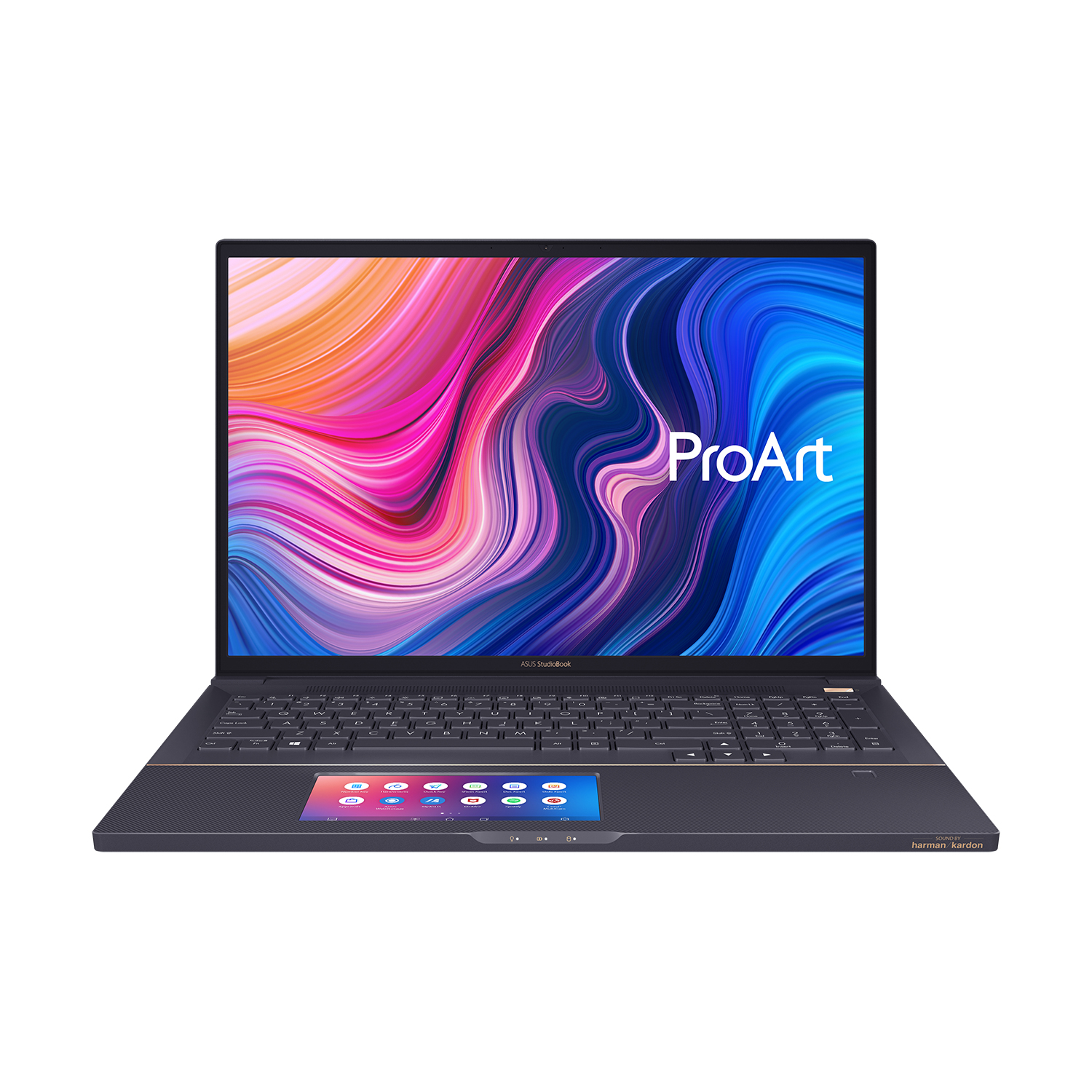

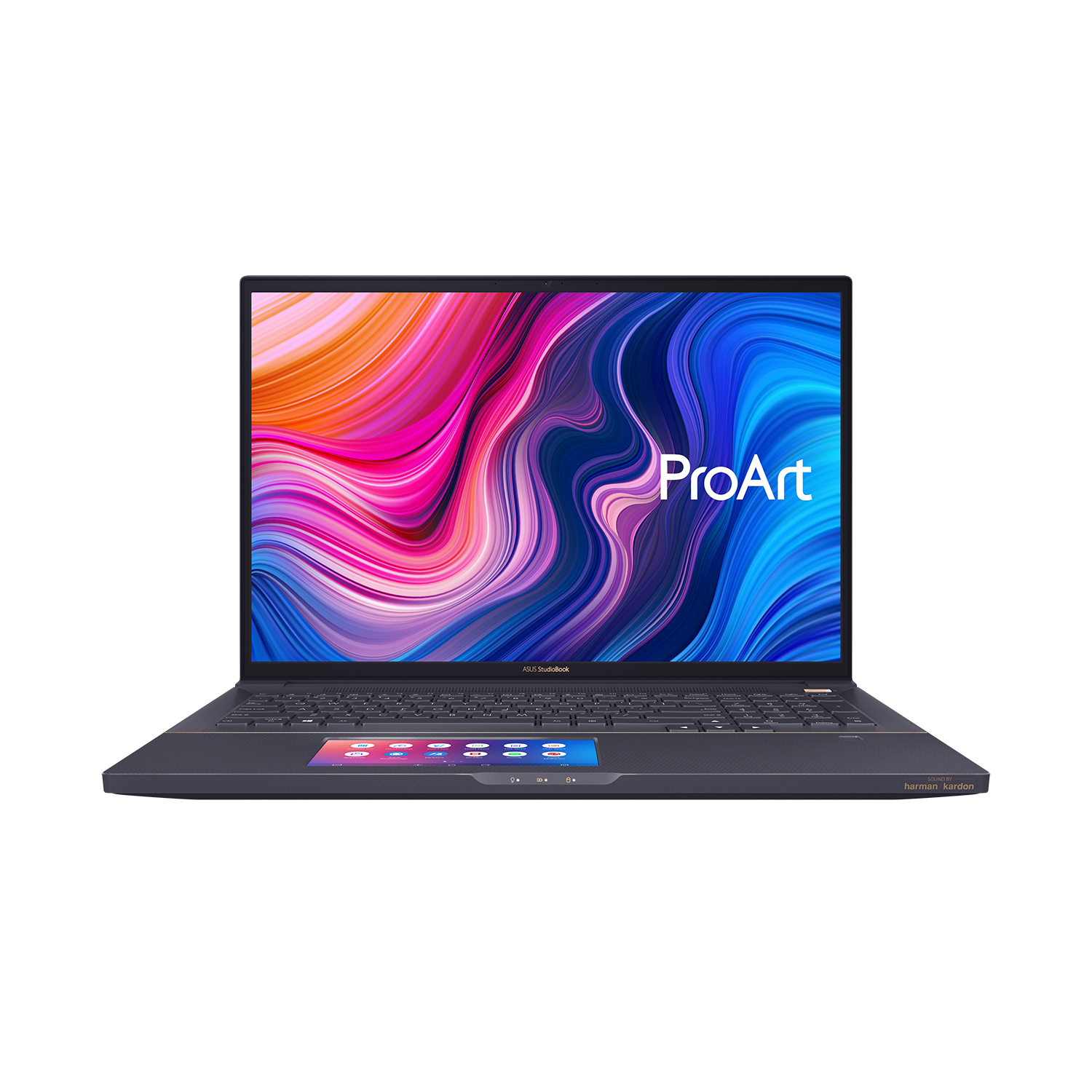

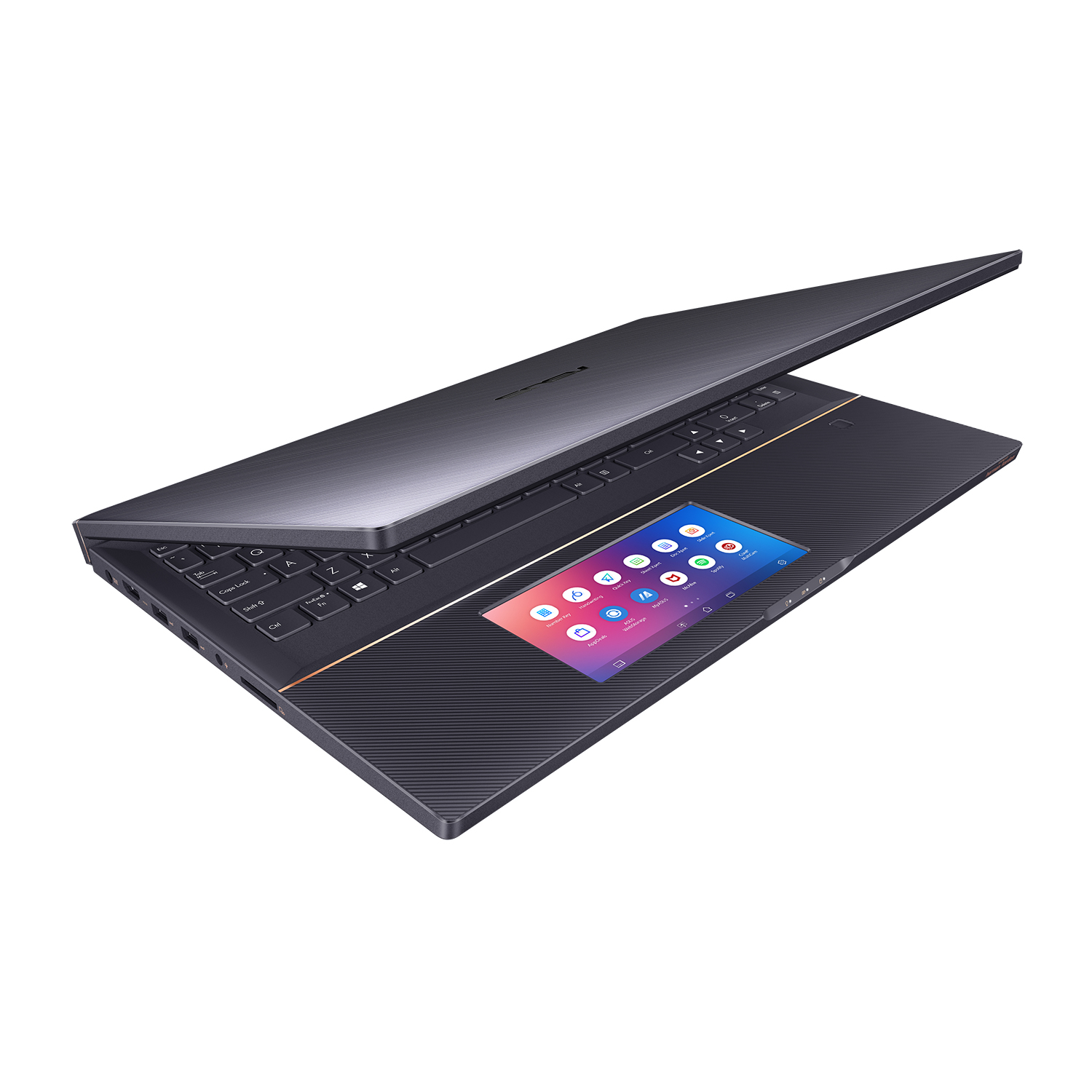

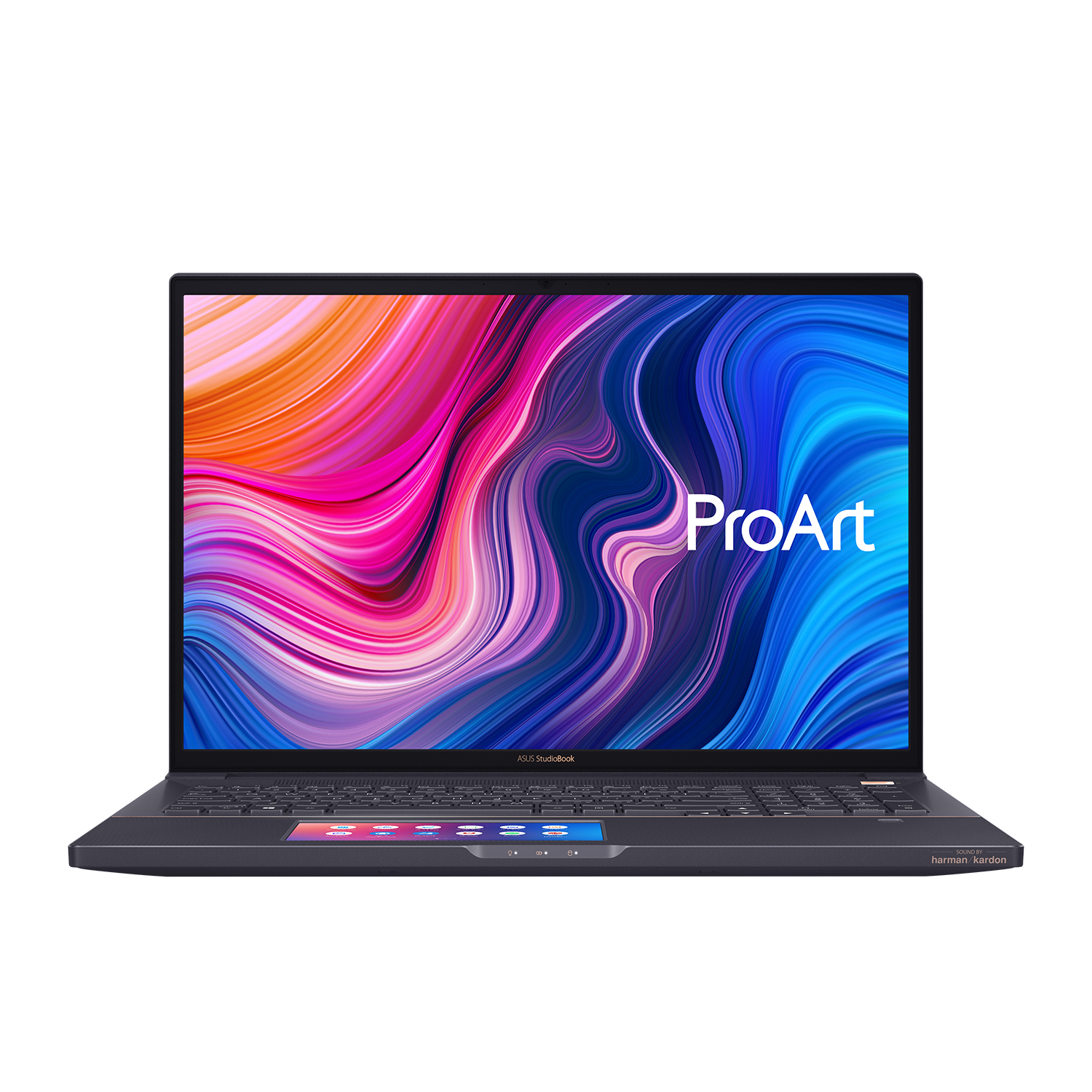

ASUS ProArt StudioBook Pro X W730G5T-AV009T laptop Intel Xeon E E-2276M

ProArt StudioBook Pro X W730G5T-AV009T laptop Intel Xeon E E-2276M

43.2 cm (17") WUXGA 64 GB DDR4-SDRAM 4 TB SSD NVIDIA Quadro RTX 5000 Wi-Fi 6 (802.11ax)

Model W730G5T-AV009T

107 specifications Checked today

Display43.2 cm (17")
Resolution1920 x 1200 pixels
ProcessorIntel Xeon E
Memory64 GB
Storage4 TB
GraphicsNVIDIA Quadro RTX 5000

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1920 x 1200 pixels
Processor: Intel Xeon E
Memory: 64 GB
Storage: 4 TB
Graphics: NVIDIA Quadro RTX 5000

Brand: ASUS
Category: Laptop
Model: W730G5T-AV009T
Part number: W730G5T-AV009T
Also known as: ASUS ProArt StudioBook Pro X W730G5T-AV009T laptop Intel Xeon E E-2276M 43.2 cm (17") WUXGA 64 GB DDR4-SDRAM 4 TB SSD NVIDIA Quadro RTX 5000 Wi-Fi 6 (802.11ax)

Specifications

107 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Star Grey
Form factor	Clamshell

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	97%
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2276M
Processor cores	6
Processor boost frequency	4.7 GHz
Processor frequency	2.8 GHz
Processor cache	12 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory form factor	SO-DIMM
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	4 TB
Storage media	SSD
Total SSDs capacity	4 TB
Number of SSDs installed	2
SSD capacity	2 TB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA Quadro RTX 5000
Discrete graphics card memory	16 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel UHD Graphics P630

Audio

Specification	Value
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0a
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
Power adapter barrel connector	6.0 mm
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	6.9

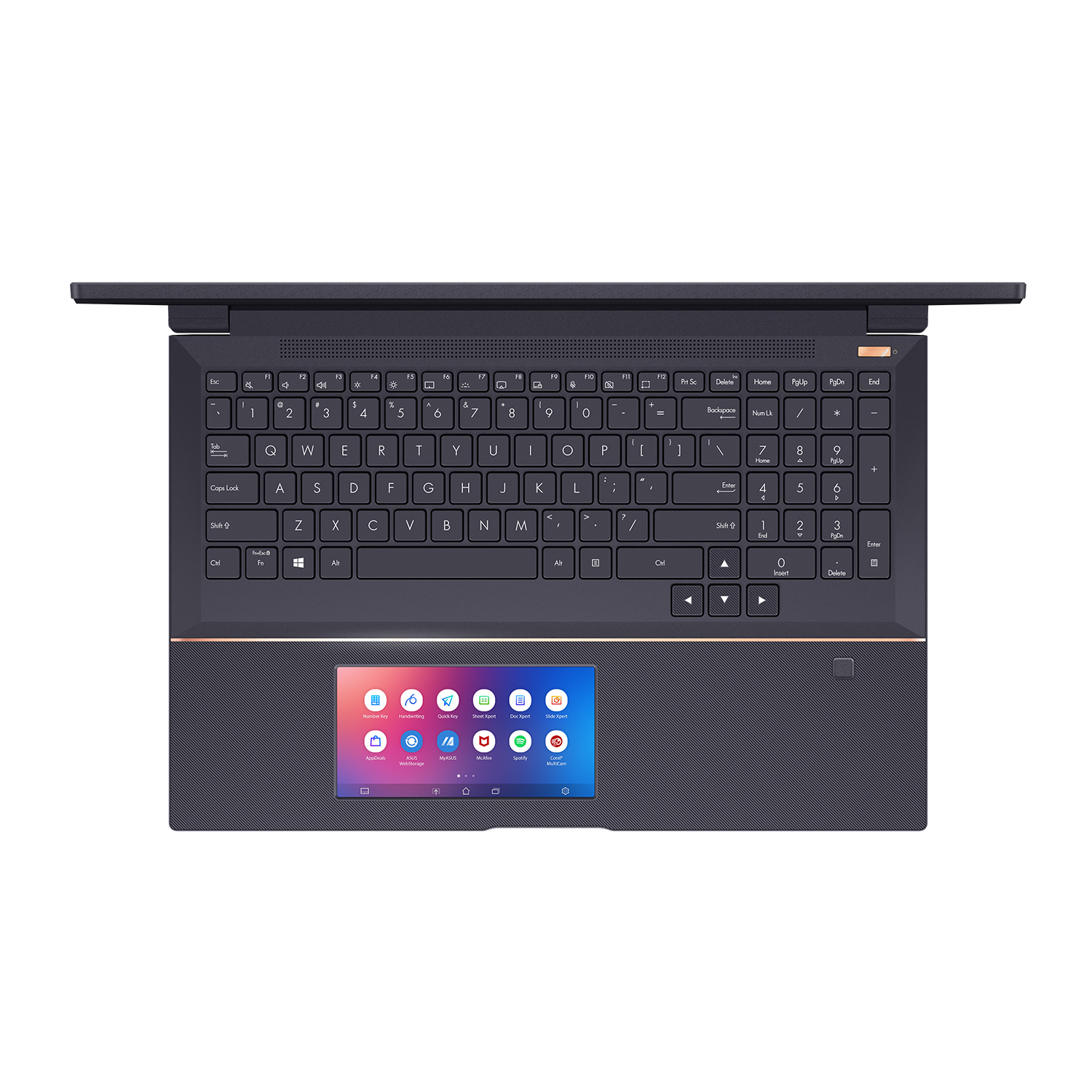

Keyboard

Specification	Value
Pointing device	ScreenPad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	382 mm
Depth	265 mm
Height (front)	2.82 cm
Height (rear)	3.02 cm
