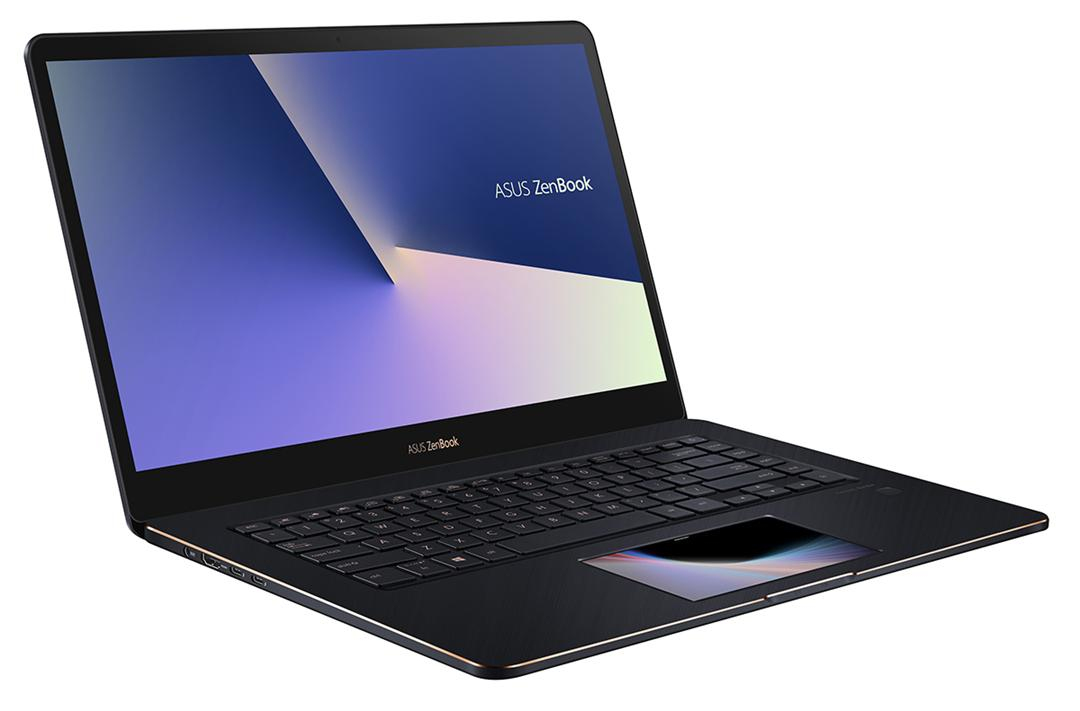

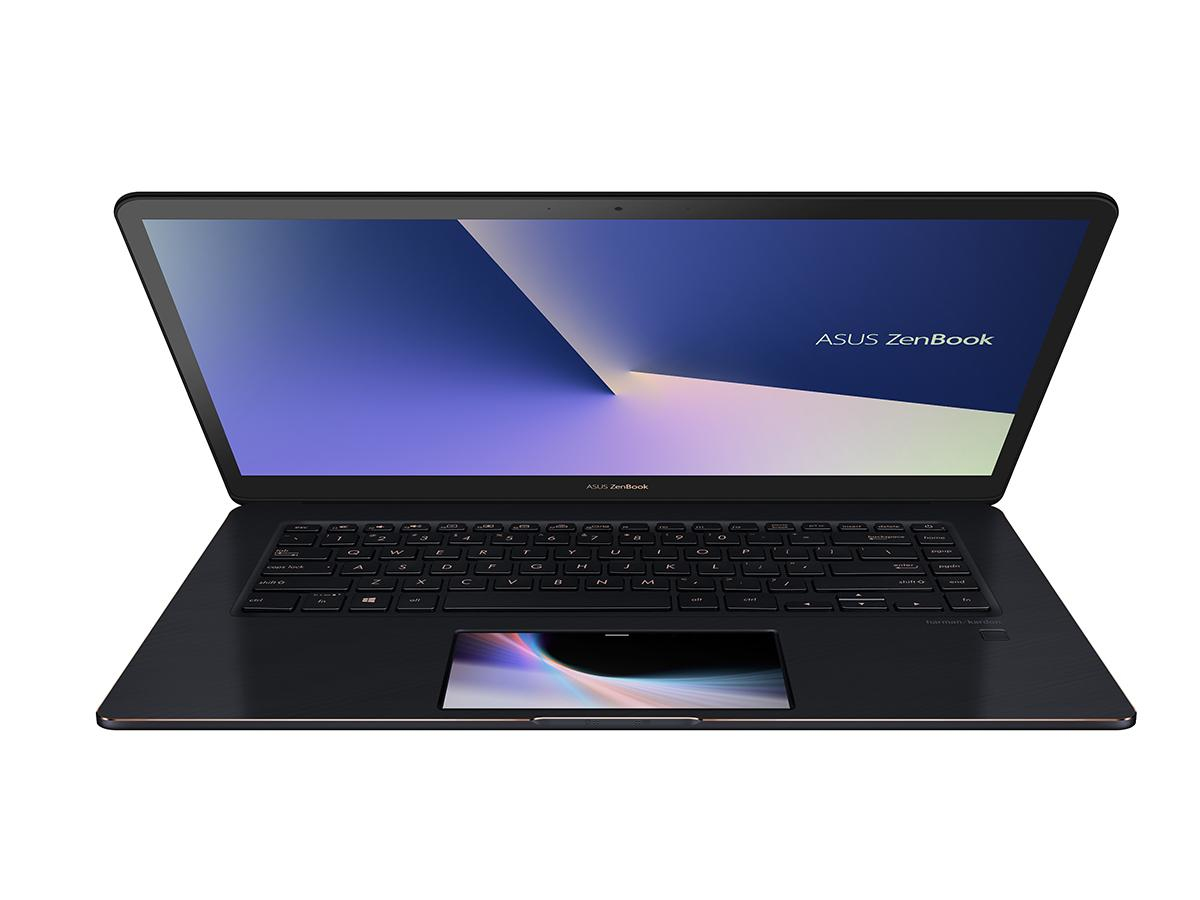

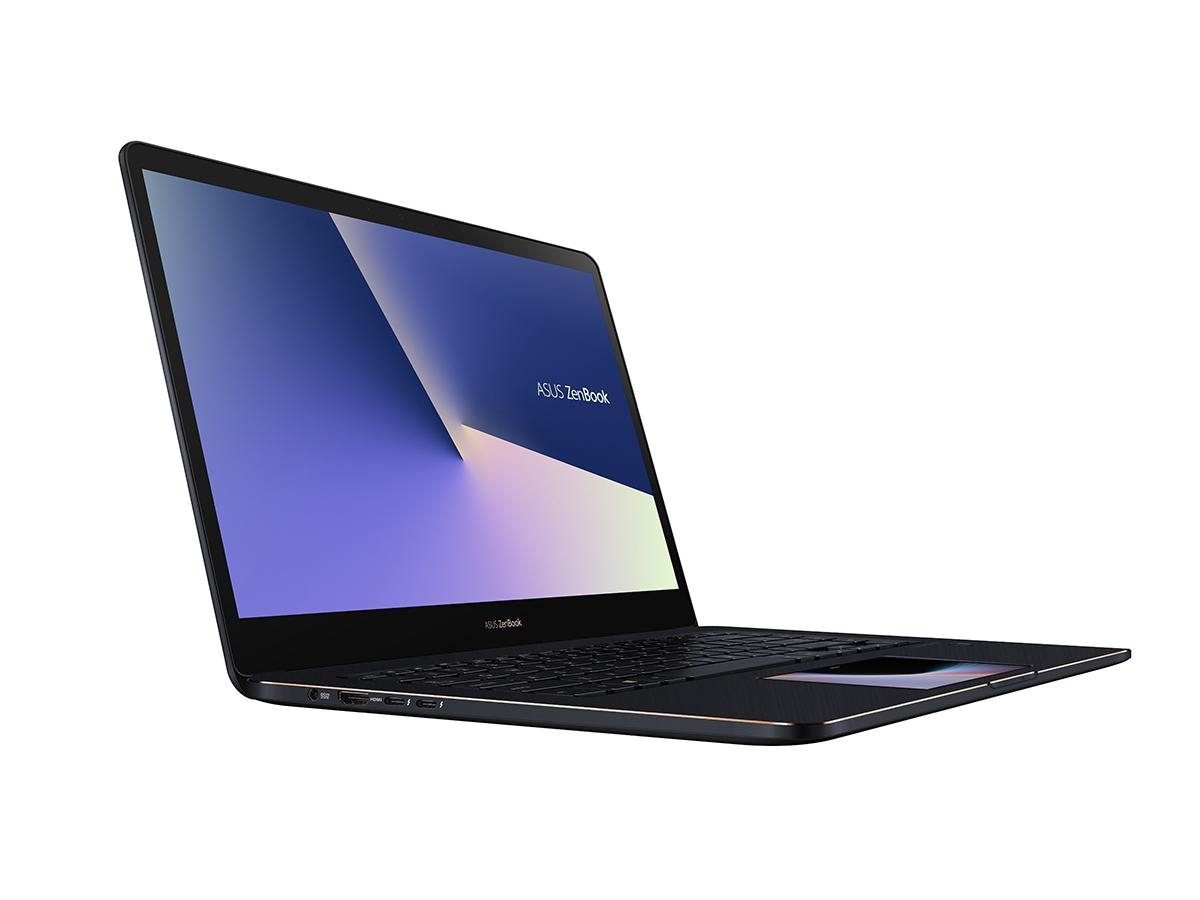

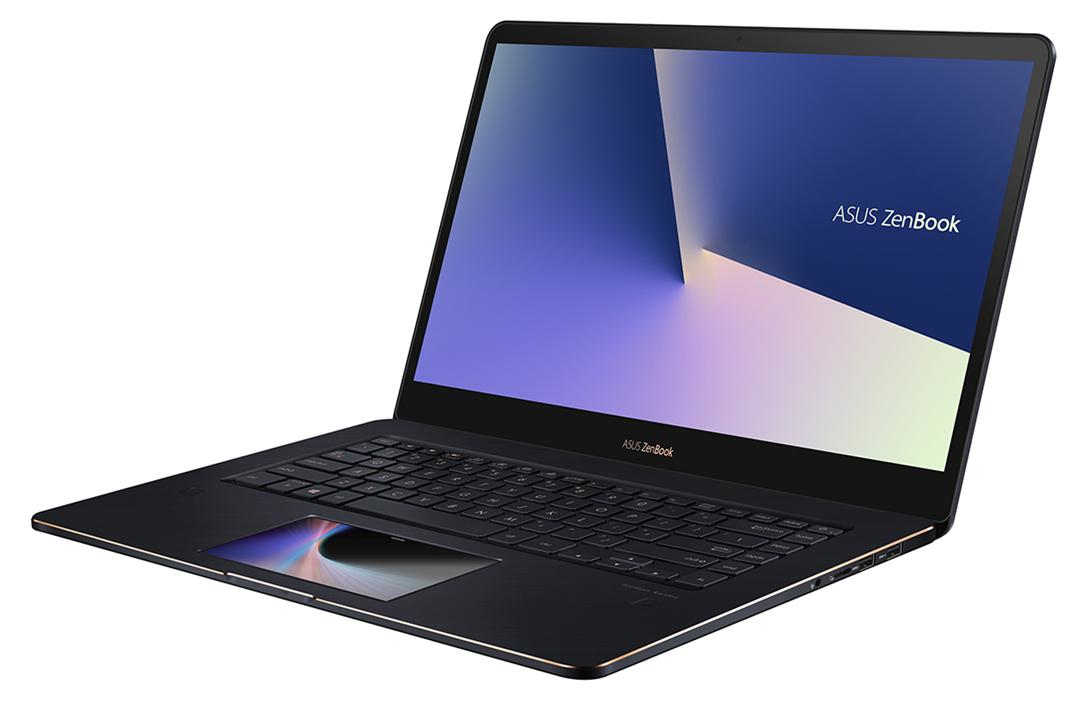

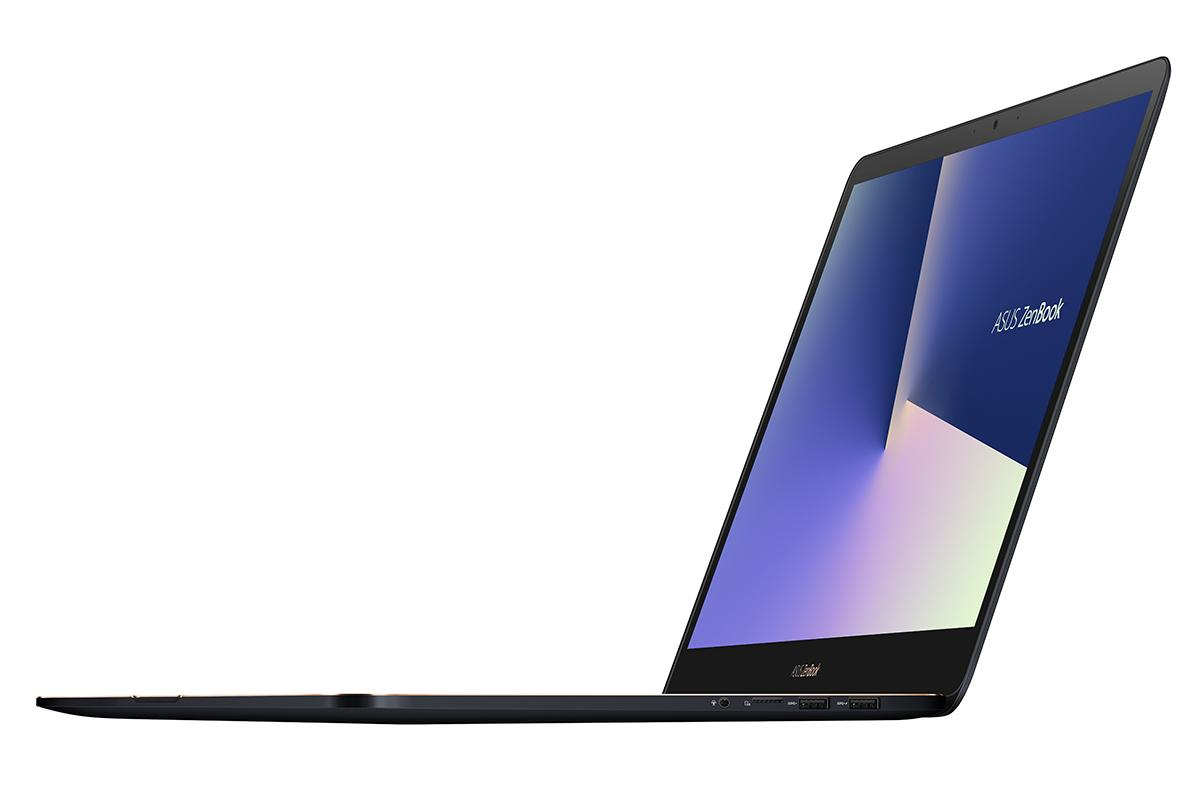

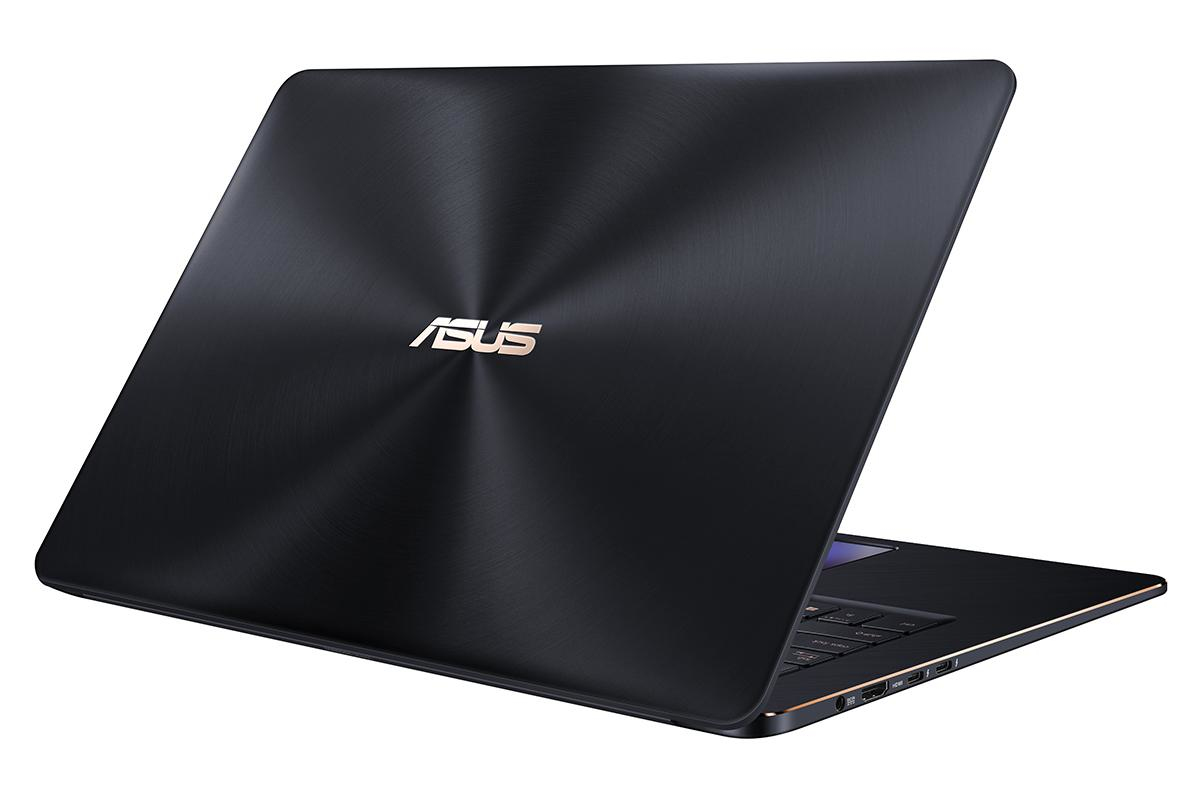

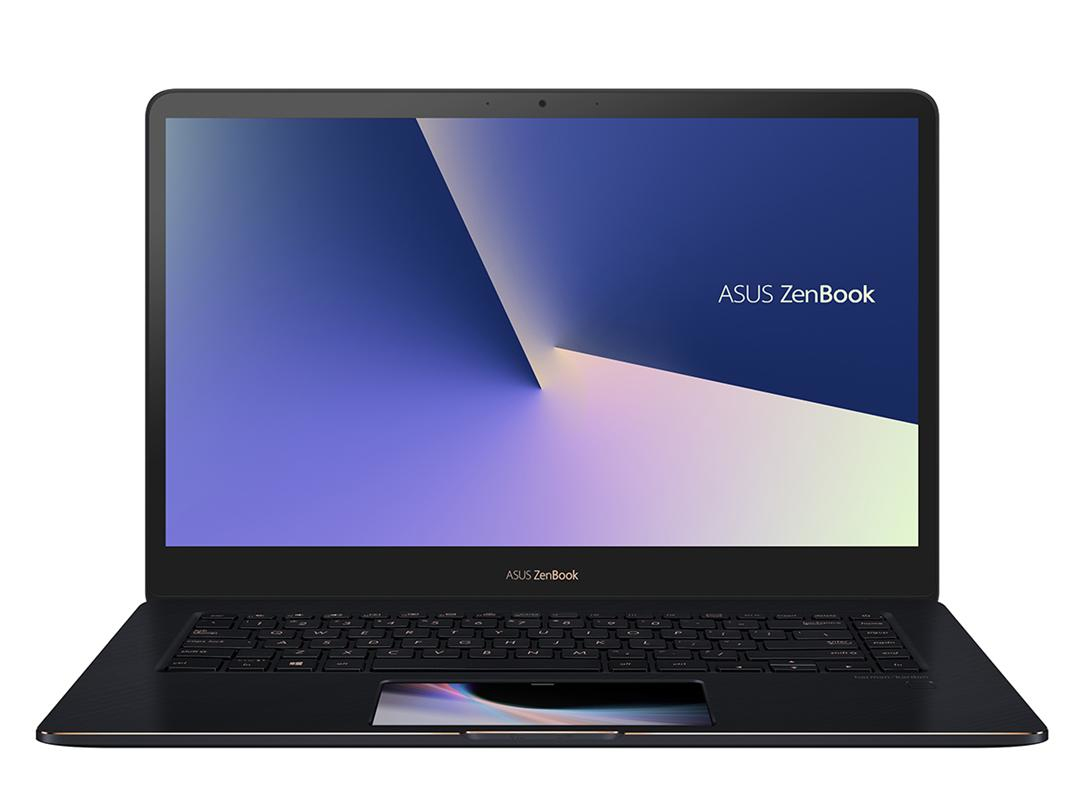

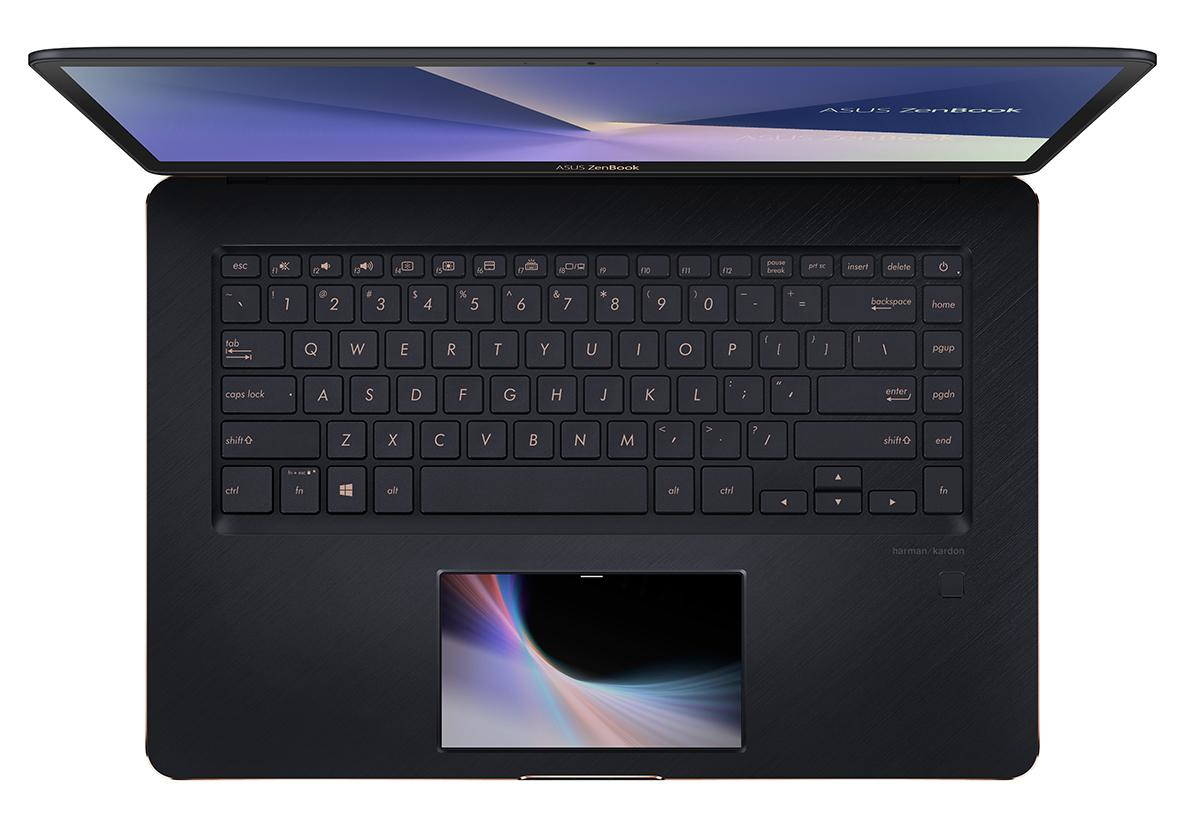

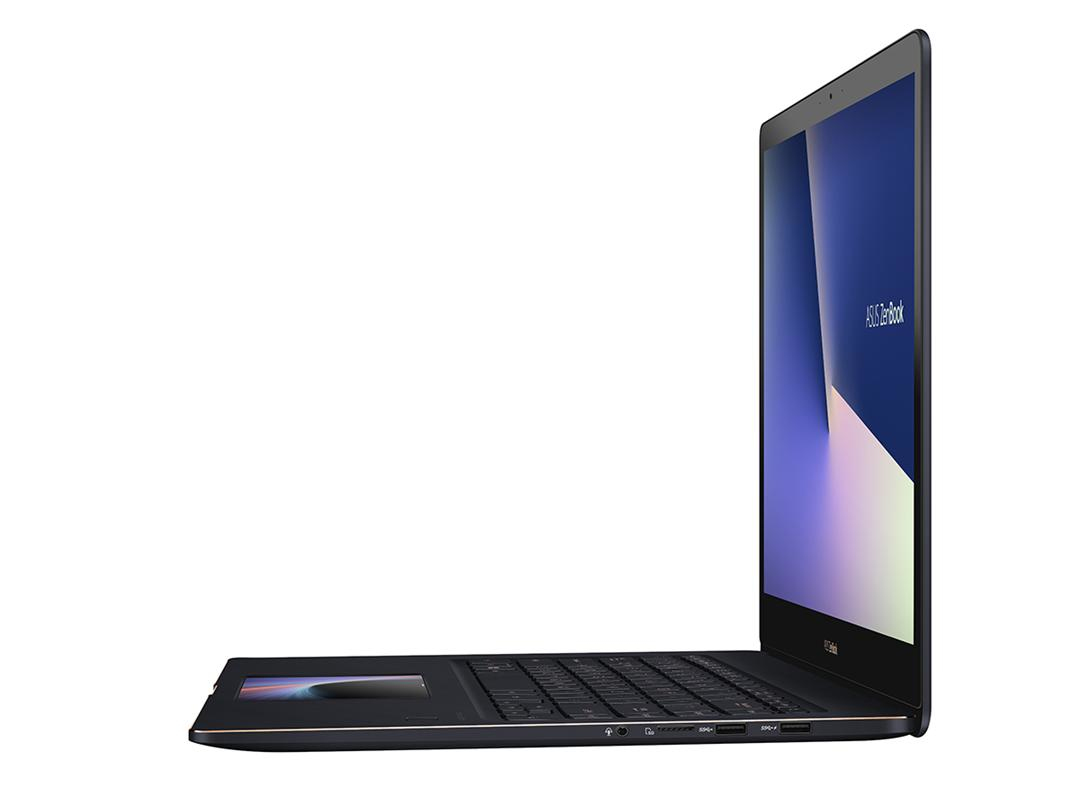

Zenbook Pro 15 UX580GE-E2014T Intel® Core™ i7 i7-8750H Laptop

39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB LPDDR3-SDRAM 1 TB SSD NVIDIA® GeForce® GTX 1050

Model UX580GE-E2014TPart no. 90NB0I83-M01810

109 specifications Checked today

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GTX 1050 Ti

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GTX 1050 Ti

Brand: ASUS
Category: Laptop
Model: UX580GE-E2014T
Part number: 90NB0I83-M01810
Also known as: ASUS Zenbook Pro 15 UX580GE-E2014T Intel® Core™ i7 i7-8750H Laptop 39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB LPDDR3-SDRAM 1 TB SSD NVIDIA® GeForce® GTX 1050

Specifications

109 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Deep Dive Blue
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	Yes
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	350 cd/m²
Colour gamut	100%
RGB colour space	sRGB

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8750H
Processor cores	6
Processor boost frequency	4.1 GHz
Processor frequency	2.2 GHz
Processor cache	9 MB
Bus type	DMI
Configurable TDP-down	35 W
Configurable TDP-down frequency	1.7 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce® GTX 1050 Ti
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Intel® UHD Graphics 630

Audio

Specification	Value
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
Power adapter barrel connector	4.5 mm
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	ScreenPad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery capacity	71 Wh

Power

Specification	Value
AC adapter power	150 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	7.89 A
AC adapter output voltage	19 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	1.88 kg
Width	365 mm
Depth	251 mm
Height (front)	1.55 cm
Height (rear)	1.89 cm

Packaging content

Specification	Value
Interface adapters included	USB male - Ethernet LAN (RJ-45) female
