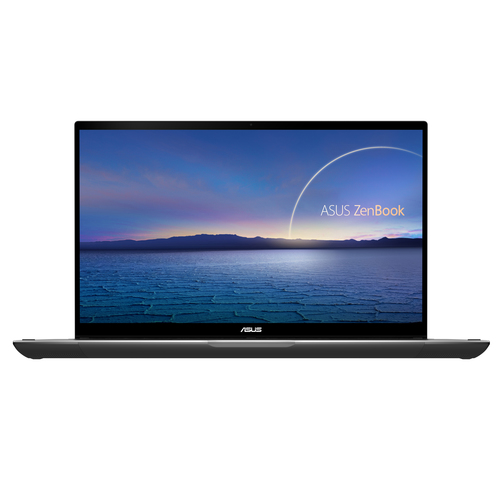

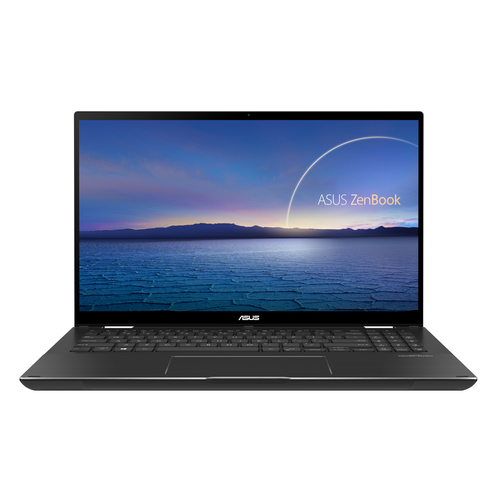

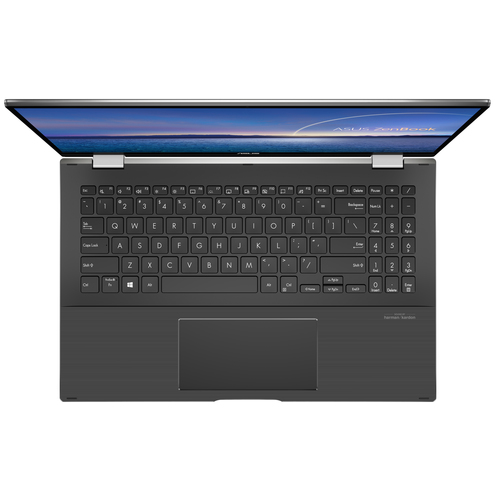

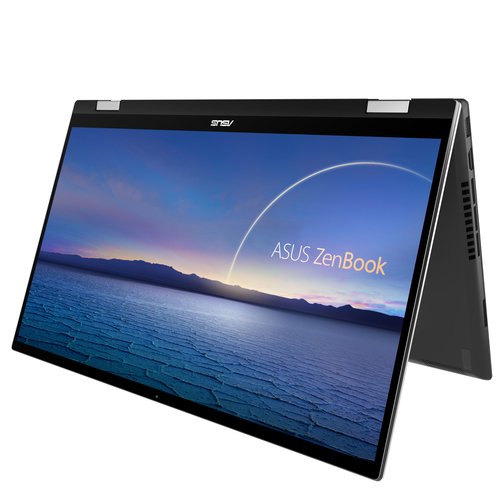

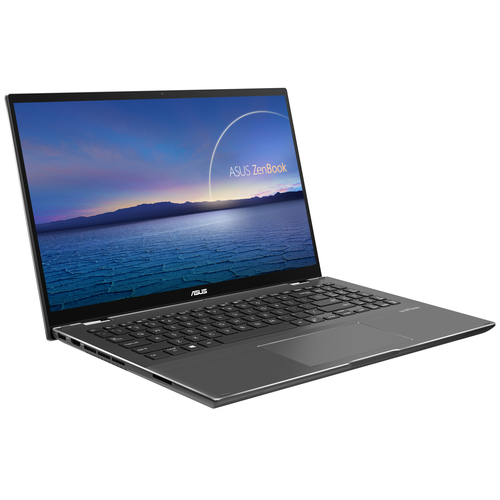

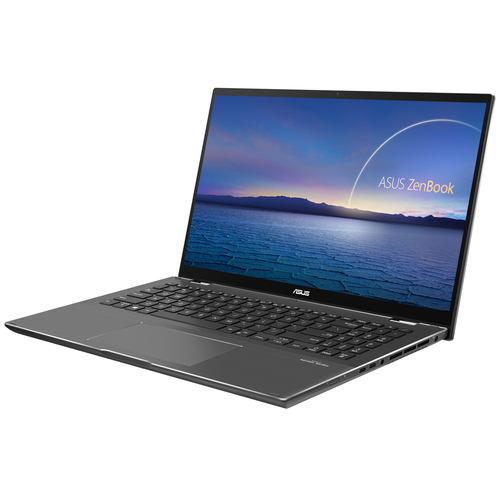

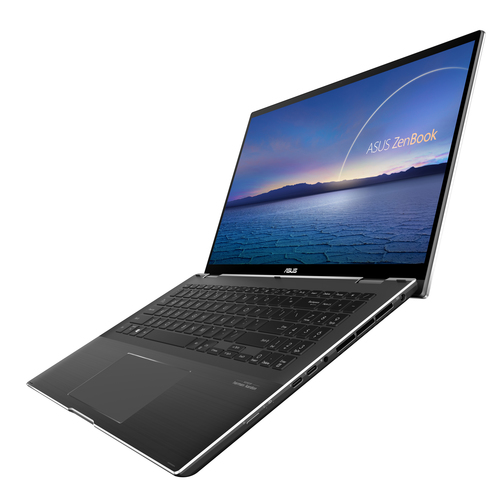

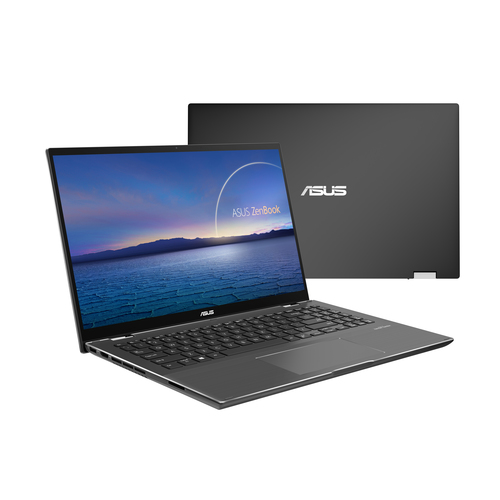

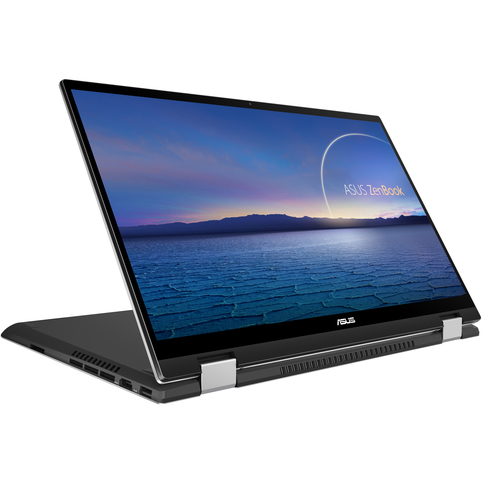

Zenbook Flip UX564PH-EZ004T laptop Intel® Core™ i7 i7-11370H Hybrid (2-in-1)
39.6 cm (15.6") Touchscreen Full HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce®
Model UX564PH-EZ004T
85 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® GTX 1650
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® GTX 1650
- Brand
- ASUS
- Category
- Laptop
- Model
- UX564PH-EZ004T
- Part number
- UX564PH-EZ004T
- Also known as
- ASUS Zenbook Flip UX564PH-EZ004T laptop Intel® Core™ i7 i7-11370H Hybrid (2-in-1) 39.6 cm (15.6") Touchscreen Full HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce®
Specifications
85 specifications in 17 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Grey |
| Form factor | Convertible (Folder) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Colour gamut | 100% |
| RGB colour space | sRGB |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor model | i7-11370H |
| Processor cores | 4 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 3.3 GHz |
| Configurable TDP-up | 35 W |
| Configurable TDP-down | 28 W |
| Configurable TDP-down frequency | 3 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory form factor | On-board |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1650 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Audio system | SonicMaster |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
Keyboard
| Specification | Value |
|---|---|
| Numeric keypad | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity | 96 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 120 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6 A |
| AC adapter output voltage | 20 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.9 kg |
| Width | 356 mm |
| Depth | 230.8 mm |
| Height | 19.9 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
