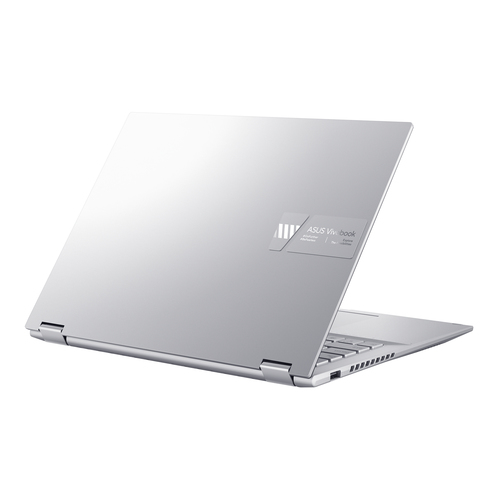

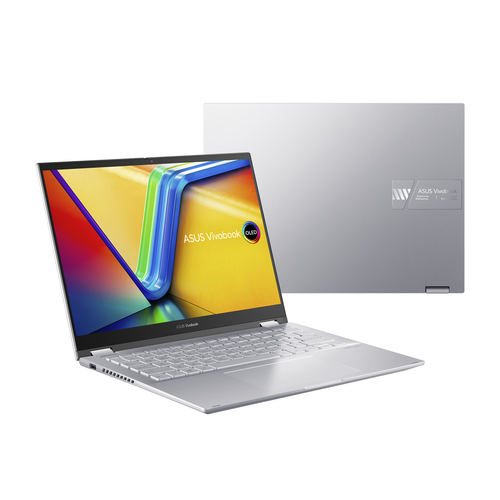

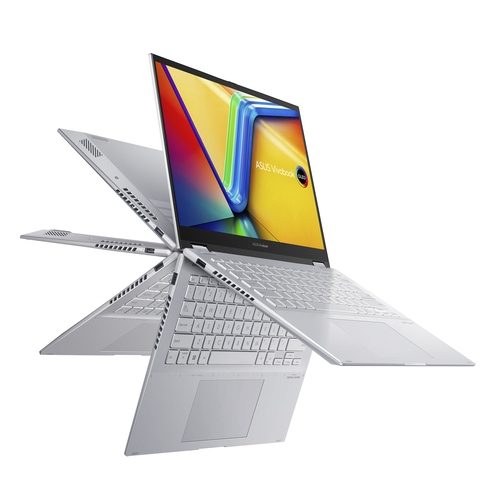

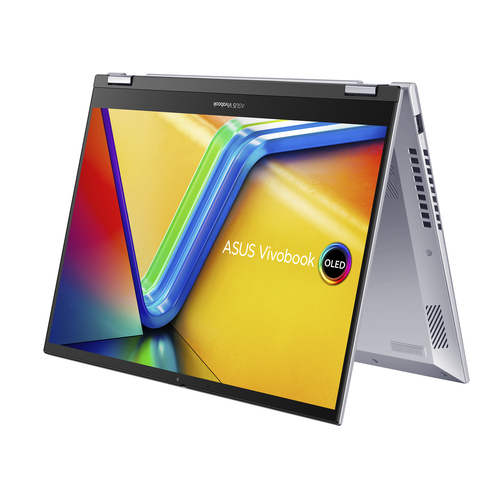

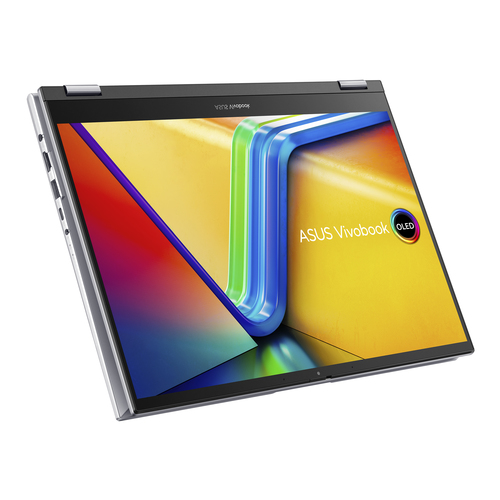

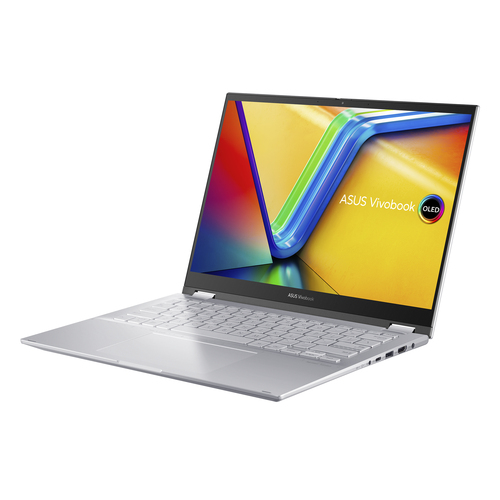

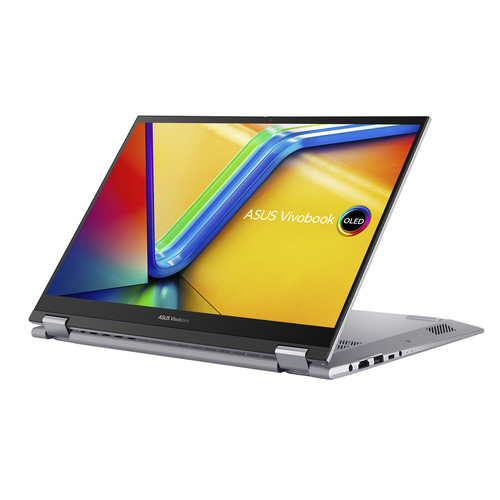

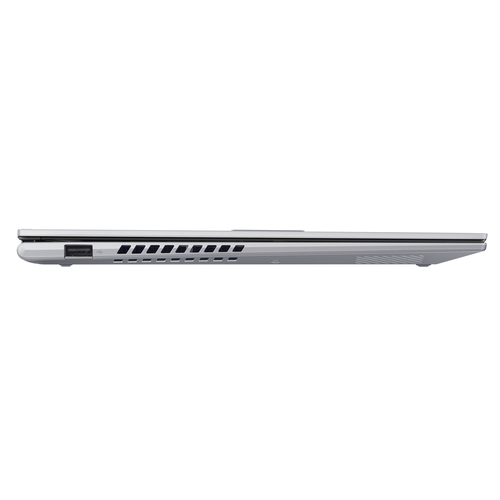

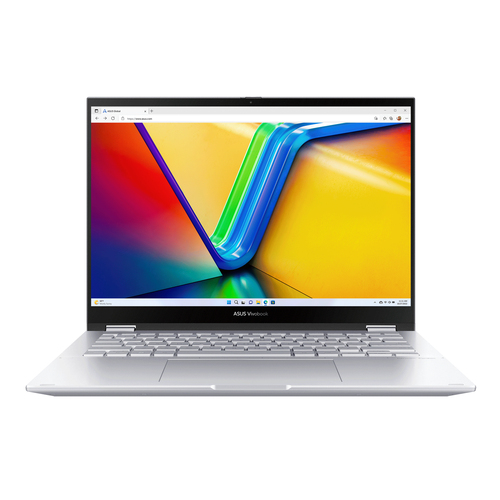

ASUS Vivobook S14 Flip OLED TP3402ZA Intel® Core™ i5 i5-12500H Hybrid (2-in-1)

Vivobook S14 Flip OLED TP3402ZA Intel® Core™ i5 i5-12500H Hybrid (2-in-1)

35.6 cm (14") Touchscreen 2.8K 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Win

Model TP3402ZAPart no. 90NB0WR2-M002B0EAN 4711081820932

94 specifications Checked today

Display35.6 cm (14")
Resolution2880 x 1800 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2880 x 1800 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: TP3402ZA
Part number: 90NB0WR2-M002B0
EAN / UPC: 4711081820932
Also known as: ASUS Vivobook S14 Flip OLED TP3402ZA Intel® Core™ i5 i5-12500H Hybrid (2-in-1) 35.6 cm (14") Touchscreen 2.8K 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6 (802.11ax) Win

Specifications

94 specifications in 18 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Colour name	Cool Silver
Form factor	Convertible (Folder)
Market positioning	Home
Built-in stylus pen storage	Yes

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	2.8K
Panel type	OLED
Native aspect ratio	16:10
Display surface	Anti-glare
Anti-glare screen	Yes
Display brightness	400 cd/m²
Maximum display brightness (HDR)	500 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-12500H
Processor cores	4
Processor threads	16
Processor boost frequency	4.5 GHz
Processor frequency	3.3 GHz
Performance cores	4
Efficient cores	8
Processor cache	18 MB
Processor cache type	Smart Cache

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
VGA (D-Sub) ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
Docking connector	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD

Certificates

Specification	Value
Compliance certificates	REACH, RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	313.2 mm
Depth	227.6 mm
Height	18.9 mm
