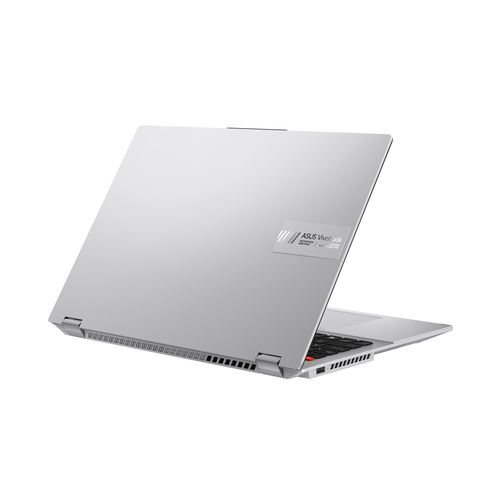

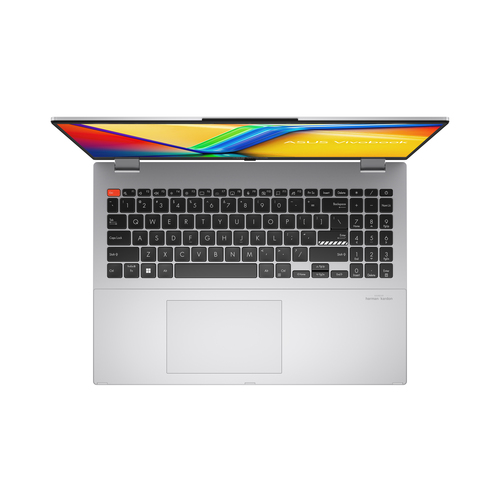

ASUS Vivobook S16 Flip TN3604YA-MC127W AMD Ryzen™ 5 7530U Hybrid (2-in-1)

Vivobook S16 Flip TN3604YA-MC127W AMD Ryzen™ 5 7530U Hybrid (2-in-1)

40.6 cm (16") Touchscreen WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Window

Model TN3604YA-MC127WPart no. 90NB1042-M005C0EAN 197105586338

97 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorAMD Ryzen™ 5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: AMD Ryzen™ 5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: TN3604YA-MC127W
Part number: 90NB1042-M005C0
EAN / UPC: 197105586338, 4711387586334
Also known as: ASUS Vivobook S16 Flip TN3604YA-MC127W AMD Ryzen™ 5 7530U Hybrid (2-in-1) 40.6 cm (16") Touchscreen WUXGA 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Window

Specifications

97 specifications in 19 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Colour name	Cool Silver
Form factor	Convertible (Folder)
Housing material	Plastic
Market positioning	Home
Introduction year	2023

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 7000 Series
Processor model	7530U
Processor cores	6
Processor boost frequency	4.3 GHz
Processor cache	16 MB
Processor cache type	L2

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Power adapter barrel connector	4.5 mm
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	9.3

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTY
Keyboard language	Dutch

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	42 Wh

Power

Specification	Value
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.37 A
AC adapter output voltage	19 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	REACH, RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	355.2 mm
Depth	252.4 mm
Height (front)	1.96 cm
Height (rear)	1.97 cm
