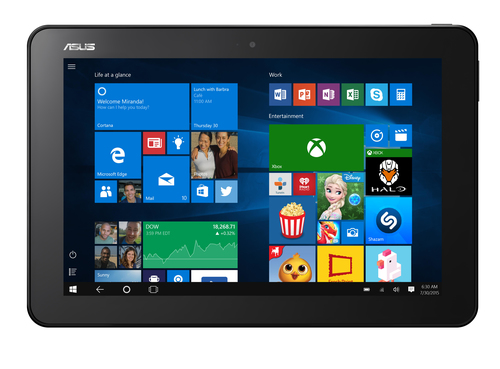

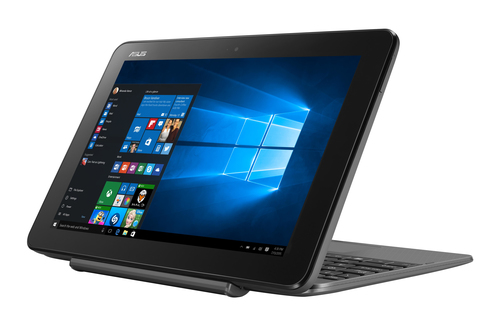

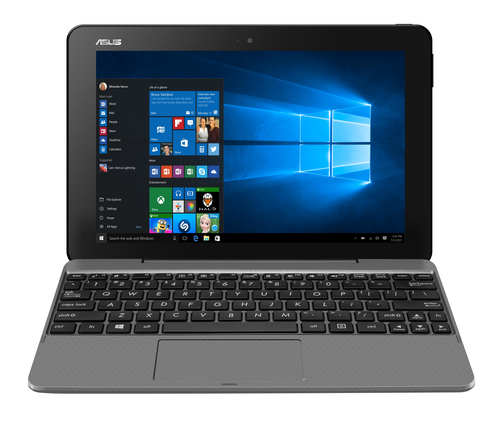

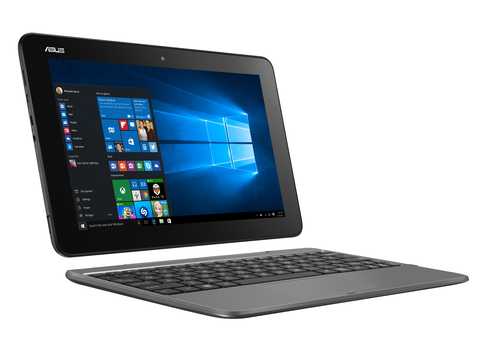

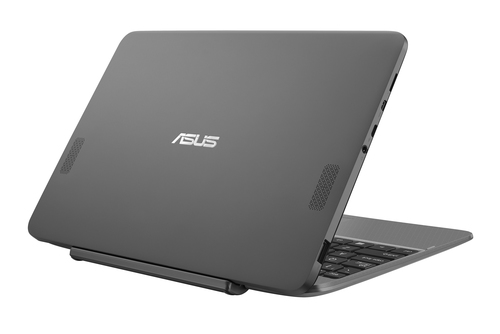

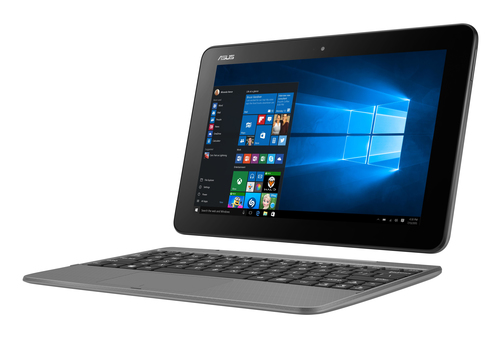

ASUS Transformer Book T101HA-GR030TB Intel Atom® x5-Z8350 Hybrid (2-in-1)

Transformer Book T101HA-GR030TB Intel Atom® x5-Z8350 Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen WXGA 4 GB DDR3L-SDRAM 128 GB eMMC Wi-Fi 5 (802.11ac) Windo

Model T101HA-GR030TBPart no. 90NB0BK1-M01950EAN 4712900743647

111 specifications Checked today

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: T101HA-GR030TB
Part number: 90NB0BK1-M01950
EAN / UPC: 4712900743647
Also known as: ASUS Transformer Book T101HA-GR030TB Intel Atom® x5-Z8350 Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen WXGA 4 GB DDR3L-SDRAM 128 GB eMMC Wi-Fi 5 (802.11ac) Windo

Specifications

111 specifications in 18 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Grey
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	WXGA
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	x5-Z8350
Processor cores	4
Processor threads	4
Processor boost frequency	1.92 GHz
Processor frequency	1.44 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 592
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Atom x5 Series
Processor codename	Cherry Trail
Scenario Design Power (SDP)	2 W
Tjunction	90 °C
Maximum number of PCI Express lanes	1
PCI Express configurations	1x1
PCI Express slots version	2.0

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	eMMC
Flash memory	128 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 400
Maximum on-board graphics card memory	2 GB
Number of execution units	12
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	500 MHz
On-board graphics card dynamic frequency (max)	500 MHz

Audio

Specification	Value
Audio system	SonicMaster
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
VGA (D-Sub) ports quantity	0
Thunderbolt 3 ports quantity	0
Micro HDMI ports quantity	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	93361
Processor code	SR2KT
Processor package size	17 x 17 mm
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery life (max)	11 h

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	UL, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, GOST-R, CB, Energy star, IDA, CECP, Erp 2013, RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.04 kg
Width	261 mm
Depth	175 mm
Height	19 mm
Weight (tablet mode)	580 g
Width (tablet mode)	26.1 cm
Depth (tablet mode)	17.5 cm
Height (tablet mode)	9 mm
