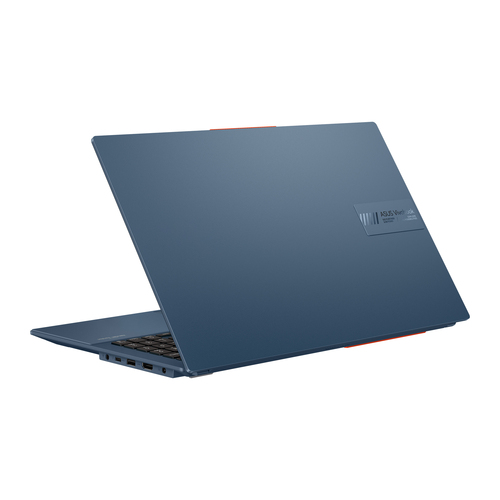

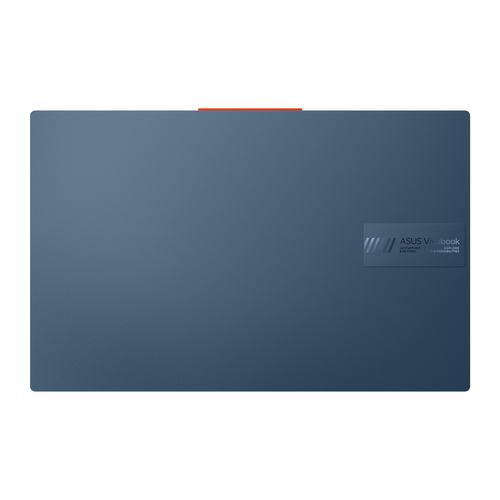

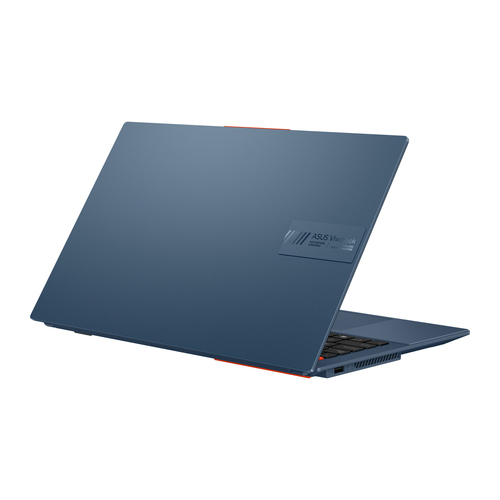

ASUS Vivobook S15 OLED S5504VA-L1090W Intel® Core™ i5 i5-13500H Laptop

Vivobook S15 OLED S5504VA-L1090W Intel® Core™ i5 i5-13500H Laptop

39.6 cm (15.6") Full HD 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home

Model S5504VA-L1090WPart no. 90NB0ZK1-M00CN0EAN 197105241350

111 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: S5504VA-L1090W
Part number: 90NB0ZK1-M00CN0
EAN / UPC: 197105241350, 4711387122839, 4711387241356
Also known as: ASUS Vivobook S15 OLED S5504VA-L1090W Intel® Core™ i5 i5-13500H Laptop 39.6 cm (15.6") Full HD 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home

Specifications

111 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Solar Blue
Form factor	Clamshell
Housing material	Aluminium, Plastic
Market positioning	Home
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	OLED
Native aspect ratio	16:9
Display surface	Gloss
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 600

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	13th gen Intel® Core™ i5
Processor model	i5-13500H
Processor cores	12
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Configurable TDP-down	35 W
Maximum turbo power	95 W
Processor base power	45 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	7.4

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers, McAfee LiveSafe™ 30-day trial

Processor special features

Specification	Value
CPU configuration (max)	1

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.7 kg
Width	359.3 mm
Depth	229.4 mm
Height	17.9 mm

Packaging data

Specification	Value
Package width	481 mm
Package depth	65 mm
Package height	288 mm
Package weight	2.25 kg

Packaging content

Specification	Value
AC adapter included	Yes

Logistics data

Specification	Value
Commodity Classification Automated Tracking System (CCATS)	8471300000
