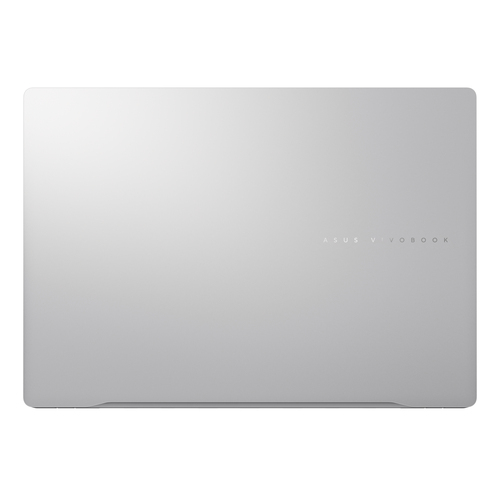

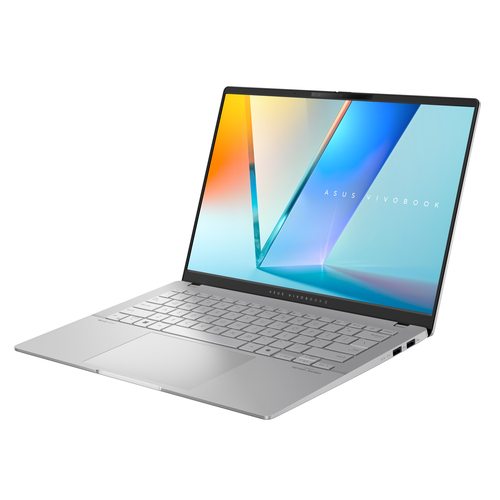

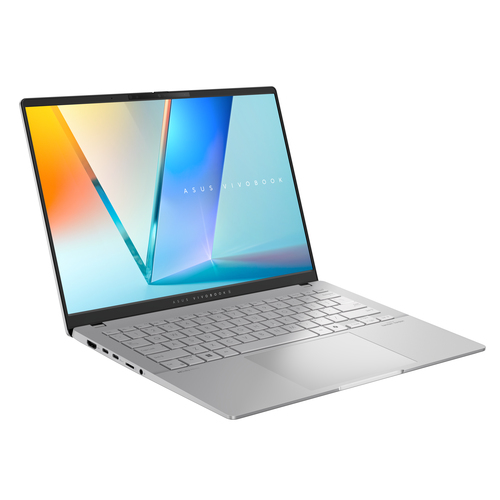

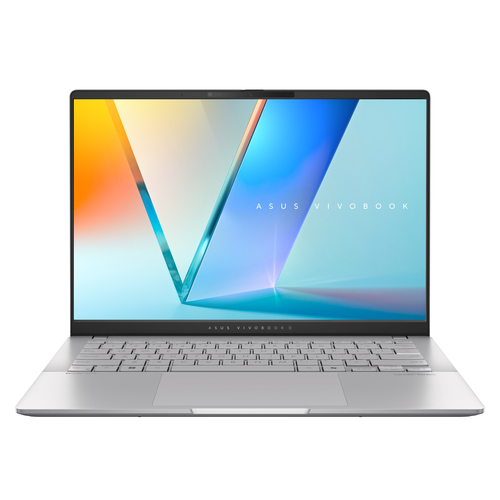

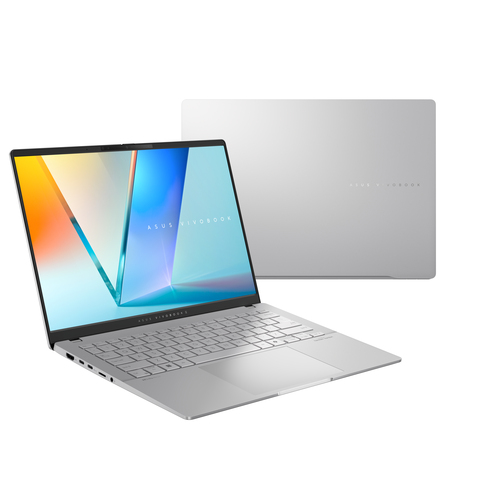

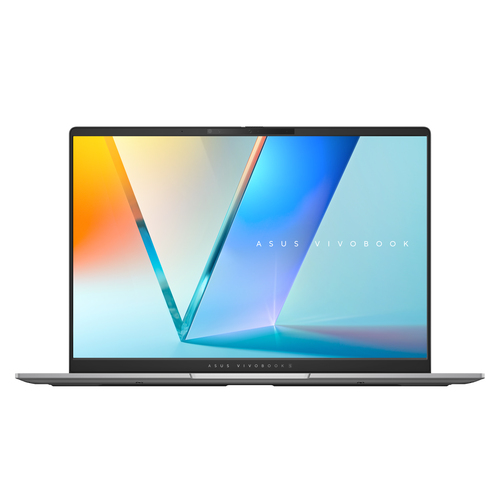

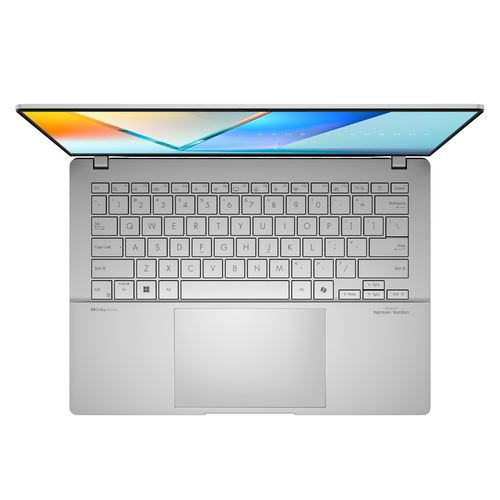

ASUS Vivobook S14 OLED S5406UA-PP003W AMD Ryzen™ 7 8845HS Laptop

Vivobook S14 OLED S5406UA-PP003W AMD Ryzen™ 7 8845HS Laptop

35.6 cm (14") 3K 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silver

Model S5406UA-PP003WPart no. 90NB1461-M00070EAN 4711387462560

103 specifications Checked today

Display35.6 cm (14")
Resolution2880 x 1800 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2880 x 1800 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: S5406UA-PP003W
Part number: 90NB1461-M00070
EAN / UPC: 4711387462560
Also known as: ASUS Vivobook S14 OLED S5406UA-PP003W AMD Ryzen™ 7 8845HS Laptop 35.6 cm (14") 3K 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Silver

Specifications

103 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Colour name	Cool Silver
Form factor	Clamshell
Market positioning	Home

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	3K
Panel type	OLED
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 600

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 8000 Series
Processor model	8845HS
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.8 GHz
Processor cache type	L2 & L3
L3 cache	16 MB
L2 cache	8 MB

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	38 TOPs
NPU performance up to	16 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon 780M

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.3

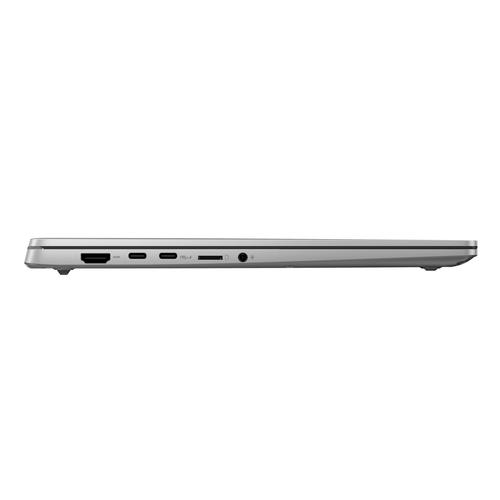

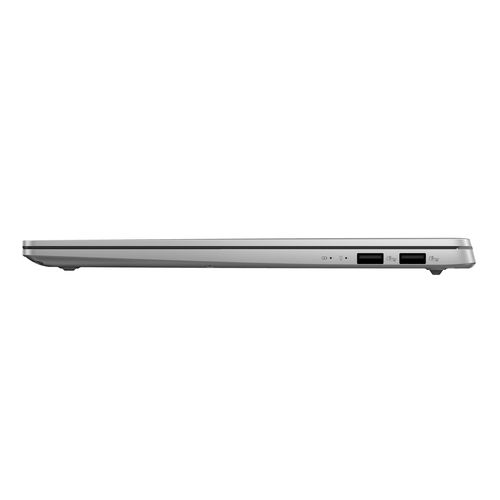

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.2

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	1.3 kg
Width	310.5 mm
Depth	221.9 mm
Height (front)	1.39 cm
Height (rear)	1.59 cm

Packaging content

Specification	Value
AC adapter included	Yes
