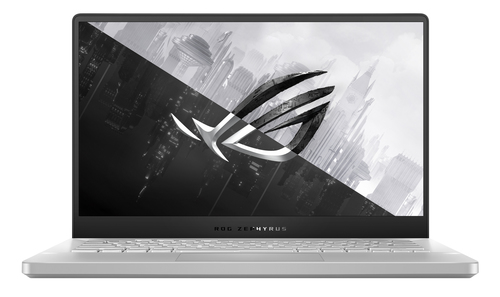

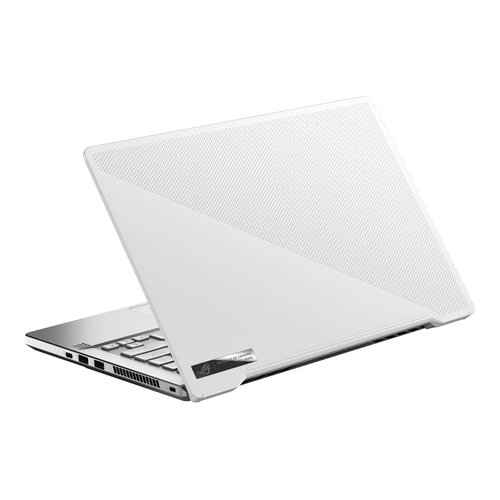

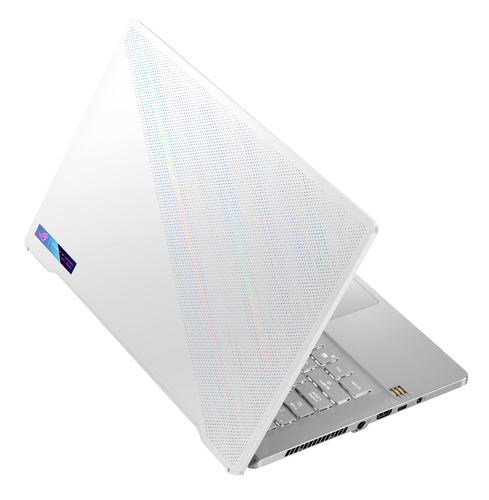

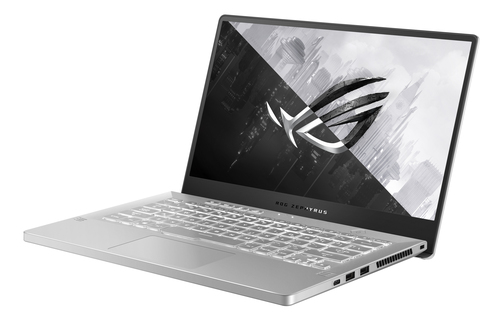

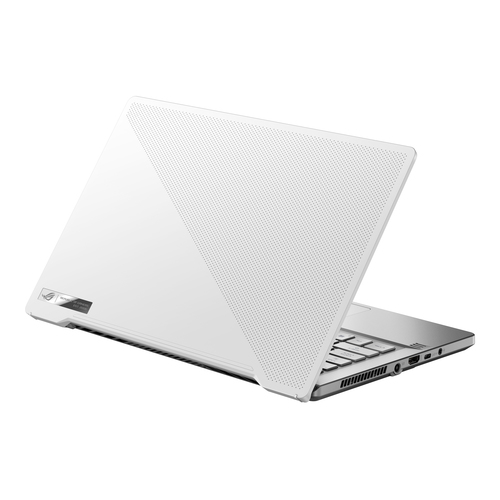

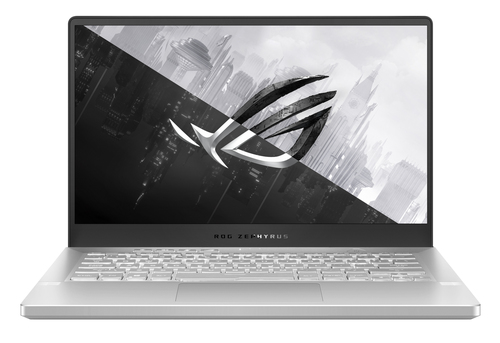

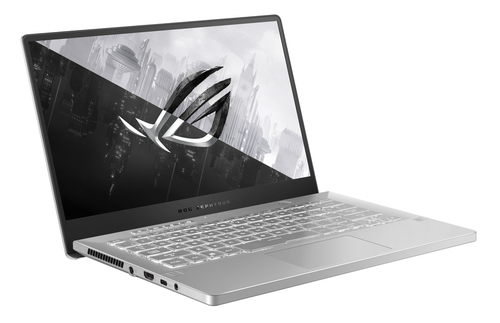

ROG Zephyrus G14 PX401IV-BM166R AMD Ryzen™ 7 4800H Laptop
35.6 cm (14") Full HD 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11ax) Wind
Model PX401IV-BM166RPart no. 90NR03F3-M04220EAN 4718017634946
76 specifications Checked today
- Display35.6 cm (14")
- Resolution1920 x 1080 pixels
- ProcessorAMD Ryzen™ 7
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce RTX™ 2060
Overview
- Display
- 35.6 cm (14")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen™ 7
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce RTX™ 2060
- Brand
- ASUS
- Category
- Laptop
- Model
- PX401IV-BM166R
- Part number
- 90NR03F3-M04220
- EAN / UPC
- 4718017634946
- Also known as
- ASUS ROG Zephyrus G14 PX401IV-BM166R AMD Ryzen™ 7 4800H Laptop 35.6 cm (14") Full HD 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11ax) Wind
Specifications
76 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | White |
| Colour name | Moonlight White |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 4000 Series |
| Processor model | 4800H |
| Processor cores | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 8 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | AMD |
| On-board graphics card model | AMD Radeon Graphics |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 76 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 9 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Password protection | Yes |
| Password protection type | BIOS, User |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
| Width | 324 mm |
| Depth | 220 mm |
| Height | 17.9 mm |
