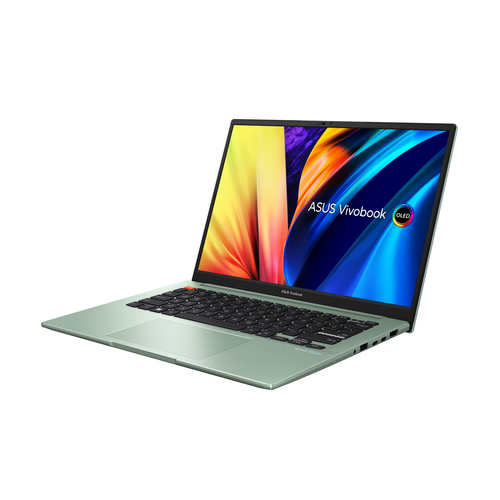

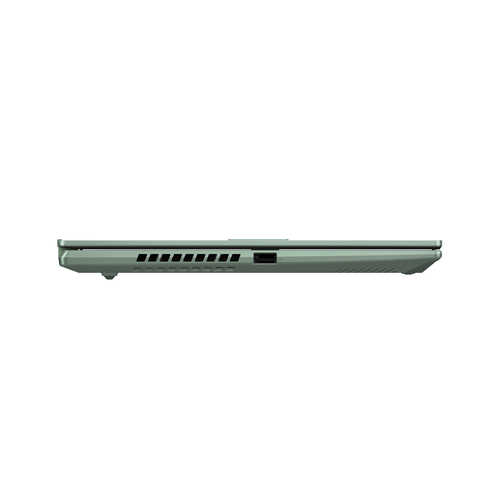

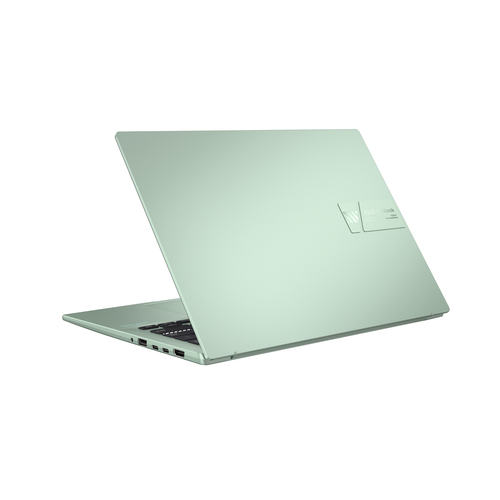

ASUS Vivobook S14 OLED K3402ZA-OLEDS554 laptop Intel® Core™ i5 i5-12500H

Vivobook S14 OLED K3402ZA-OLEDS554 laptop Intel® Core™ i5 i5-12500H

35.6 cm (14") 2.8K 12 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gree

Model K3402ZA-OLEDS554

103 specifications Checked today

Display35.6 cm (14")
Resolution2880 x 1800 pixels
ProcessorIntel® Core™ i5
Memory12 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2880 x 1800 pixels
Processor: Intel® Core™ i5
Memory: 12 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: K3402ZA-OLEDS554
Part number: K3402ZA-OLEDS554
Also known as: ASUS Vivobook S14 OLED K3402ZA-OLEDS554 laptop Intel® Core™ i5 i5-12500H 35.6 cm (14") 2.8K 12 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Gree

Specifications

103 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Green
Colour name	Brave Green
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	2.8K
Panel type	OLED
Display number of colours	1.073 billion colours
Native aspect ratio	16:10
Display surface	Gloss
Maximum display brightness (HDR)	600 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms
Maximum refresh rate	90 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 600

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-12500H
Processor cores	12
Processor boost frequency	4.5 GHz
Processor cache	18 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	12 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	70 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	316.4 mm
Depth	224.5 mm
Height	18.9 mm
