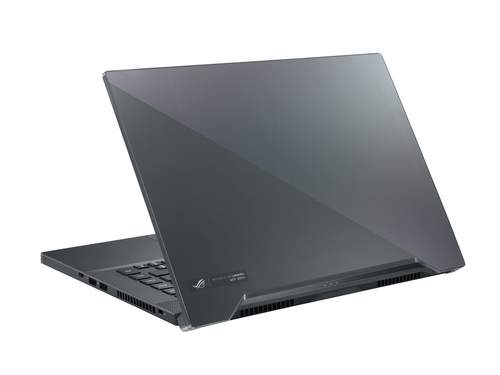

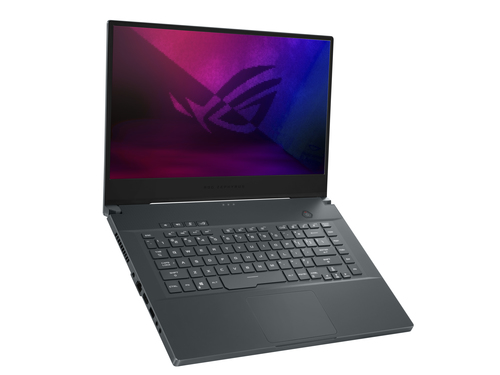

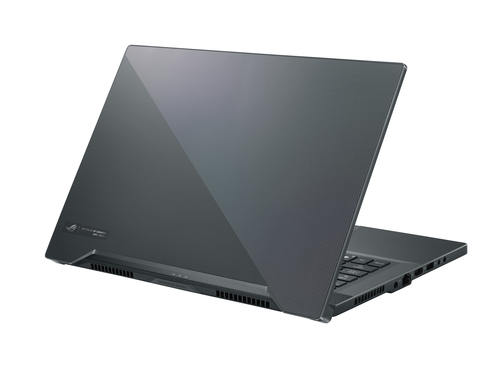

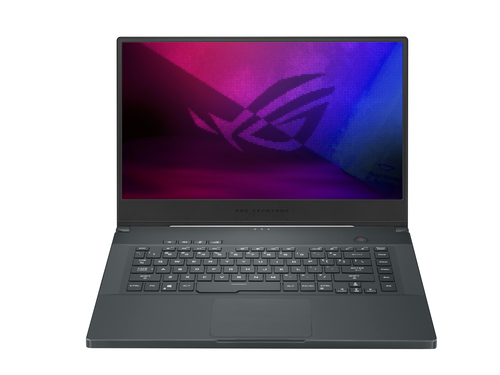

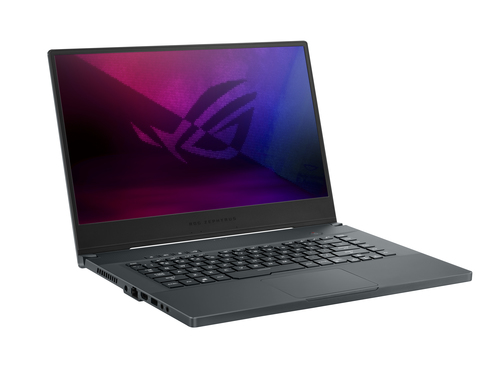

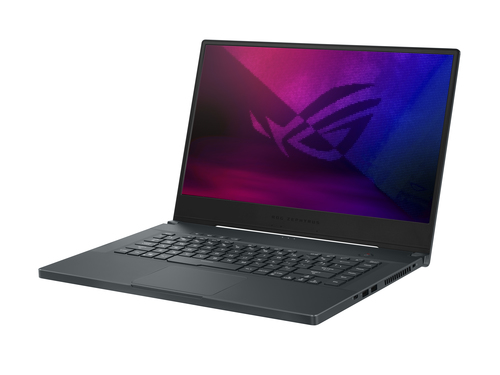

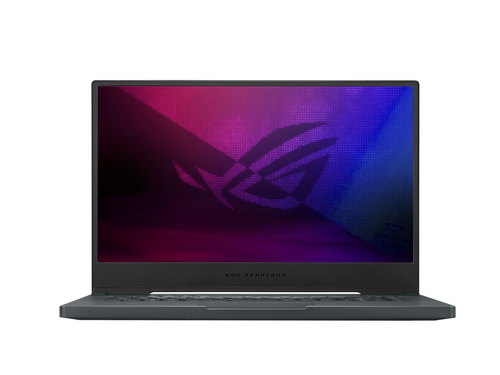

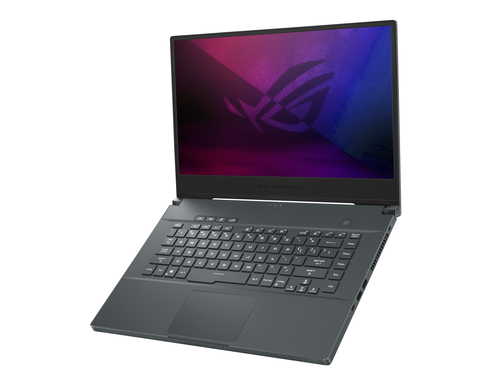

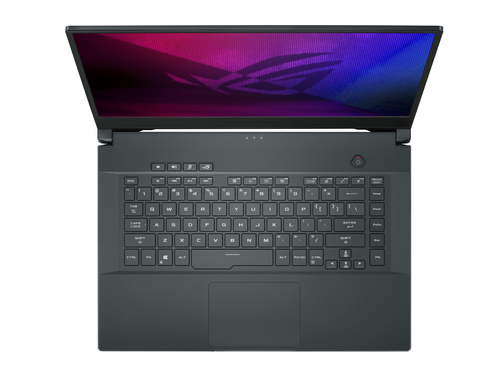

ASUS ROG Zephyrus M GU502LV-AZ145 laptop Intel® Core™ i7 i7-10875H

ROG Zephyrus M GU502LV-AZ145 laptop Intel® Core™ i7 i7-10875H

39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11a

Model GU502LV-AZ145EAN 4718017912143

107 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage512 GB
GraphicsNVIDIA® GeForce RTX™ 2060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce RTX™ 2060

Brand: ASUS
Category: Laptop
Model: GU502LV-AZ145
Part number: GU502LV-AZ145
EAN / UPC: 4718017912143
Also known as: ASUS ROG Zephyrus M GU502LV-AZ145 laptop Intel® Core™ i7 i7-10875H 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11a

Specifications

107 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Prism Grey
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Anti-glare screen	Yes
Colour gamut	100%
RGB colour space	sRGB
Display response rise/fall	3 ms
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10875H
Processor cores	8
Processor boost frequency	5.1 GHz
Processor frequency	2.3 GHz
Processor cache	16 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board
Memory layout (slots x size)	1 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	24 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce RTX™ 2060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Built-in microphone	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Thunderbolt technology	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Thunderbolt 3 ports quantity	1
Headphone outputs	1
Microphone in	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	6.7

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	76 Wh

Power

Specification	Value
AC adapter power	230 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	11.8 A
AC adapter output voltage	19.5 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	360 mm
Depth	252 mm
Height	19.9 mm
