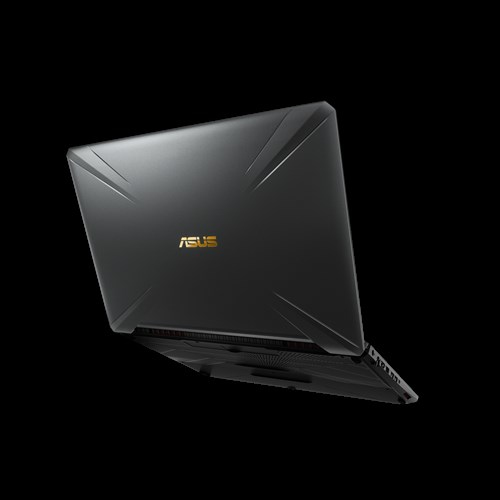

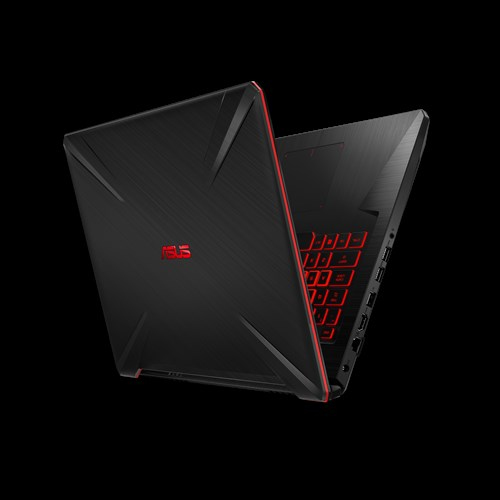

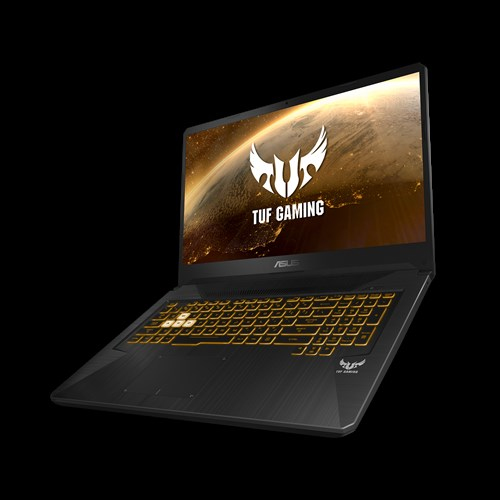

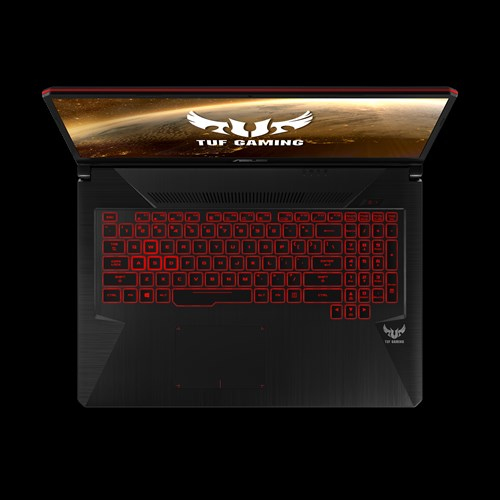

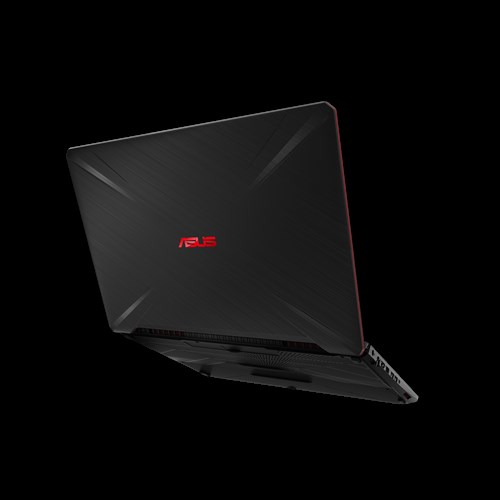

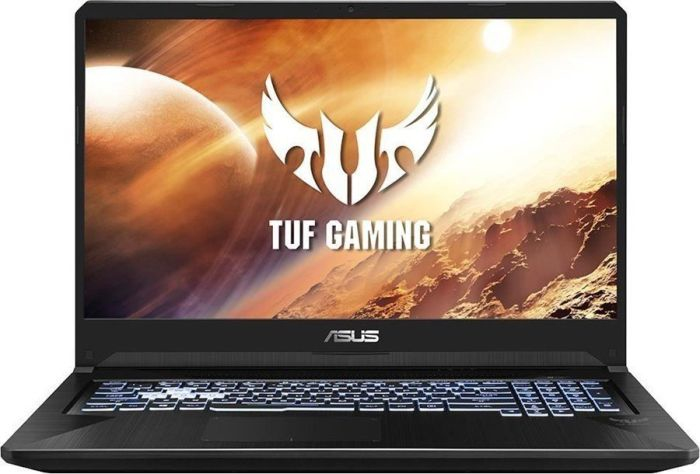

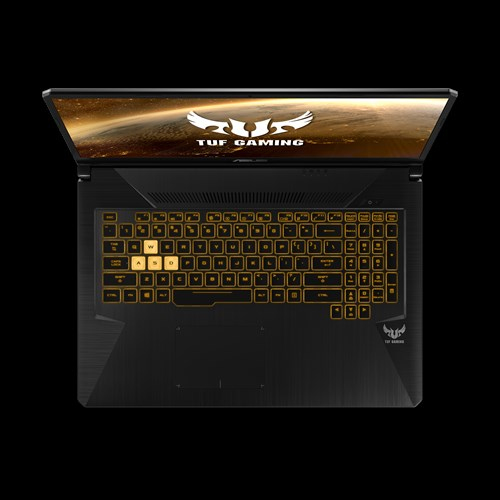

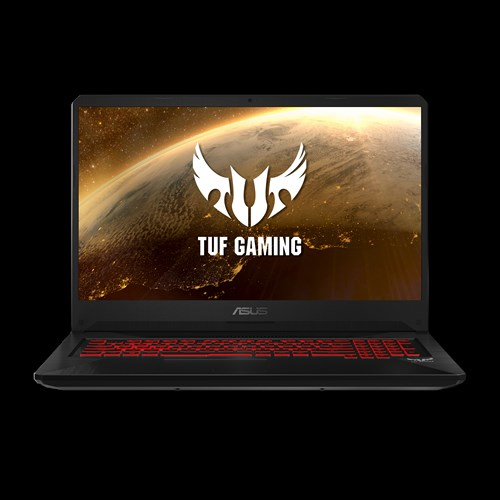

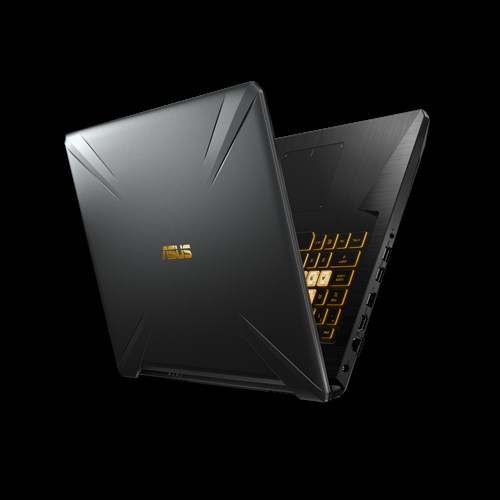

TUF Gaming FX705DT-AU078T AMD Ryzen™ 5 3550H Laptop

43.9 cm (17.3") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) Windows

Model FX705DT-AU078TPart no. 90NR02B2-M01530EAN 4718017314749

126 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 5
Memory8 GB
Storage512 GB
GraphicsNVIDIA® GeForce® GTX 1650

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 5
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce® GTX 1650

Brand: ASUS
Category: Laptop
Model: FX705DT-AU078T
Part number: 90NR02B2-M01530
EAN / UPC: 4718017314749
Also known as: ASUS TUF Gaming FX705DT-AU078T AMD Ryzen™ 5 3550H Laptop 43.9 cm (17.3") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) Windows

Specifications

126 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Maximum refresh rate	60 Hz
NTSC coverage (typical)	45%

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 3000 Series
Processor model	3550H
Processor cores	4
Processor threads	8
Processor boost frequency	3.7 GHz
Processor frequency	2.1 GHz
Processor cache	4 MB
Processor cache type	L3
Processor lithography	12 nm
Thermal Design Power (TDP)	35 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of HDDs installed	0
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 3.0
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1650
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	AMD Radeon Vega Graphics
On-board graphics card model	AMD Radeon Vega 8
On-board graphics card base frequency	1200 MHz
On-board graphics card DirectX version	12.0
Number of discrete graphics cards installed	1
AMD FreeSync	Yes

Audio

Specification	Value
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera signal format	720p

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 2.0 Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
Mini DisplayPort/Thunderbolt combo port	No
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
LAN/VGA combo port	No
Mini VGA ports quantity	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Line-in	No
Docking connector	No
Alienware graphics amplifier port	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
Number of Thunderbolt 3 ports with PowerShare support	0

Performance

Specification	Value
Repairability index	5.7

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	64 Wh

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.32 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Width	399.8 mm
Depth	279.4 mm
Height	26.6 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
