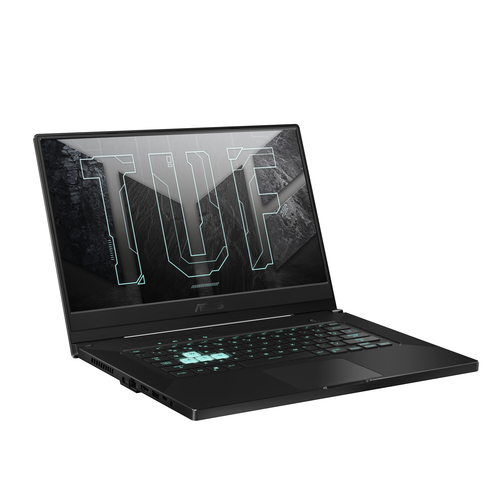

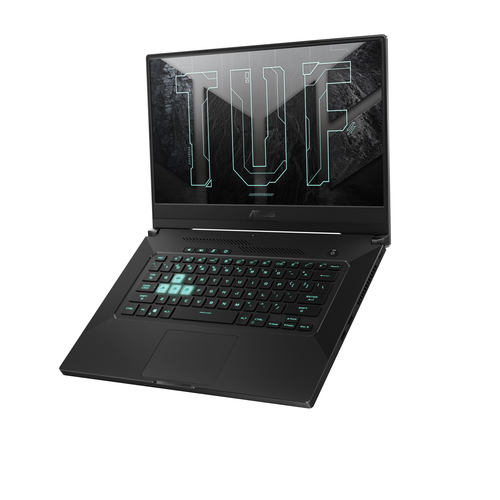

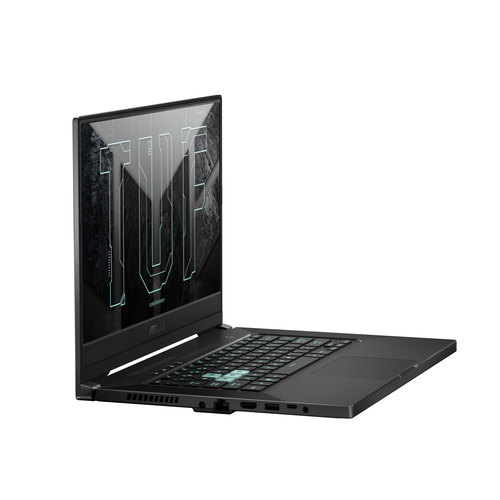

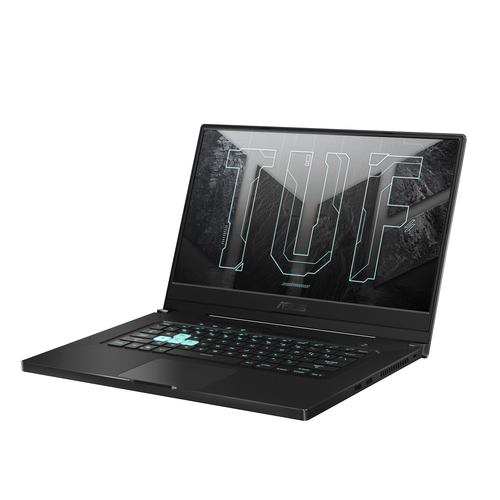

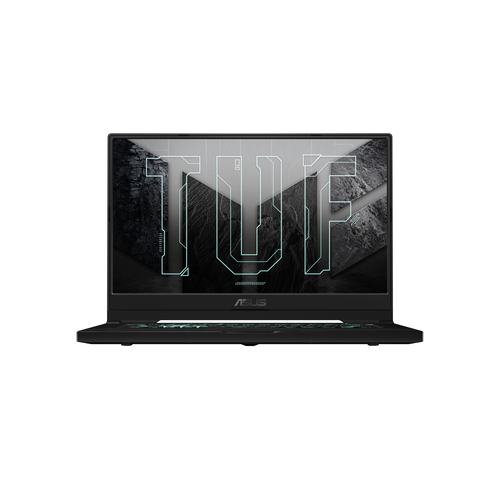

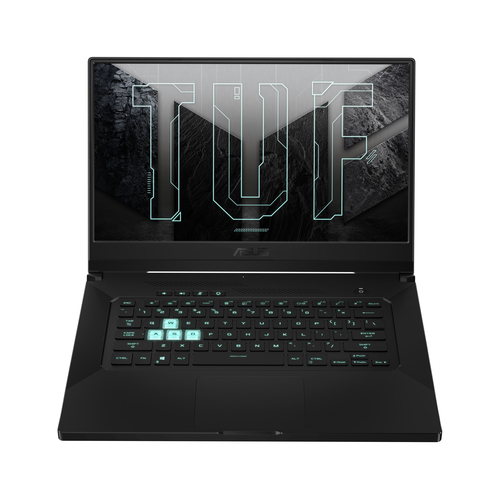

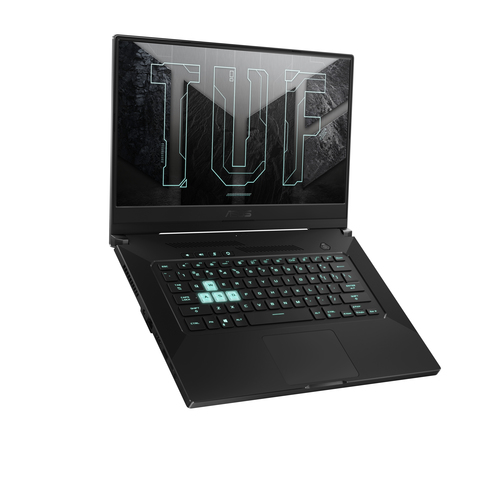

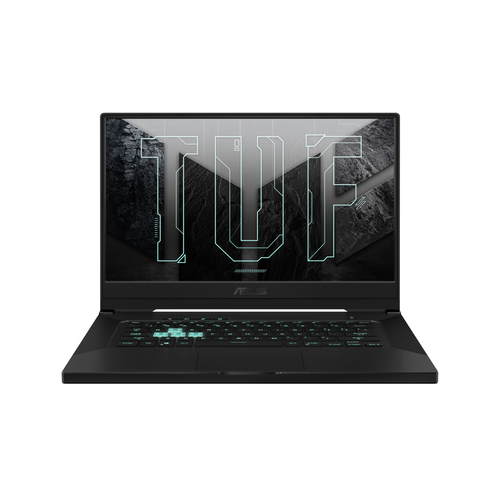

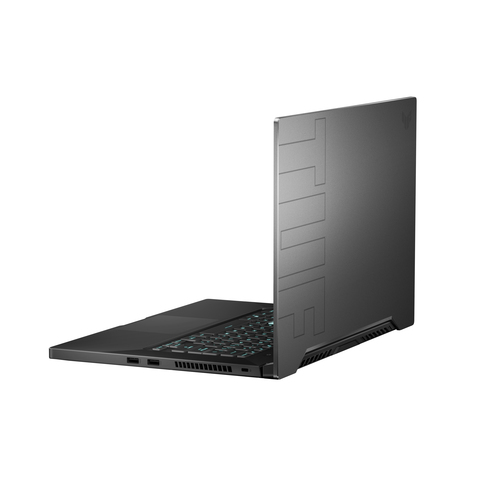

ASUS TUF Dash F15 FX516PM-AZ003T-BE Intel® Core™ i7 i7-11370H Laptop

TUF Dash F15 FX516PM-AZ003T-BE Intel® Core™ i7 i7-11370H Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6 (802.11ax

Model FX516PM-AZ003T-BEPart no. 90NR05X1-M06790EAN 4711081432418

107 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3060

Brand: ASUS
Category: Laptop
Model: FX516PM-AZ003T-BE
Part number: 90NR05X1-M06790
EAN / UPC: 4711081432418
Also known as: ASUS TUF Dash F15 FX516PM-AZ003T-BE Intel® Core™ i7 i7-11370H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6 (802.11ax

Specifications

107 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Grey
Colour name	Eclipse Gray
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Display brightness	300 cd/m²
Colour gamut	42%
RGB colour space	NTSC
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-11370H
Processor cores	4
Processor boost frequency	4.8 GHz
Processor cache	12 MB
Configurable TDP-up frequency	3.3 GHz
Configurable TDP-up	35 W
Configurable TDP-down	28 W
Configurable TDP-down frequency	3 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	On-board + SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
NVIDIA Max-Q	No

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	No

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Thunderbolt technology	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	6.5

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	AZERTY

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	76 Wh

Power

Specification	Value
AC adapter power	200 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	10 A
AC adapter output voltage	20 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2 kg
Width	360 mm
Depth	252 mm
Height	19.9 mm
