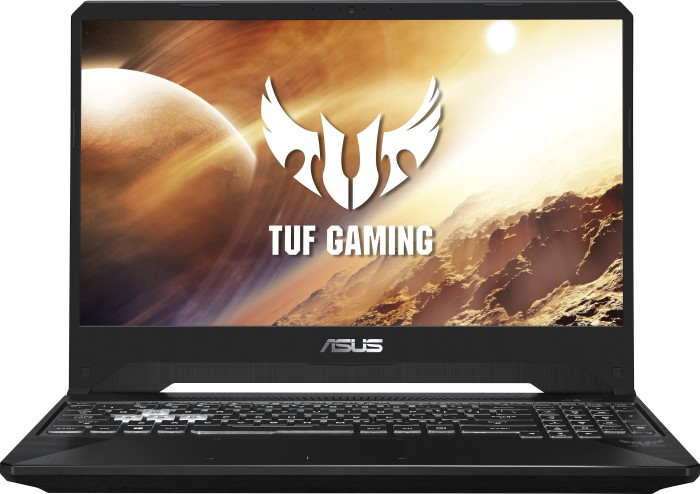

TUF Gaming FX505DT-BQ642 laptop AMD Ryzen™ 5 3550H
39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) Black QW
Model FX505DT-BQ642EAN 4718017847384
88 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- ProcessorAMD Ryzen™ 5
- Memory8 GB
- Storage512 GB
- GraphicsNVIDIA® GeForce® GTX 1650
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen™ 5
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® GeForce® GTX 1650
- Brand
- ASUS
- Category
- Laptop
- Model
- FX505DT-BQ642
- Part number
- FX505DT-BQ642
- EAN / UPC
- 4718017847384
- Also known as
- ASUS TUF Gaming FX505DT-BQ642 laptop AMD Ryzen™ 5 3550H 39.6 cm (15.6") Full HD 8 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 5 (802.11ac) Black QW
Specifications
88 specifications in 17 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 3000 Series |
| Processor model | 3550H |
| Processor cores | 4 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 2.1 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1650 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Vega Graphics |
| On-board graphics card model | AMD Radeon Vega 8 |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS Headphone: X |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Combo headphone/mic port | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 5.2 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | Various |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Keyboard layout | QWERTZ |
| Keyboard language | German |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 3 |
| Battery capacity | 48 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
| Width | 360.4 mm |
| Depth | 262 mm |
| Height (front) | 2.58 cm |
| Height (rear) | 2.68 cm |
