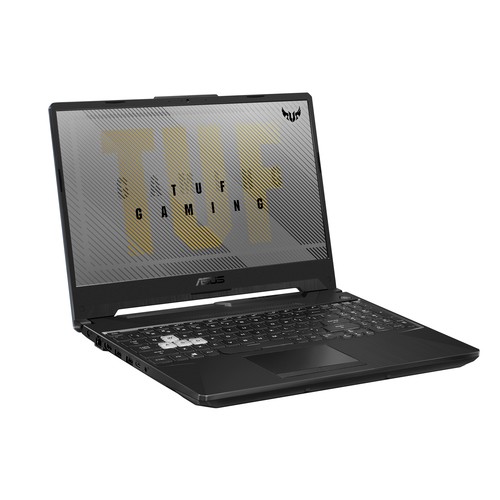

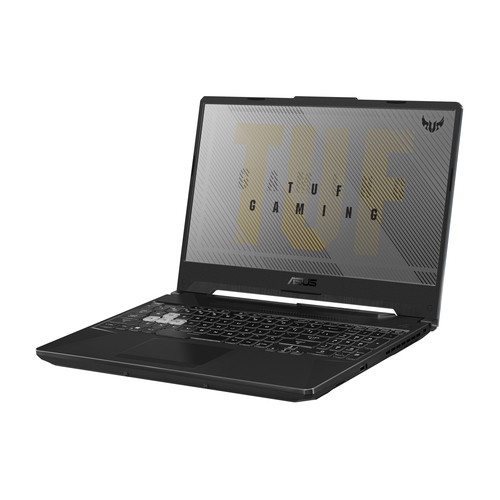

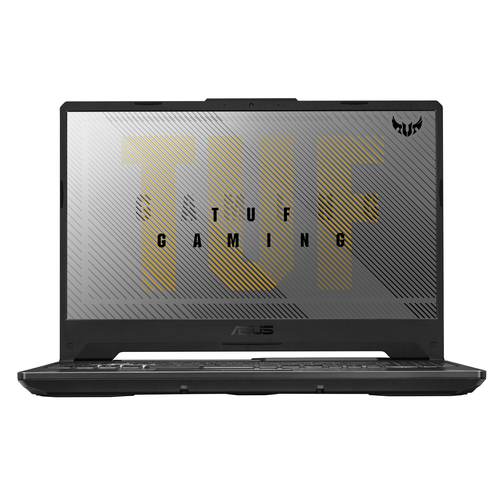

ASUS TUF Gaming A15 FA506QR-AZ001 AMD Ryzen™ 7 5800H Laptop

TUF Gaming A15 FA506QR-AZ001 AMD Ryzen™ 7 5800H Laptop

39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Wi-Fi 6 (802.11ax) Grey

Model FA506QR-AZ001Part no. 90NR05V6-M00990EAN 195553030632

96 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3070

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3070

Brand: ASUS
Category: Laptop
Model: FA506QR-AZ001
Part number: 90NR05V6-M00990
EAN / UPC: 195553030632, 4711081030638
Also known as: ASUS TUF Gaming A15 FA506QR-AZ001 AMD Ryzen™ 7 5800H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Wi-Fi 6 (802.11ax) Grey

Specifications

96 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Eclipse Gray
Form factor	Clamshell
Market positioning	Gaming
Introduction year	2021
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
Native aspect ratio	16:9
Display surface	Matt
Display brightness	300 cd/m²
Colour gamut	72%
RGB colour space	NTSC
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 5000 Series
Processor model	5800H
Processor cores	8
Processor boost frequency	4.4 GHz
Processor frequency	3.2 GHz
Processor cache	16 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	200 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	10 A
AC adapter output voltage	20 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2.3 kg
Width	359.8 mm
Depth	256 mm
Height (front)	2.28 cm
Height (rear)	2.43 cm

Packaging data

Specification	Value
Package width	426 mm
Package depth	103 mm
Package height	312 mm
