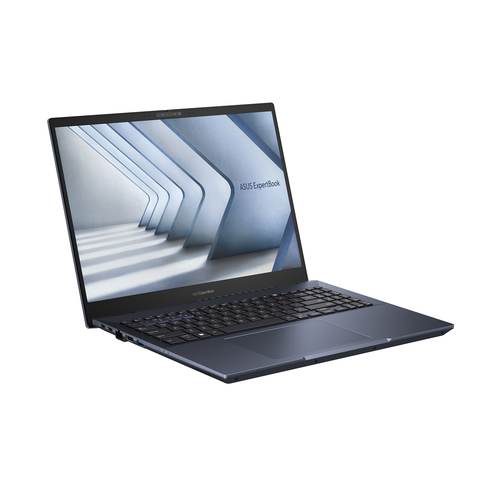

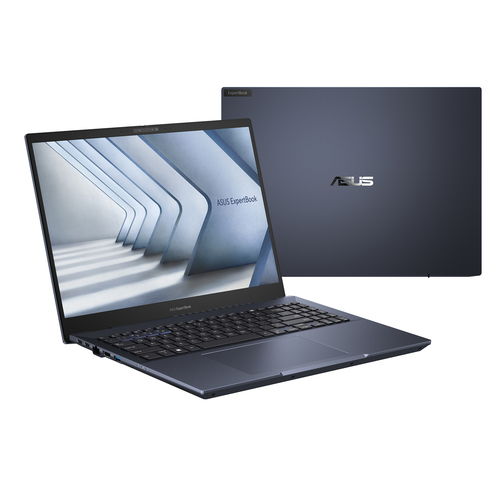

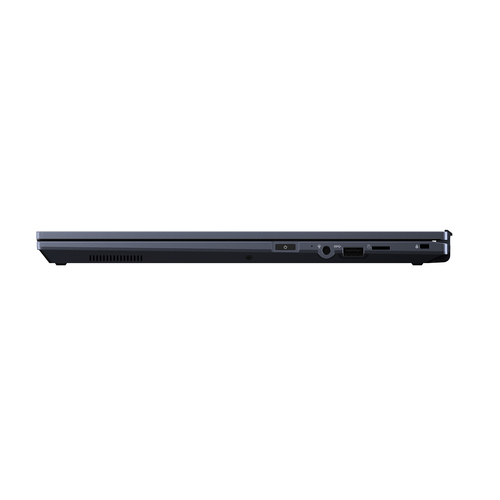

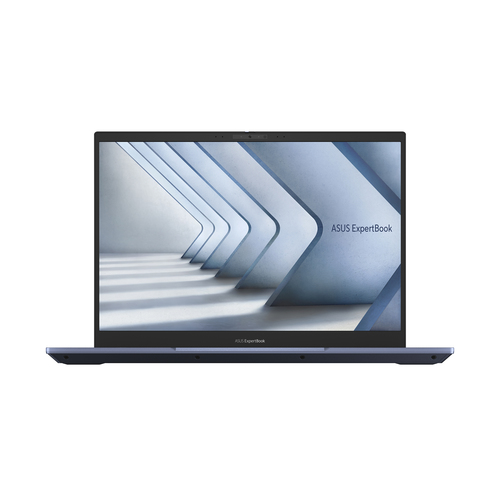

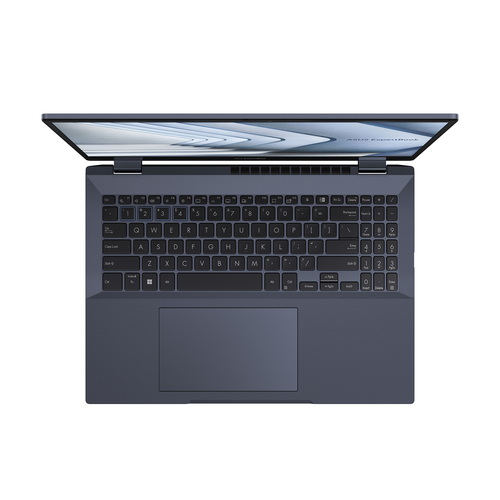

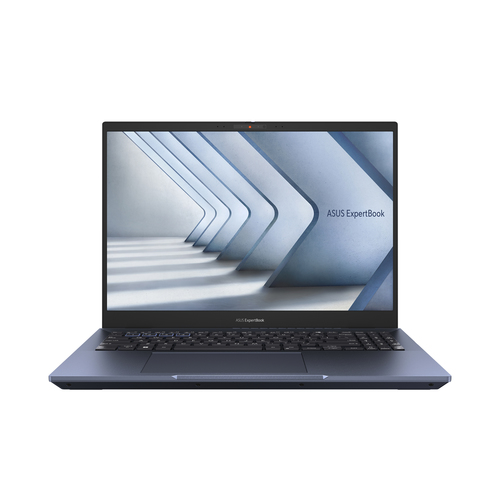

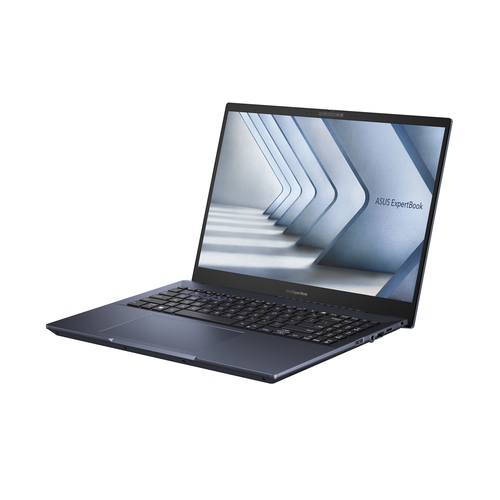

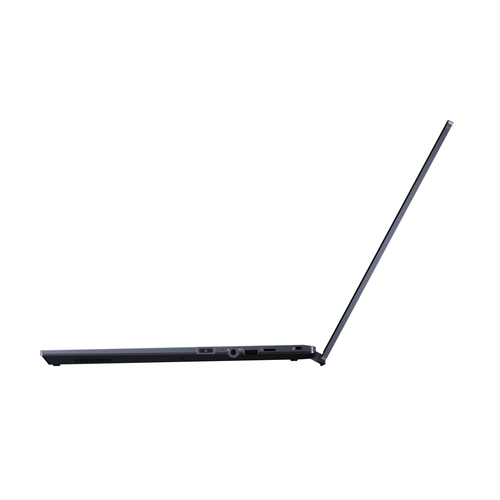

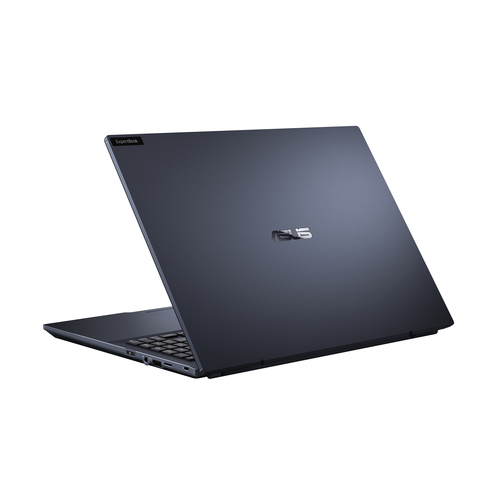

ASUS ExpertBook B5 B5602CBN-MB0301X Intel® Core™ i7 i7-1260P Laptop

ExpertBook B5 B5602CBN-MB0301X Intel® Core™ i7 i7-1260P Laptop

40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Intel Arc A350M Wi-Fi 6 (802.11ax) Windows 1

Model B5602CBN-MB0301XPart no. 90NX05K1-M00BP0EAN 4711387143643

122 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsIntel Arc A350M

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: Intel Arc A350M

Brand: ASUS
Category: Laptop
Model: B5602CBN-MB0301X
Part number: 90NX05K1-M00BP0
EAN / UPC: 4711387143643
Also known as: ASUS ExpertBook B5 B5602CBN-MB0301X Intel® Core™ i7 i7-1260P Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Intel Arc A350M Wi-Fi 6 (802.11ax) Windows 1

Specifications

122 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Star Black
Form factor	Clamshell
Housing material	Aluminium, Magnesium
Market positioning	Business
Introduction year	2023
Introduction month	January

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-1260P
Processor cores	12
Processor boost frequency	4.7 GHz
Processor cache	18 MB
Configurable TDP-down	20 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	1x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	Intel
Discrete graphics card model	Intel Arc A350M
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.72 MP
Front camera HD type	HD
Infrared (IR) camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	84 Wh
Battery weight	300 g

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD, User

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.7 kg
Width	358.2 mm
Depth	261.2 mm
Height	19.9 mm
