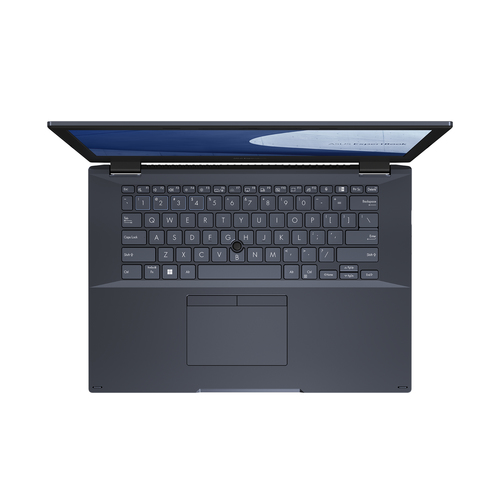

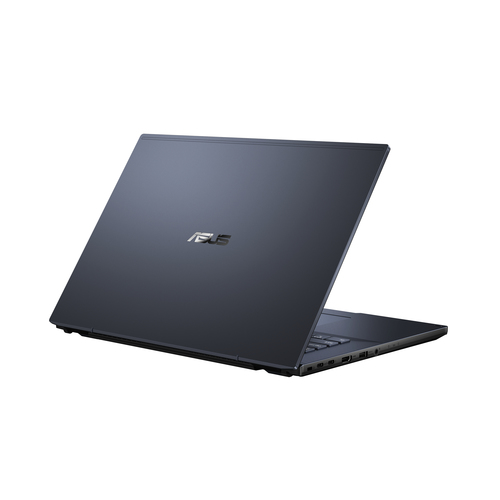

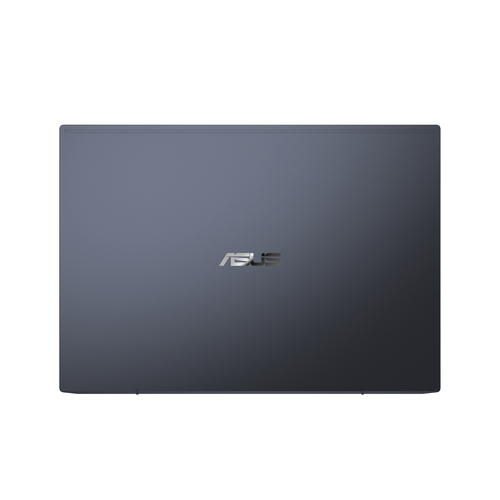

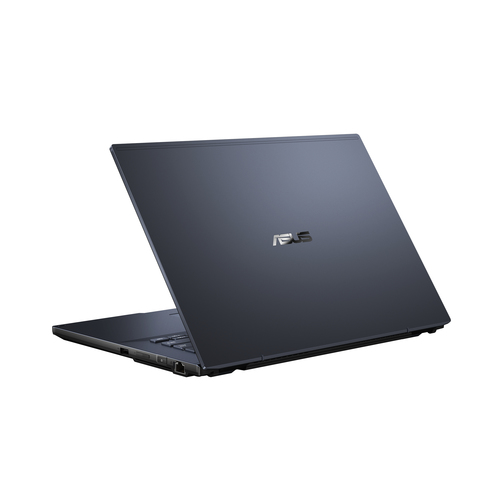

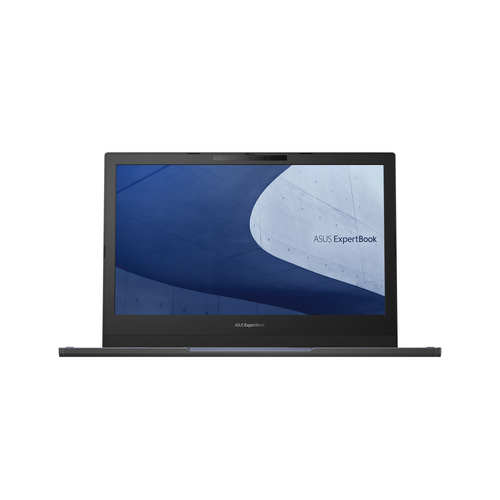

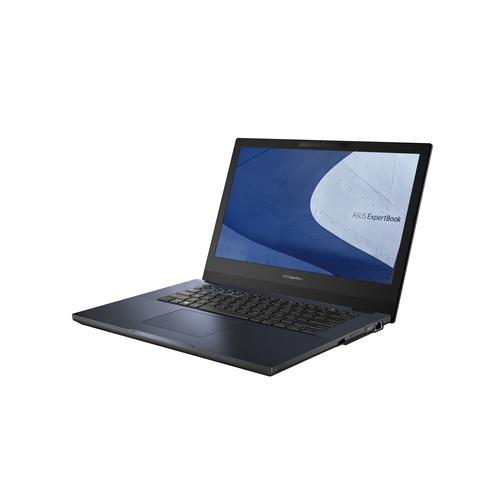

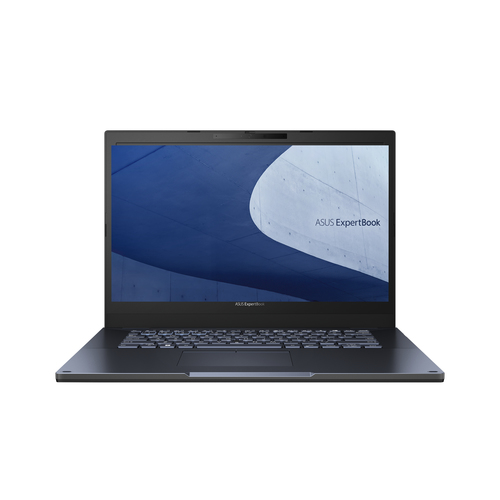

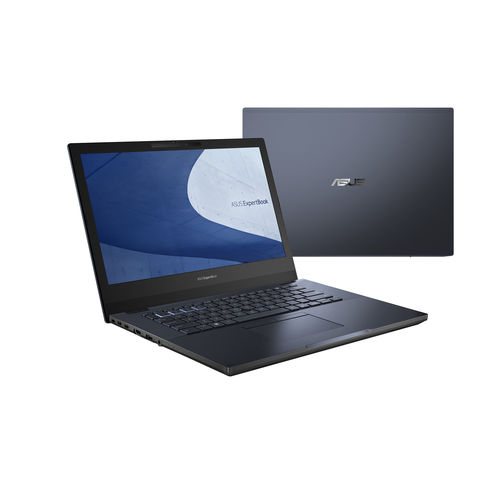

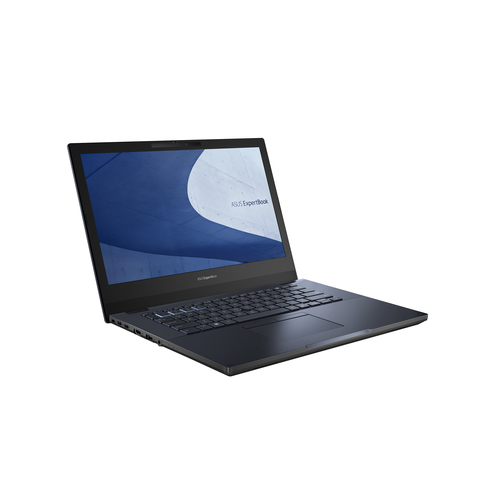

ASUS ExpertBook B2 B2402CBA-EB0474X Intel® Core™ i3 i3-1215U Laptop

ExpertBook B2 B2402CBA-EB0474X Intel® Core™ i3 i3-1215U Laptop

35.6 cm (14") Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Black

Model B2402CBA-EB0474XPart no. 90NX04F1-M00L80

105 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: B2402CBA-EB0474X
Part number: 90NX04F1-M00L80
Also known as: ASUS ExpertBook B2 B2402CBA-EB0474X Intel® Core™ i3 i3-1215U Laptop 35.6 cm (14") Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Black

Specifications

105 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Star Black
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	12th gen Intel® Core™ i3
Processor model	i3-1215U
Processor cores	6
Processor boost frequency	4.4 GHz
Performance cores	2
Efficient cores	4
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
SmartCard slot	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.5

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	48 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, HDD, User

Certificates

Specification	Value
Compliance certificates	REACH, RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.6 kg
Width	339.5 mm
Depth	239.9 mm
Height (front)	1.99 cm
Height (rear)	2 cm
