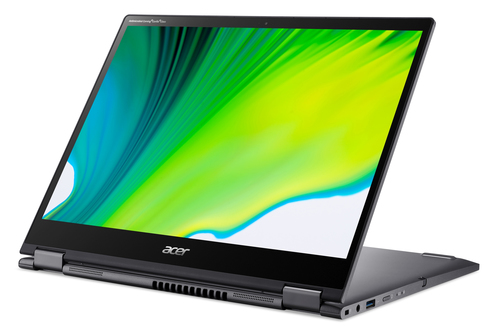

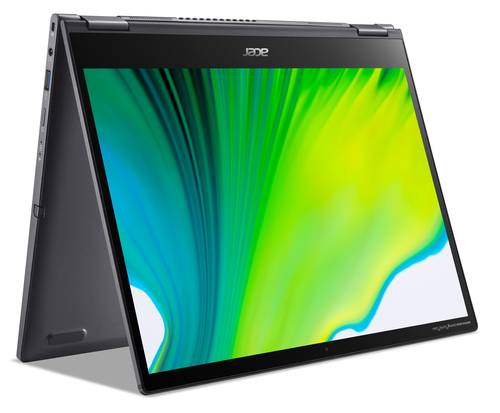

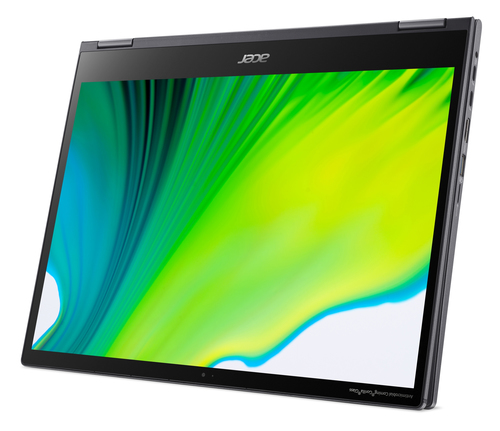

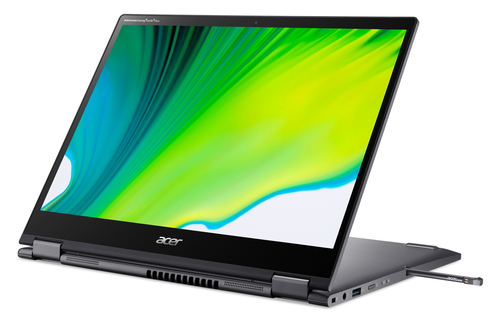

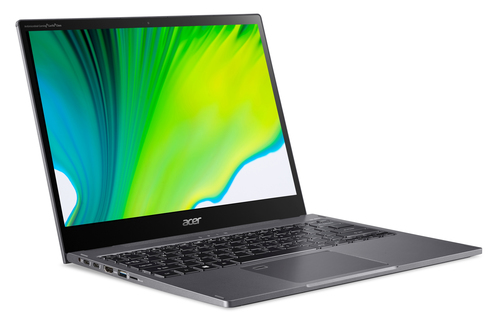

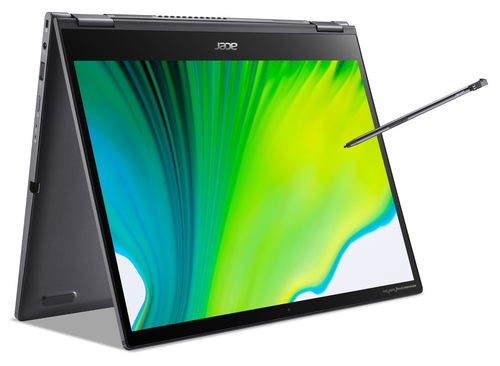

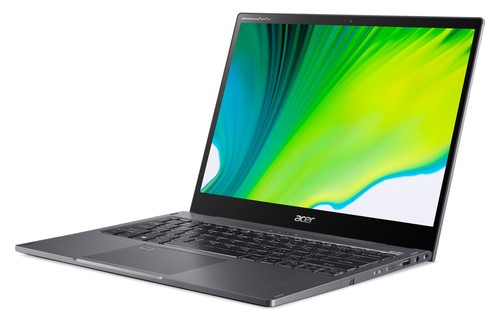

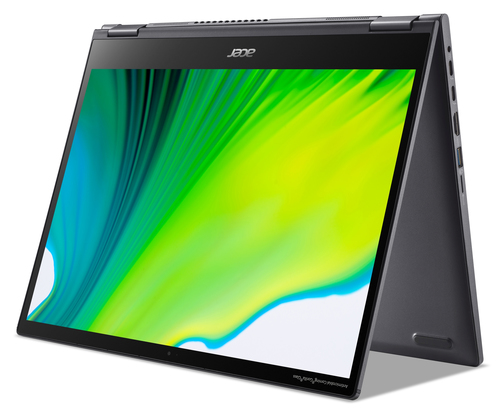

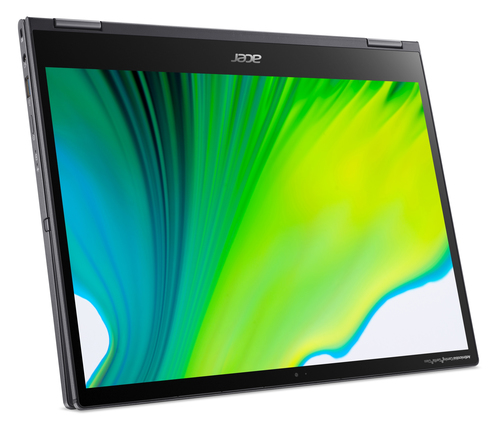

Acer Spin 5 SP513-55N-72D7 Intel® Core™ i7 i7-1165G7 Hybrid (2-in-1)

Spin 5 SP513-55N-72D7 Intel® Core™ i7 i7-1165G7 Hybrid (2-in-1)

34.3 cm (13.5") Touchscreen Quad HD 16 GB LPDDR4x-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Windows

Model SP513-55N-72D7Part no. NX.A5PEV.001EAN 4710886308522

106 specifications Checked today

Display34.3 cm (13.5")
Resolution2256 x 1504 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 34.3 cm (13.5")
Resolution: 2256 x 1504 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: SP513-55N-72D7
Part number: NX.A5PEV.001
EAN / UPC: 4710886308522
Also known as: Acer Spin 5 SP513-55N-72D7 Intel® Core™ i7 i7-1165G7 Hybrid (2-in-1) 34.3 cm (13.5") Touchscreen Quad HD 16 GB LPDDR4x-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Windows

Specifications

106 specifications in 21 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Grey
Form factor	Convertible (Folder)
Housing material	Aluminium, Magnesium

Display

Specification	Value
Display diagonal	34.3 cm (13.5")
Display resolution	2256 x 1504 pixels
Touchscreen	Yes
HD type	Quad HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	3:2
Display bezel technology	CineCrystal
Display diagonal (metric)	34.3 cm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1165G7
Processor cores	4
Processor boost frequency	4.7 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.2 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR4x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wireless-AX 1650i
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
Intel® Thunderbolt 4	Yes
Headphone outputs	1
Combo headphone/mic port	Yes

Performance

Specification	Value
Accelerometer	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Trial software	Norton Internet Security
Bundled software	Acer Care Center, Acer Portal, Acer Configuration Manager

Processor special features

Specification	Value
Intel® Evo™ Platform Verified	Yes
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	56 Wh
Battery life (max)	14 h

Power

Specification	Value
AC adapter power	65 W

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	1.2 kg
Width	300 mm
Depth	235 mm
Height	14.9 mm

Packaging data

Specification	Value
Package width	412 mm
Package depth	65 mm
Package height	283 mm
Package weight	2 kg

Packaging content

Specification	Value
Stylus pen	Yes
Stylus pen type	Active

Logistics data

Specification	Value
Products per pallet layer	28 pc(s)
