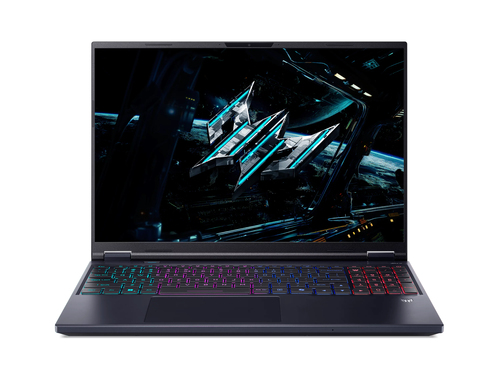

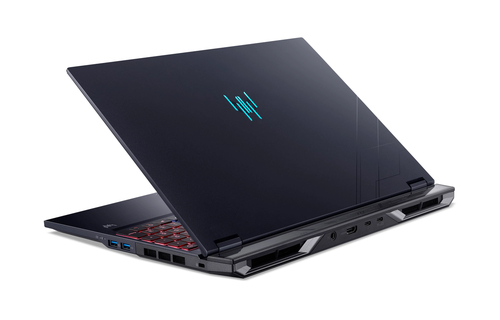

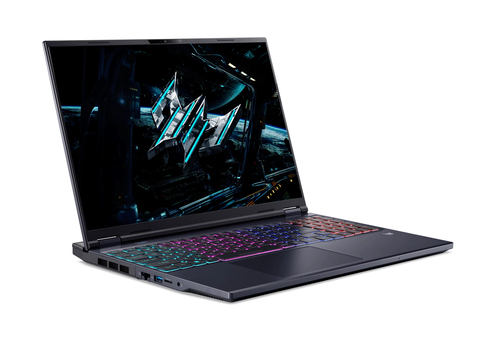

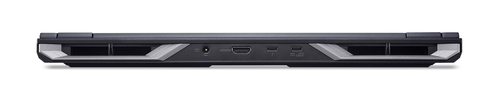

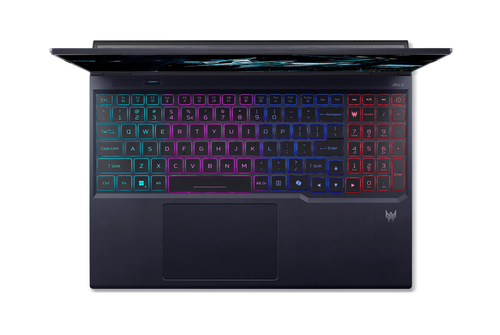

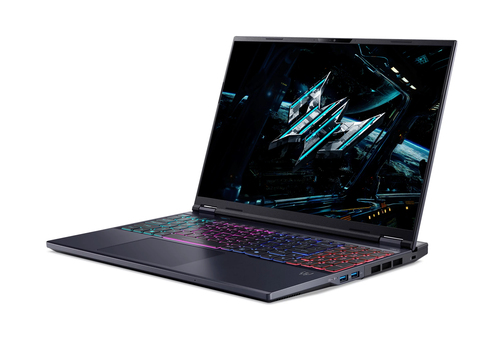

Acer Predator Helios Neo 16 PHN16-73-9915 Intel Core Ultra 9 275HX Laptop

Predator Helios Neo 16 PHN16-73-9915 Intel Core Ultra 9 275HX Laptop

40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Ti Wi-Fi 6E (802

Model PHN16-73-9915Part no. NH.QX2EG.002EAN 4711474410016

118 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 9
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 5070 Ti

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 5070 Ti

Brand: Acer
Category: Laptop
Model: PHN16-73-9915
Part number: NH.QX2EG.002
EAN / UPC: 4711474410016
Also known as: Acer Predator Helios Neo 16 PHN16-73-9915 Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Ti Wi-Fi 6E (802

Specifications

118 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Display technology marketing name	ComfortView
Panel type	IPS
Native aspect ratio	16:10
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	275HX
Processor cores	24
Processor threads	24
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.7 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Maximum turbo power	160 W
Processor base power	55 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5070 Ti
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
Ethernet LAN	Yes
Ethernet LAN data rates	5000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM870

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	4-zone RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Battery life (max)	5 h

Power

Specification	Value
AC adapter power	330 W
DC-in jack	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (max)	100 W
USB Type-C required charging power (min)	90 W
USB Power Delivery (USB PD)	Yes
USB charging voltage	5 V
USB charging current	3 A

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	356.8 mm
Depth	275.5 mm
Height	26.8 mm

Packaging content

Specification	Value
AC adapter included	Yes
