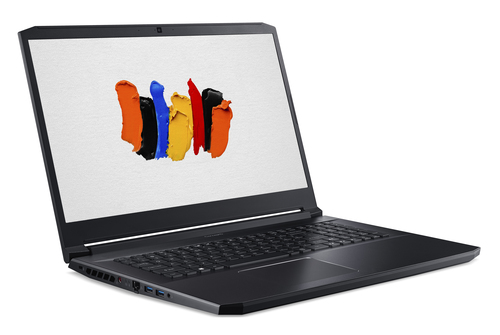

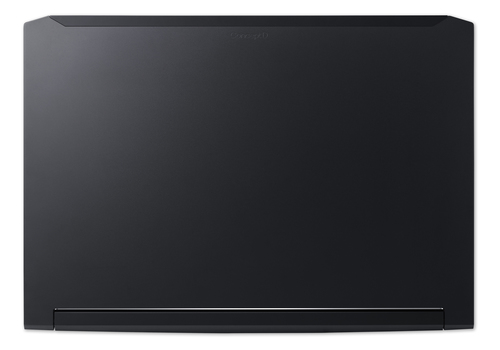

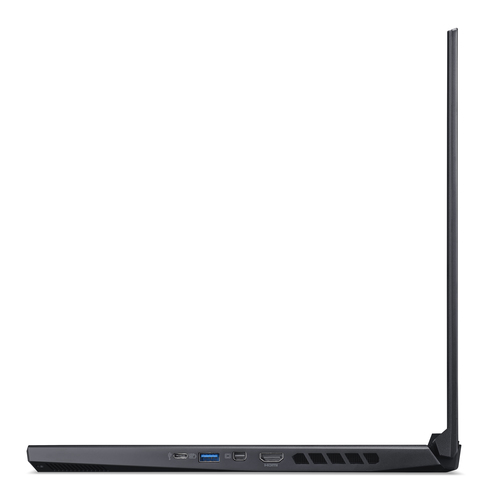

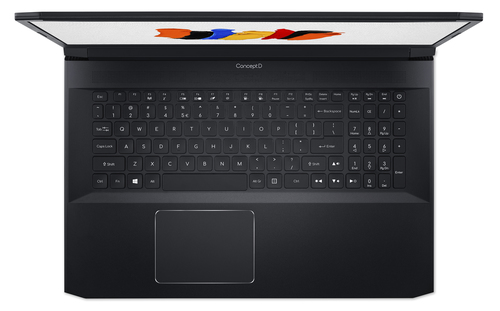

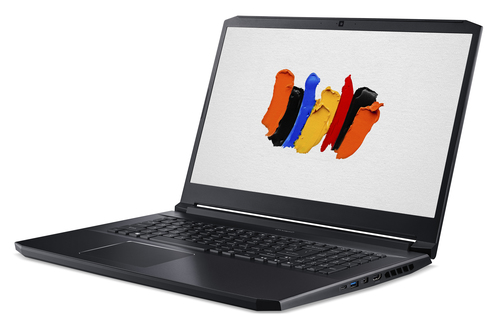

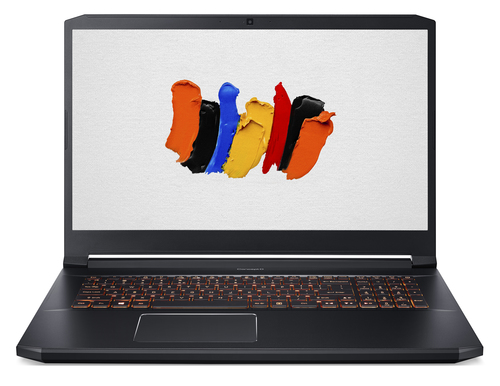

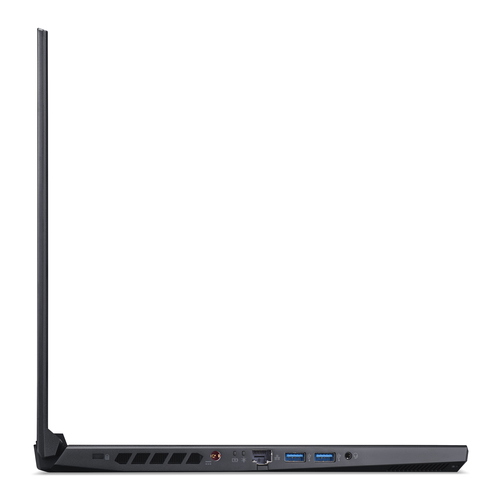

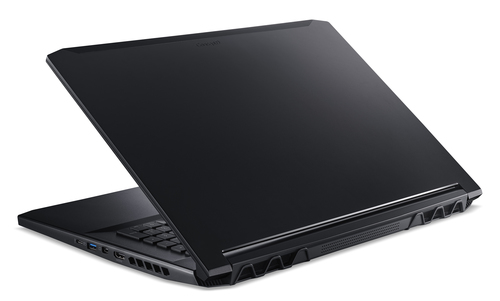

Acer ConceptD CN517-71P-70UK Intel® Core™ i7 i7-9750H Laptop

ConceptD CN517-71P-70UK Intel® Core™ i7 i7-9750H Laptop

43.9 cm (17.3") 4K Ultra HD 32 GB DDR4-SDRAM 2 TB SSD NVIDIA Quadro RTX 3000 Wi-Fi 6 (802.11ax) Win

Model CN517-71P-70UKPart no. NX.C55SJ.001

103 specifications Checked today

Display43.9 cm (17.3")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage2 TB
GraphicsNVIDIA Quadro RTX 3000

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA Quadro RTX 3000

Brand: Acer
Category: Laptop
Model: CN517-71P-70UK
Part number: NX.C55SJ.001
Also known as: Acer ConceptD CN517-71P-70UK Intel® Core™ i7 i7-9750H Laptop 43.9 cm (17.3") 4K Ultra HD 32 GB DDR4-SDRAM 2 TB SSD NVIDIA Quadro RTX 3000 Wi-Fi 6 (802.11ax) Win

Specifications

103 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	3840 x 2160 pixels
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	9th gen Intel® Core™ i7
Processor model	i7-9750H
Processor cores	6
Processor boost frequency	4.5 GHz
Processor frequency	2.6 GHz
Processor cache	12 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Total SSDs capacity	1 TB
Number of SSDs installed	2
SSD capacity	512 GB
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA Quadro RTX 3000
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel® UHD Graphics 630

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Mini DisplayPorts quantity	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	3815 mAh
Battery capacity	58.7 Wh
Battery life (max)	6 h

Power

Specification	Value
AC adapter power	180 W

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Password protection	Yes
Password protection type	HDD, Supervisor, User

Weight & dimensions

Specification	Value
Weight	2.93 kg
Width	403.5 mm
Depth	280 mm
Height	24.7 mm

Packaging content

Specification	Value
Cables included	AC
