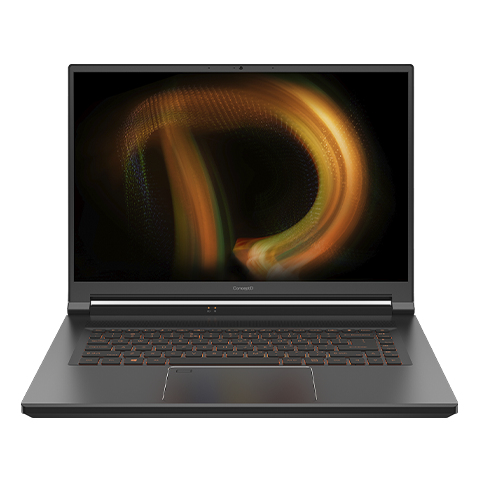

Acer ConceptD CN516-72P-7477 Intel® Core™ i7 i7-11800H Laptop

ConceptD CN516-72P-7477 Intel® Core™ i7 i7-11800H Laptop

40.6 cm (16") WQXGA+ 16 GB DDR4-SDRAM 512 GB SSD NVIDIA RTX A3000 Wi-Fi 6 (802.11ax) Windows 11 Pr

Model CN516-72P-7477Part no. NX.C6AEG.004EAN 4710886731030

111 specifications Checked today

Display40.6 cm (16")
Resolution3072 x 1920 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA RTX A3000

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 3072 x 1920 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA RTX A3000

Brand: Acer
Category: Laptop
Model: CN516-72P-7477
Part number: NX.C6AEG.004
EAN / UPC: 4710886731030
Also known as: Acer ConceptD CN516-72P-7477 Intel® Core™ i7 i7-11800H Laptop 40.6 cm (16") WQXGA+ 16 GB DDR4-SDRAM 512 GB SSD NVIDIA RTX A3000 Wi-Fi 6 (802.11ax) Windows 11 Pr

Specifications

111 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Magnesium
Market positioning	Work
Original brand name	Acer

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	3072 x 1920 pixels
Touchscreen	No
HD type	WQXGA+
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Matt
Colour gamut	100%
Display diagonal (metric)	40.6 cm
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-11800H
Processor cores	8
Processor boost frequency	4.6 GHz
Processor cache	24 MB
Processor cache type	Smart Cache

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX A3000
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card 4K support	Yes
On-board graphics card 6K support	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wireless-AX 1650i
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Thunderbolt technology	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM570

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	Amber
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Norton Internet Security
Bundled software	ConceptD Palette, Acer Care Center

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	6578 mAh
Battery capacity	99.98 Wh
Battery life (max)	11 h
Removable battery	Yes

Power

Specification	Value
AC adapter power	230 W

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	2.45 kg
Width	358.5 mm
Depth	262.4 mm
Height	19.9 mm

Packaging data

Specification	Value
Package width	558 mm
Package depth	86 mm
Package height	377 mm
Package weight	5.27 kg

Packaging content

Specification	Value
Cables included	AC
