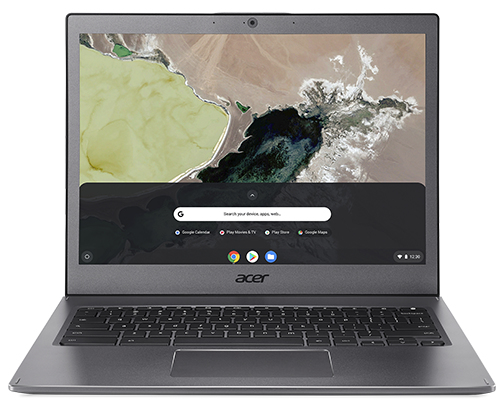

CB713-1W-72CZ Intel® Core™ i7 i7-8650U Chromebook
34.3 cm (13.5") Quad HD 16 GB LPDDR3-SDRAM 128 GB eMMC Wi-Fi 5 (802.11ac) ChromeOS Grey
Model CB713-1W-72CZPart no. NX.H1WAA.018EAN 193199557681
130 specifications Checked today
- Display34.3 cm (13.5")
- Resolution2256 x 1504 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage128 GB
- GraphicsNot available
Overview
- Display
- 34.3 cm (13.5")
- Resolution
- 2256 x 1504 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 128 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- Laptop
- Model
- CB713-1W-72CZ
- Part number
- NX.H1WAA.018
- EAN / UPC
- 193199557681
- Also known as
- Acer CB713-1W-72CZ Intel® Core™ i7 i7-8650U Chromebook 34.3 cm (13.5") Quad HD 16 GB LPDDR3-SDRAM 128 GB eMMC Wi-Fi 5 (802.11ac) ChromeOS Grey
Specifications
130 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Chromebook |
| Product colour | Grey |
| Form factor | Clamshell |
| Housing material | Aluminium |
Display
| Specification | Value |
|---|---|
| Display diagonal | 34.3 cm (13.5") |
| Display resolution | 2256 x 1504 pixels |
| Touchscreen | No |
| HD type | Quad HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 3:2 |
| Dual-screen | No |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor model | i7-8650U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 1.9 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2.1 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | eMMC |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | ChromeOS |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 124968 |
| Processor code | SR3L8 |
| Processor package size | 42 X 24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery capacity | 4670 mAh |
| Battery capacity | 54 Wh |
| Battery life (max) | 10 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| USB Type-C charging port | Yes |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.4 kg |
| Width | 310 mm |
| Depth | 246.3 mm |
| Height | 17.7 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
