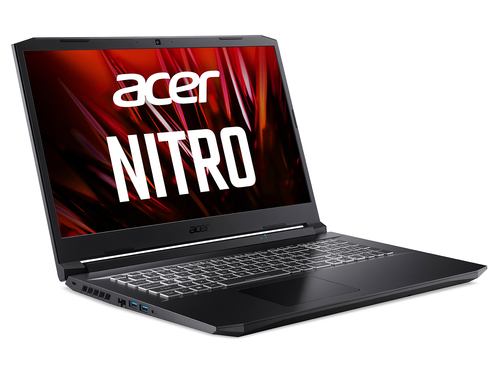

Acer Nitro 5 AN517-54

Nitro 5 AN517-54

17.3 inch Gaming Laptop - (Intel Core i7-11800H, 8GB, 512GB SSD, NVIDIA RTX 3060, QHD 165Hz, Windows 10, Black)

Model AN517-54-77KFPart no. NH.QC6EK.009EAN 4710886536925

95 specifications Checked today

Display43.9 cm (17.3")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3060

Brand: Acer
Category: Laptop
Model: AN517-54-77KF
Part number: NH.QC6EK.009
EAN / UPC: 4710886536925
Also known as: Acer Nitro 5 AN517-54 17.3 inch Gaming Laptop - (Intel Core i7-11800H, 8GB, 512GB SSD, NVIDIA RTX 3060, QHD 165Hz, Windows 10, Black)

Specifications

95 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Shale Black
Form factor	Clamshell
Market positioning	Gaming
Country of origin	China

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Quad HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Maximum refresh rate	165 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-11800H
Processor cores	8
Processor boost frequency	4.6 GHz
Processor frequency	2.3 GHz
Processor cache	24 MB
Processor cache type	Smart Cache

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6X
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wireless-AX 1650i
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad

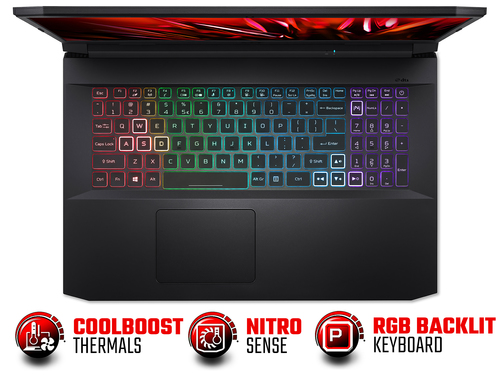

Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard layout	QWERTY
Keyboard language	UK English

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	57.5 Wh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	180 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	403.5 mm
Depth	280 mm
Height	24.9 mm

Packaging data

Specification	Value
Package width	87 mm
Package depth	556 mm
Package height	349 mm
Package weight	4.11 kg

Packaging content

Specification	Value
Cables included	AC
