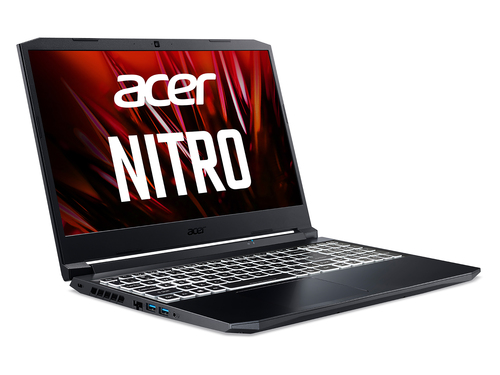

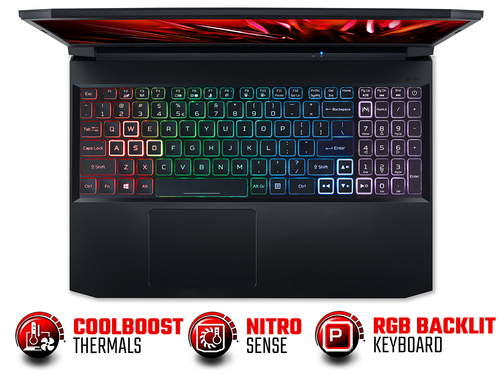

Acer Nitro 5 5 AN515-45 - (AMD Ryzen 7 5800H

Nitro 5 5 AN515-45 - (AMD Ryzen 7 5800H

8 GB, 512GB PCIe NVMe SSD, NVIDIA GeForce RTX 3060 6G, 15.6" FHD IPS 144Hz Display, Windows 10, Black)

Model AN515-45-R9DMPart no. NH.QBCEK.001EAN 4710886367079

99 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 7
Memory8 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

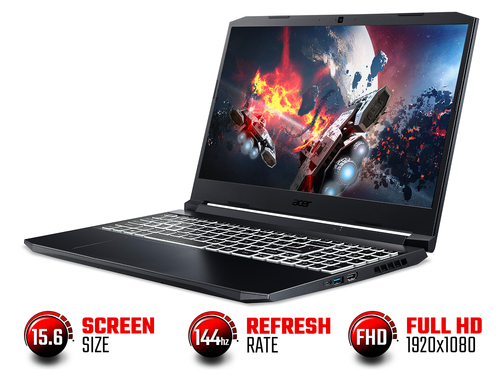

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 7
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3060

Brand: Acer
Category: Laptop
Model: AN515-45-R9DM
Part number: NH.QBCEK.001
EAN / UPC: 4710886367079
Also known as: Acer Nitro 5 5 AN515-45 - (AMD Ryzen 7 5800H, 8 GB, 512GB PCIe NVMe SSD, NVIDIA GeForce RTX 3060 6G, 15.6" FHD IPS 144Hz Display, Windows 10, Black)

Specifications

99 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 5000 Series
Processor model	5800H
Processor cores	8
Processor boost frequency	4.4 GHz
Processor frequency	3.2 GHz
Processor cache	16 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	M.2, NVMe, PCI Express 3.0
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA

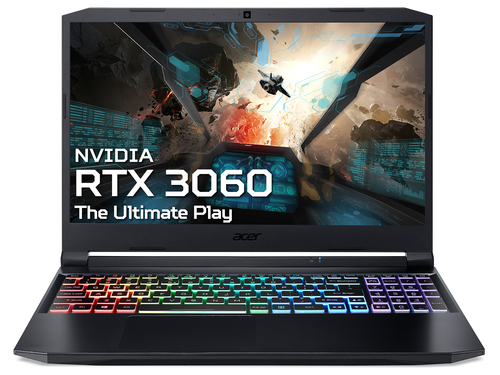

Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
On-board graphics card model	AMD Radeon

Audio

Specification	Value
Audio system	DTS:X Ultra
Number of built-in speakers	2
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

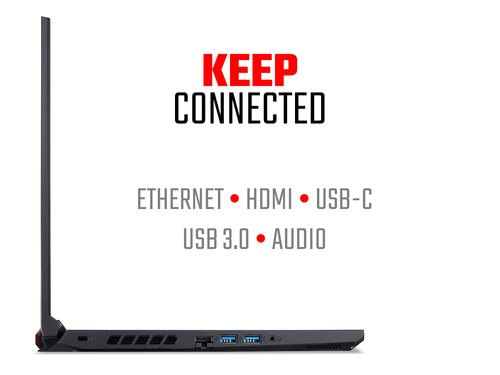

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard layout	QWERTY
Keyboard language	English

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	57.5 Wh
Battery life (max)	10 h

Power

Specification	Value
AC adapter power	180 W

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes
Password protection type	HDD, Supervisor, User

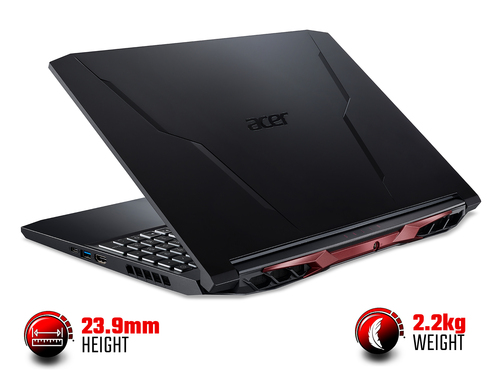

Weight & dimensions

Specification	Value
Weight	2.2 kg
Width	363.4 mm
Depth	255 mm
Height	23.9 mm

Packaging data

Specification	Value
Package width	70 mm
Package depth	543 mm
Package height	316 mm
Package weight	3.61 kg

Packaging content

Specification	Value
Cables included	AC
